SLVUAY5A October 2014 – July 2021 TPS563219A
4.6 Load Transient Response

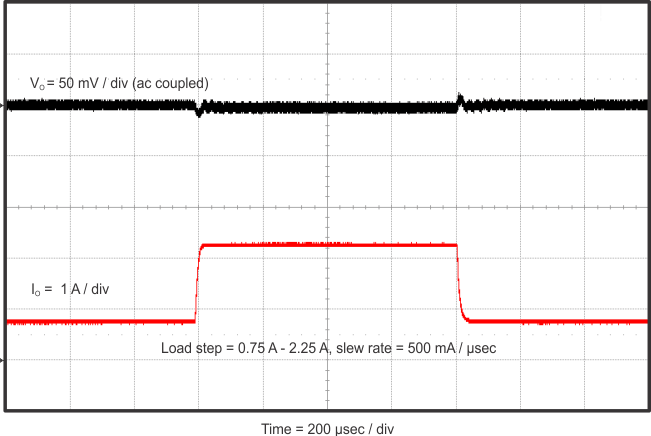

The TPS563219AEVM-663 response to load transient is shown in Figure 4-6. The current steps and slew rates are indicated in the figures. Total peak-to-peak voltage variation is as shown.
Figure 4-6 TPS563219AEVM-663 Load Transient Response, 25% to 75% Load Step
