SLVUAY2A November 2016 – July 2021 TPS562210A
4.9 Start-Up

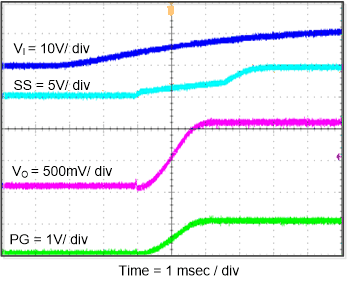

The TPS562210AEVM-663 start-up waveform relative to VIN is shown in Figure 4-11. Load = 1 Ω resistive.

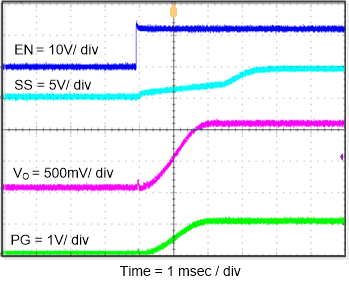

Figure 4-11 TPS562210AEVM-663 Start-Up Relative to VINThe TPS562210AEVM-663 start-up waveform relative to enable (EN) is shown in Figure 4-12. Load = 1 Ω resistive.
Figure 4-12 TPS562210AEVM-663 Start-Up Relative to EN
