SLVUAY2A November 2016 – July 2021 TPS562210A
4.7 Output Voltage Ripple
The TPS562210AEVM-663 output voltage ripple is shown in Figure 4-7, Figure 4-8, and Figure 4-9. The output currents are as indicated.

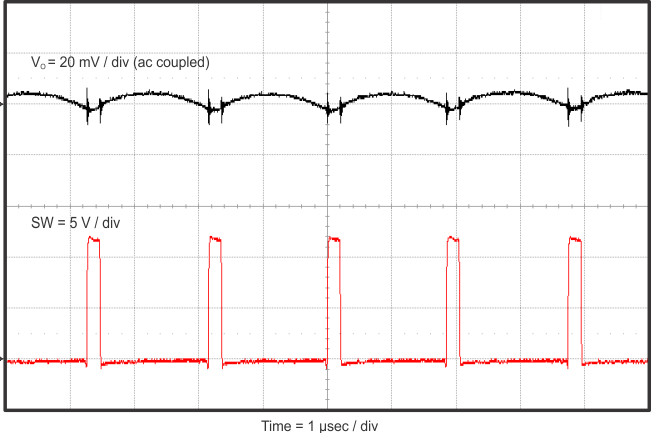

Figure 4-7 TPS562210AEVM-663 Output Voltage Ripple, IOUT = 2 A

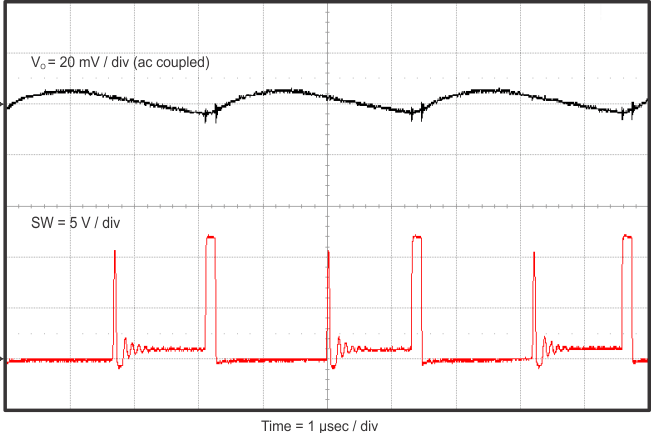

Figure 4-8 TPS562210AEVM-663 Output Voltage Ripple, IOUT = 200 mA

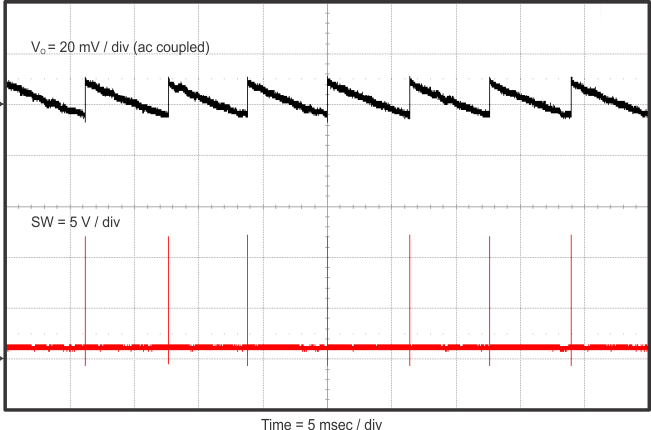

Figure 4-9 TPS562210AEVM-663 Output Voltage Ripple, IOUT = 0 mA
