SLVUAF6A June 2015 – May 2021 TPS62745
4 Board Layout
This section provides the TPS62745EVM-622 board layout and illustrations. The gerbers are available on the EVM product page: TPS62745EVM-622.

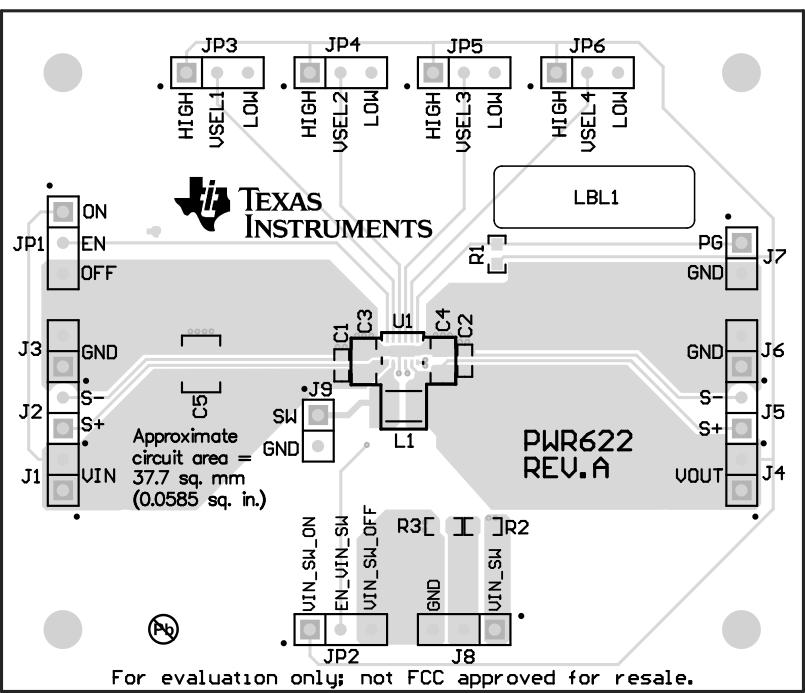

Figure 4-1 Assembly
Layer

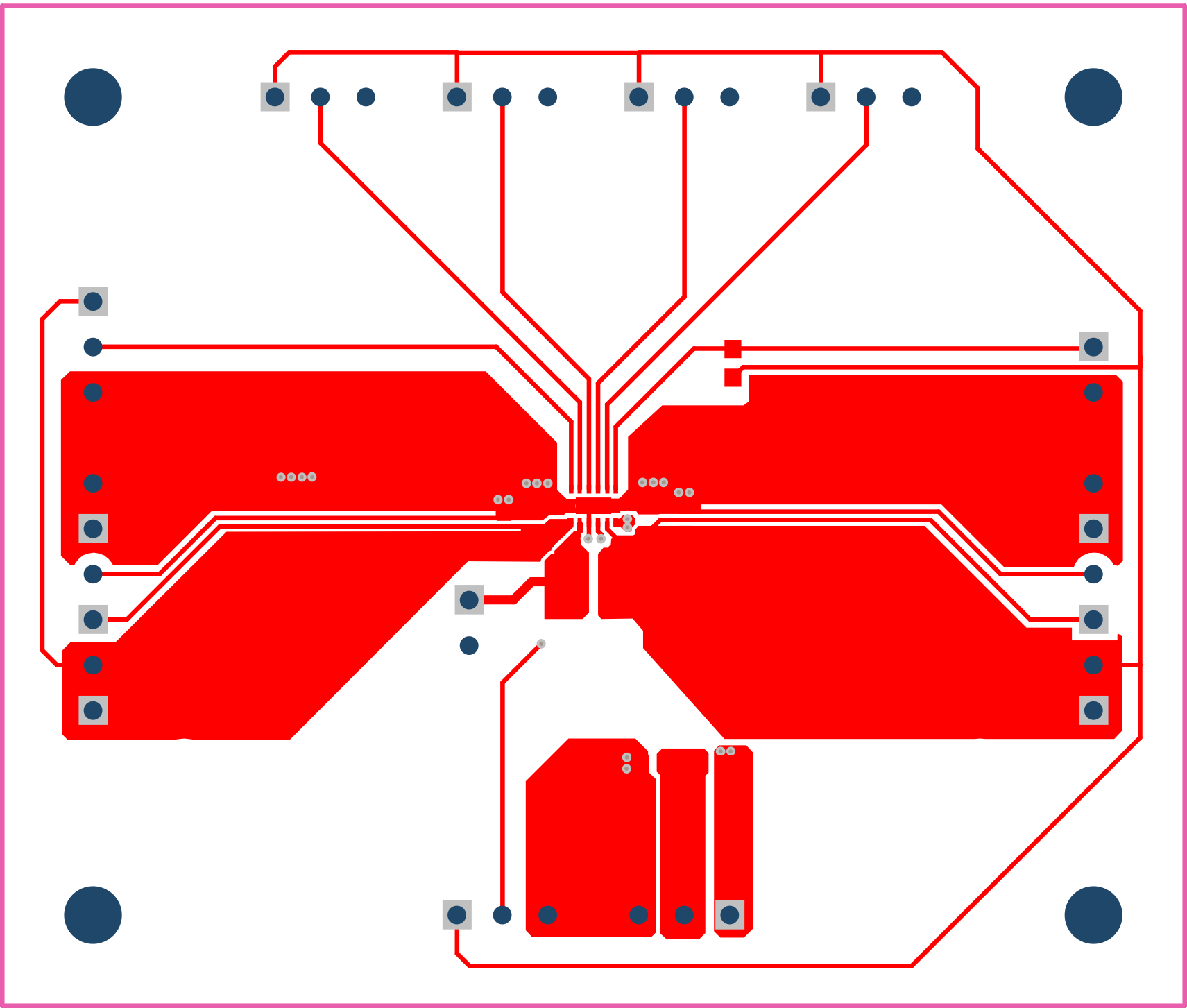

Figure 4-2 Top
Layer

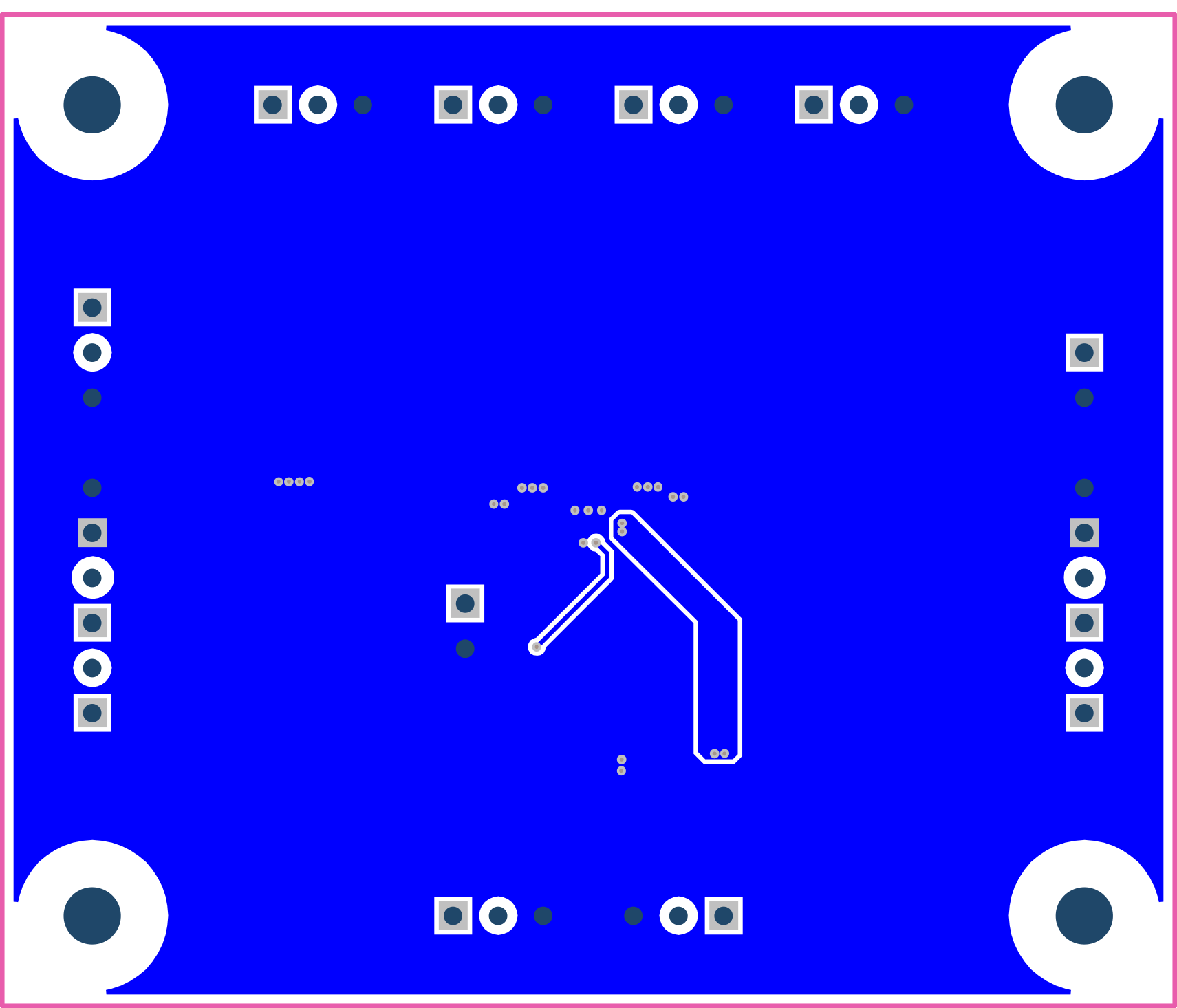

Figure 4-3 Bottom
Layer
