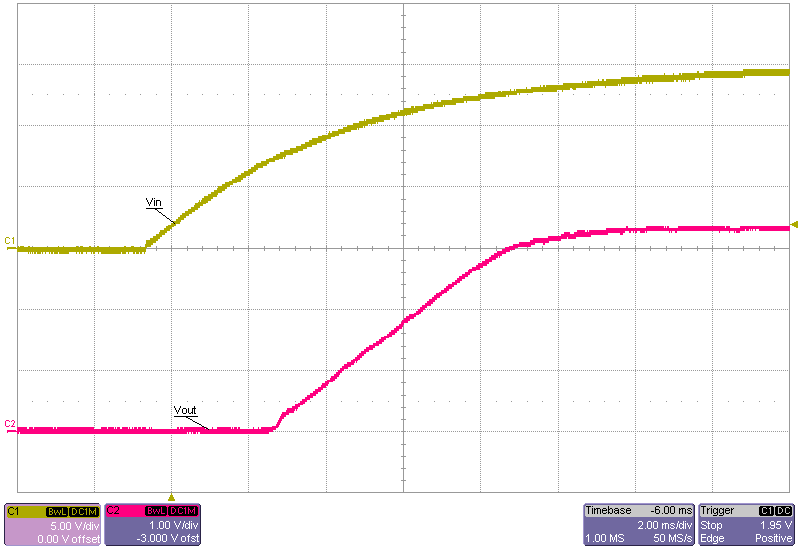

The start-up waveforms are shown in Figure 2-9 and Figure 2-10. In Figure 2-9, the top trace shows V_IN, and the bottom trace shows V_OUT. In Figure 2-10 , the top trace shows EN (enable) whereas the bottom trace shows V_OUT. In Figure 2-10, the input voltage is initially applied and the output is inhibited by using a jumper at J2 to tie EN to GND. When the jumper is removed, EN is released. When the EN voltage reaches the enable-threshold voltage of 1.25 V, the start-up sequence begins and the internal reference voltage begins to ramp up at the internally set rate toward 0.8 V and the output voltage ramps up to the externally set value of 3.3 V. The input voltage for these plots is 15 V and there is no load.
