2.6 Loop Characteristics
The TPS54231EVM-372 loop-response characteristics are shown in Figure 2-6 . Gain and phase plots are shown for VIN voltage of 15 V. Load current for the measurement is 1 A.

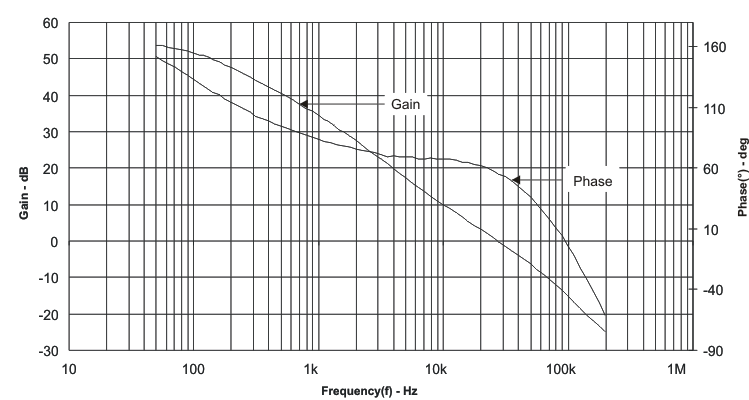

Figure 2-6 TPS54231EVM-372 Loop Response
