SLUUCF9A March 2021 – April 2021 TPS566231 , TPS566238
4.4 Shut-Down
The TPS566231PEVM shut-down waveform relative to EN is shown in Figure 4-2.

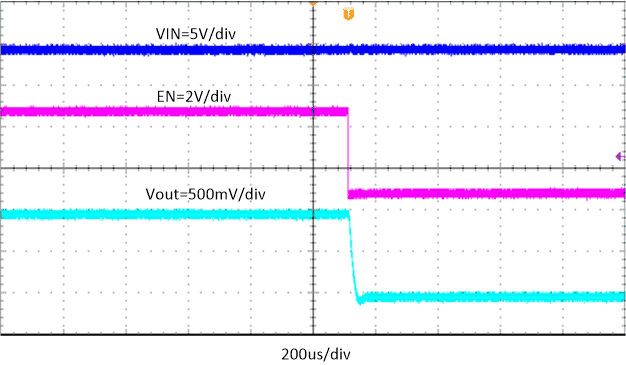

Figure 4-2 Shut-Down Relative to EN, IOUT= 3ASLUUCF9A March 2021 – April 2021 TPS566231 , TPS566238
The TPS566231PEVM shut-down waveform relative to EN is shown in Figure 4-2.
Figure 4-2 Shut-Down Relative to EN, IOUT= 3A
