8 EVM Assembly Drawing and PCB Layout
The following figures show the design of the TPS53515EVM-PWR587 printed circuit board (see Figure 8-1, Figure 8-2, Figure 8-3, Figure 8-4, Figure 8-5, Figure 8-6, Figure 8-7, and Figure 8-8). The EVM has been designed using a six-layer, 2-oz copper-circuit board.

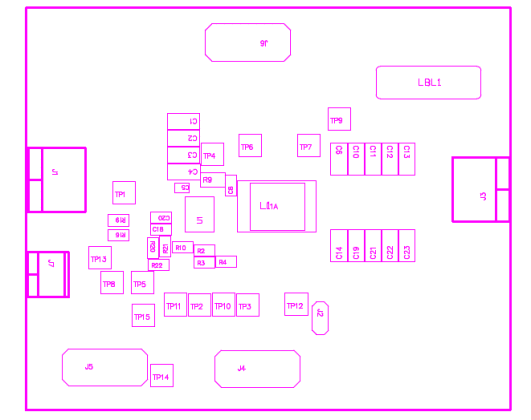

Figure 8-1 TPS53515EVM-587 Top-Layer Assembly Drawing

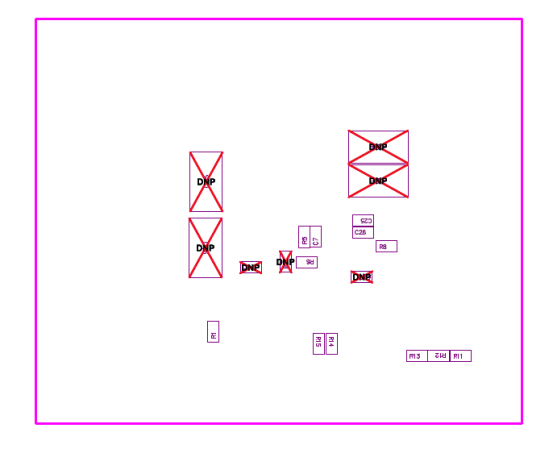

Figure 8-2 TPS53515EVM-587 Bottom-Layer Assembly Drawing

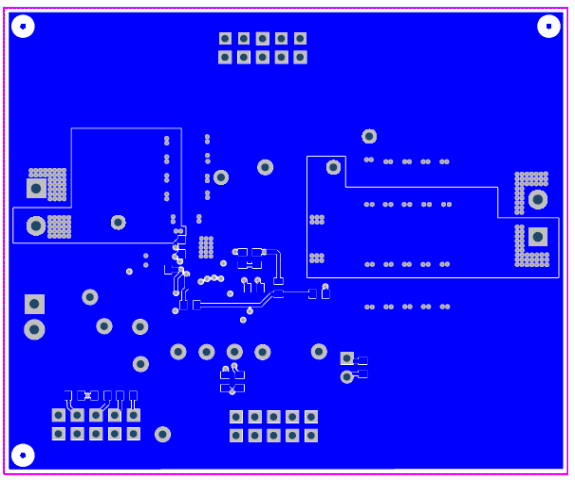

Figure 8-3 TPS53515EVM-587 Top Layer, Copper

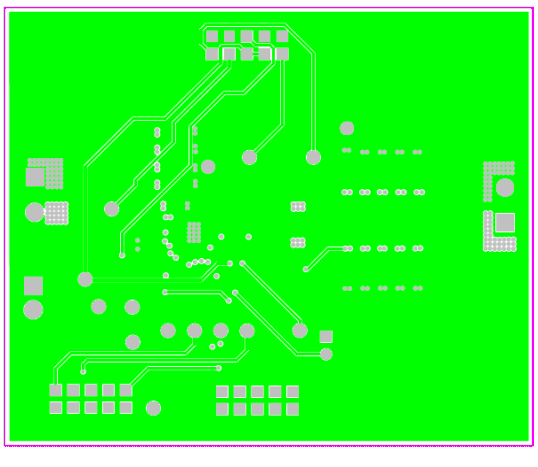

Figure 8-4 TPS53515EVM-587 Layer Two, Copper

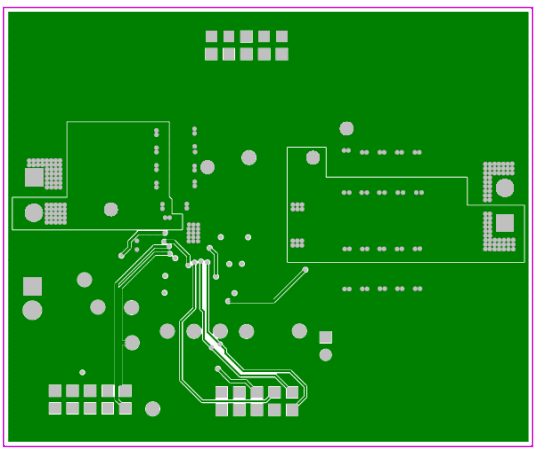

Figure 8-5 TPS53515EVM-587 Layer Three, Copper

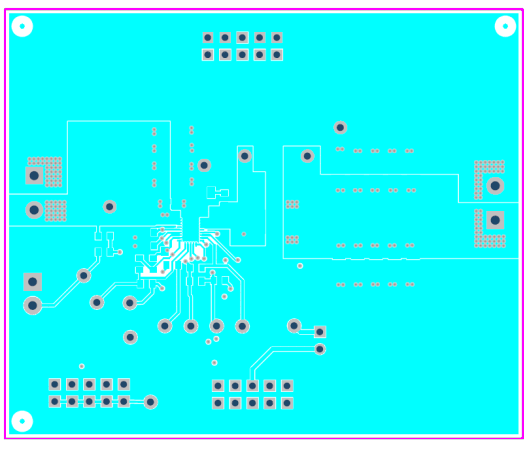

Figure 8-6 TPS53515EVM-587 Layer Four, Copper

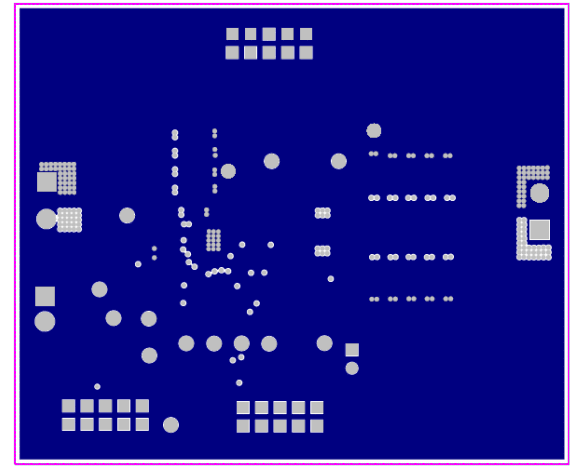

Figure 8-7 TPS53515EVM-587 Layer Five, Copper

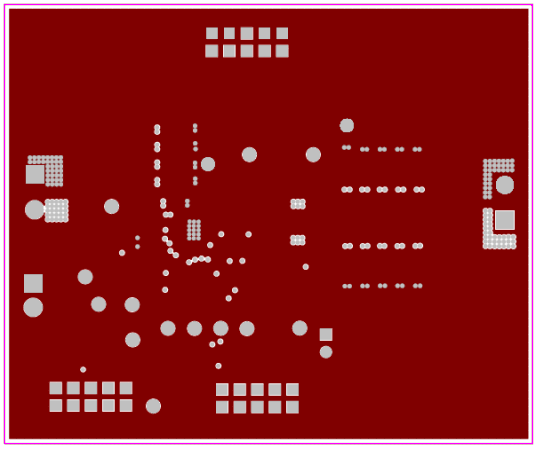

Figure 8-8 TPS53515EVM-587 Bottom Layer, Copper
