SFFS832 September 2024 UCC27301A-Q1 , UCC27311A-Q1
1 Overview
This document contains information for the UCC273x1A-Q1 (SOIC and VSON packages) to aid in a functional safety system design. Only the VSON package product supports EN function. Information provided are:
- Functional safety failure in time (FIT) rates of the semiconductor component estimated by the application of industry reliability standards
- Component failure modes and their distribution (FMD) based on the primary function of the device
- Pin failure mode analysis (pin FMA)
Figure 1-1 shows the device functional block diagram for reference.

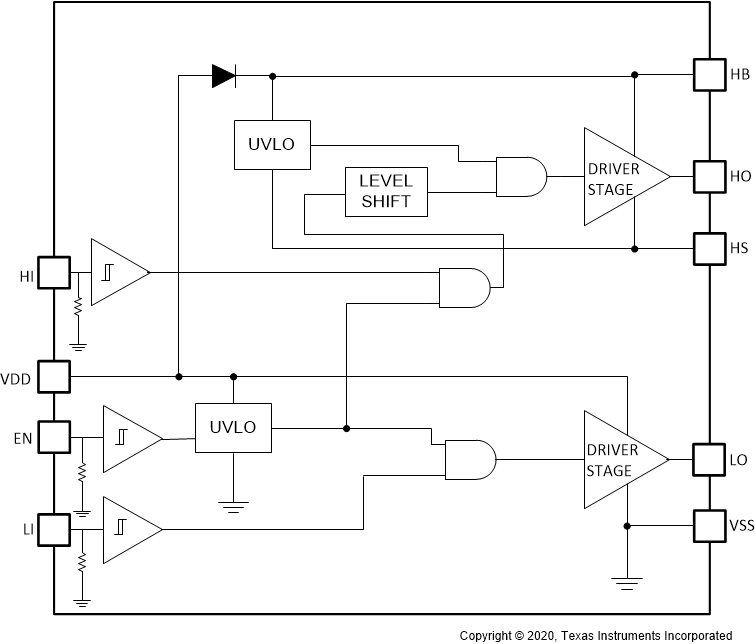

Figure 1-1 Functional Block Diagram of UCC27301A-Q1Only the VSON package product supports EN function.
Figure 1-2 Functional Block Diagram of UCC27311A-Q1The UCC273x1A-Q1 were developed using a quality-managed development process, but were not developed in accordance with the IEC 61508 or ISO 26262 standards.
