SFFS496 June 2022 LMG1025-Q1

4 Pin Failure Mode Analysis (Pin FMA)

This section provides a failure mode analysis (FMA) for the pins of the LMG1025-Q1. The failure modes covered in this document include the typical pin-by-pin failure scenarios:

Pin short-circuited to ground (see Table 4-2)
Pin open-circuited (see Table 4-3)
Pin short-circuited to an adjacent pin (see Table 4-4)
Pin short-circuited to supply (see Table 4-5)

Table 4-2 through Table 4-5 also indicate how these pin conditions can affect the device as per the failure effects classification in Table 4-1.

Table 4-1 TI Classification of Failure Effects

Class	Failure Effects
A	Potential device damage that affects functionality.
B	No device damage, but loss of functionality.
C	No device damage, but performance degradation.
D	No device damage, no impact to functionality or performance.

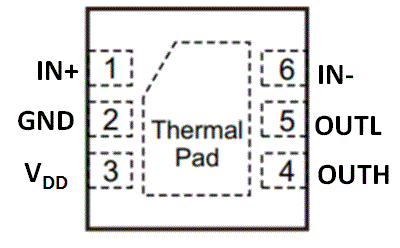

Figure 4-1 shows the LMG1025-Q1 pin diagram. For a detailed description of the device pins, see the Pin Configuration and Functions section in the LMG1025-Q1 data sheet.

Figure 4-1 Pin Diagram

Following are the assumptions of use and the device configuration assumed for the pin FMA in this section:

Adjacent short pin#1 to #6 and pin#3 to #4 are not considered.
Short to supply is to VDD is considered.

Table 4-2 Pin FMA for Device Pins Short-Circuited to Ground

Pin Name	Pin No.	Description of Potential Failure Effect(s)	Failure Effect Class
IN+	1	OUTH/L stuck low.	B
GND	2	No effect.	D
VDD	3	No power is applied to the device.	D
OUTH	4	OUTH/L stuck low. Possible damage to OUTH driver.	A
OUTL	5	OUTH/L stuck low. Possible damage to OUTH driver.	A
IN-	6	OUTH/L follows IN+ command.	B

Table 4-3 Pin FMA for Device Pins Open-Circuited

Pin Name	Pin No.	Description of Potential Failure Effect(s)	Failure Effect Class
IN+	1	OUTH/L stuck low.	B
GND	2	No power is applied to device. OUH/L pulled up to VDD.	B
VDD	3	No power is applied to device.	D
OUTH	4	OUTH is disconnected from the power stage gate.	D
OUTL	5	OUTL is disconnected from the power stage gate.	D
IN-	6	OUTH/L stuck low. IN- is pulled up.	B

Table 4-4 Pin FMA for Device Pins Short-Circuited to Adjacent Pin

Pin Name	Pin No.	Shorted to	Description of Potential Failure Effect(s)	Failure Effect Class
IN+	1	GND	OUTH/L stuck low.	B
GND	2	VDD	No power is applied to device.	D
OUTH	4	OUTL	OUTH/L unknown. Possible damage to OUTH/L driver	A
OUTL	5	IN-	OUTH/L unknown. Possible damage to IN- I/O and OUTL driver.	A

Table 4-5 Pin FMA for Device Pins Short-Circuited to supply

Pin Name	Pin No.	Description of Potential Failure Effect(s)	Failure Effect Class
IN+	1	OUTH/L stuck high.	B
GND	2	No power is applied to device.	D
VDD	3	No effect. Short to same potential.	D
OUTH	4	OUTH/L stuck high. Possible damage to OUTL driver.	A
OUTL	5	OUTH/L stuck high. Possible damage to OUTL driver.	A
IN-	6	OUTH/L stuck low.	B
