SBAU356 September 2020 ADC3660
4.3.1 ADC35XX GUI: Complex Decimation Configuration

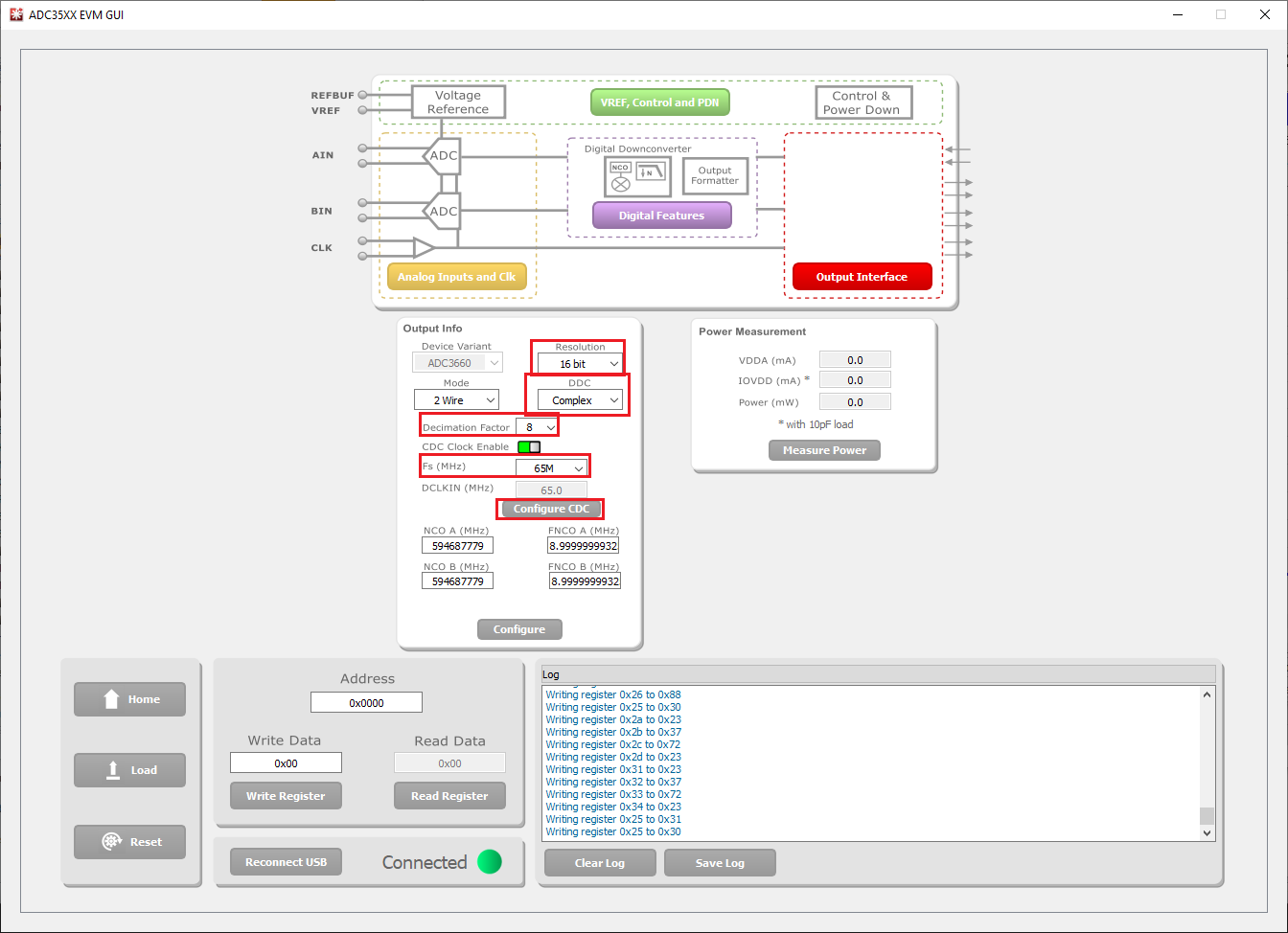

After launching the ADC35xx GUI perform the following steps:
Under Resolution, select 16 bit.
Under DDC, Select Complex.
For Decimation Factor, select 8.
For Fs(MHz), select 65M.
Click Configure CDC
Figure 4-14 ADC35xx GUI settings for Complex

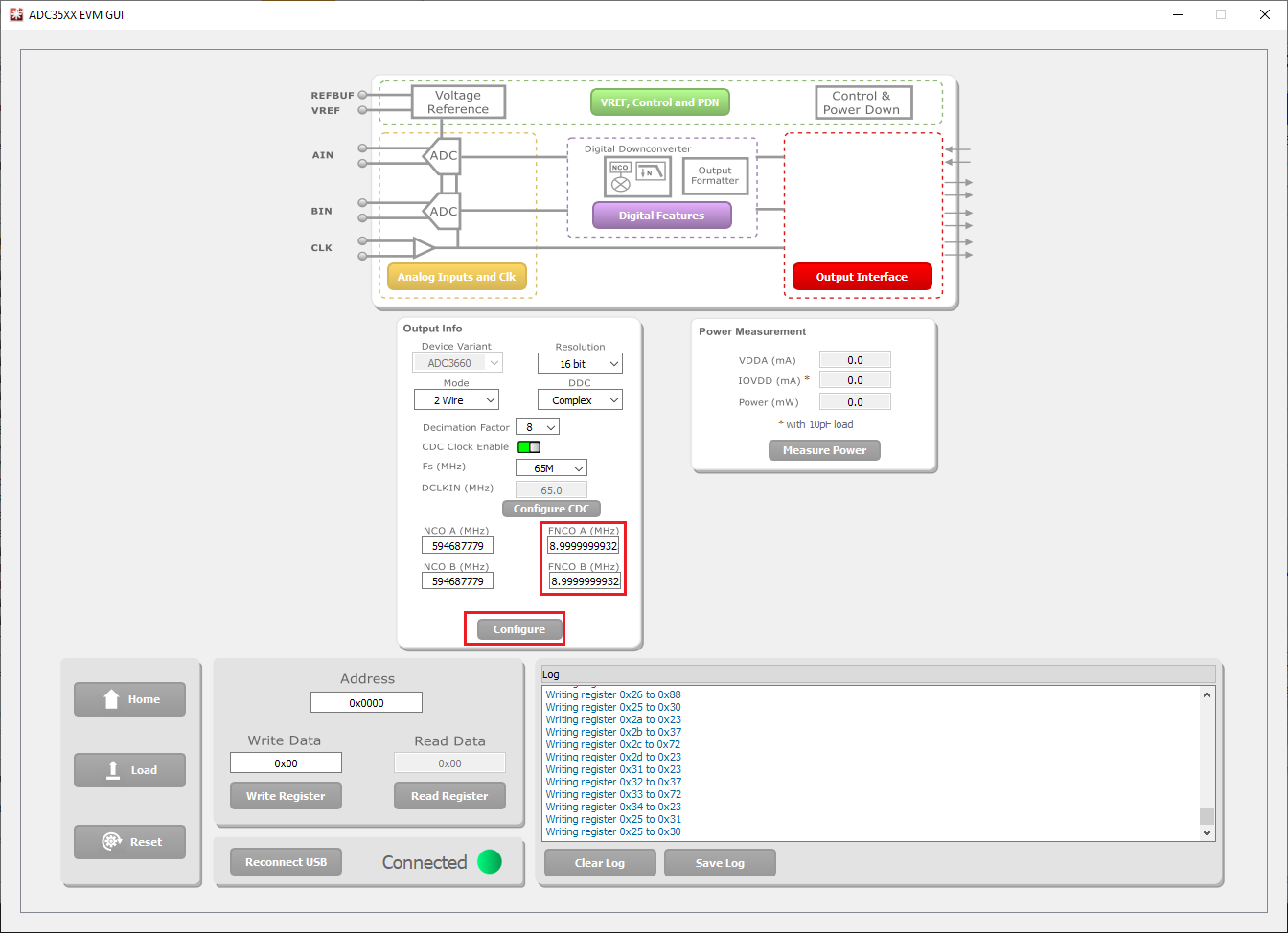

Decimation Mode. Enter 9M as the NCO frequency for NCOA and NCOB
Select Configure
Figure 4-15 ADC35xx GUI NCO settings
