SBAU356 September 2020 ADC3660
5.1 Hardware Modfications
The following hardware modifications must be made in order to operate the ADC3660EVM using an external sampling and data clock .
- DNI R176
- Replace C129 with 0-Ω resistor.

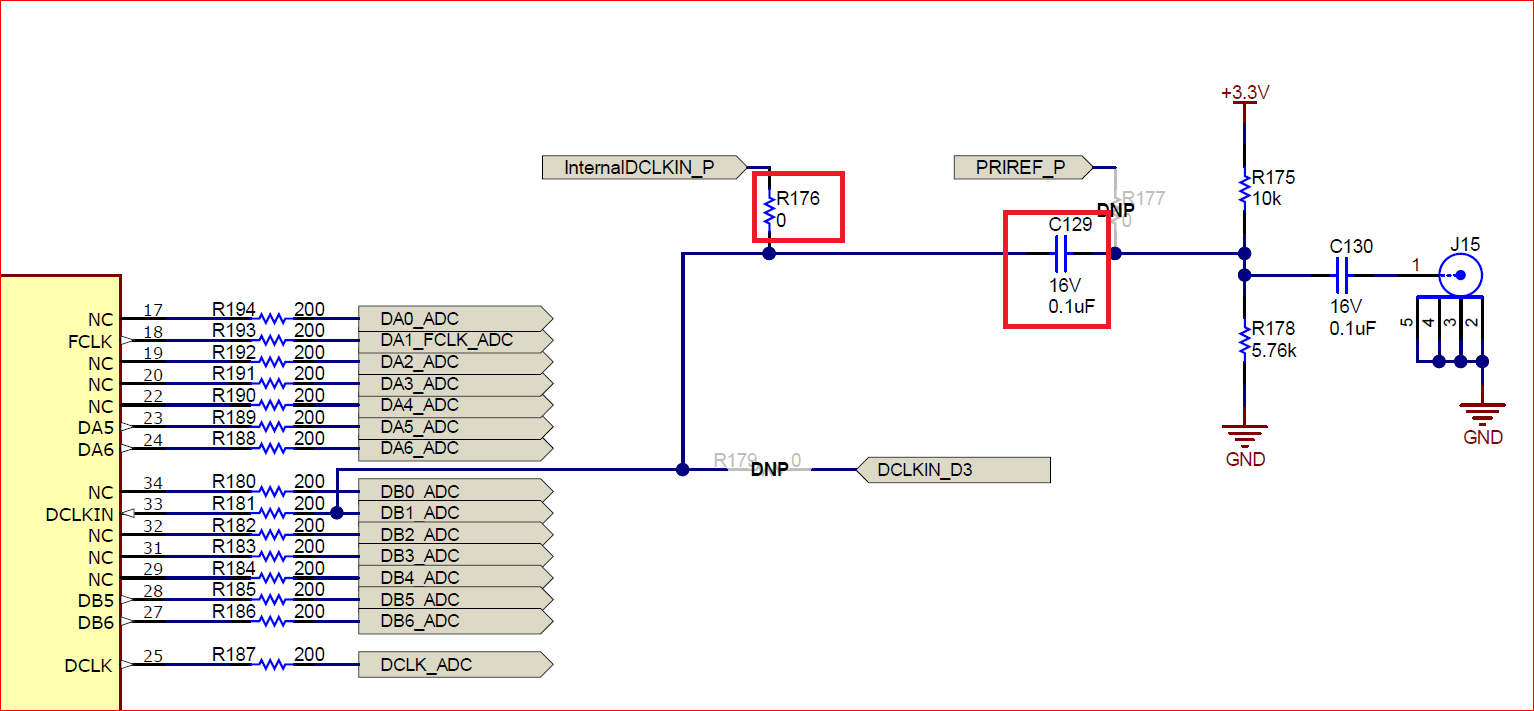

Figure 5-1 ADC3660EVM Schematic Snippet:
DCKLIN. - DNI R32, R40
- Install R36, R37
- Connect sample clock to J8. Connect DCLKIN to J15.

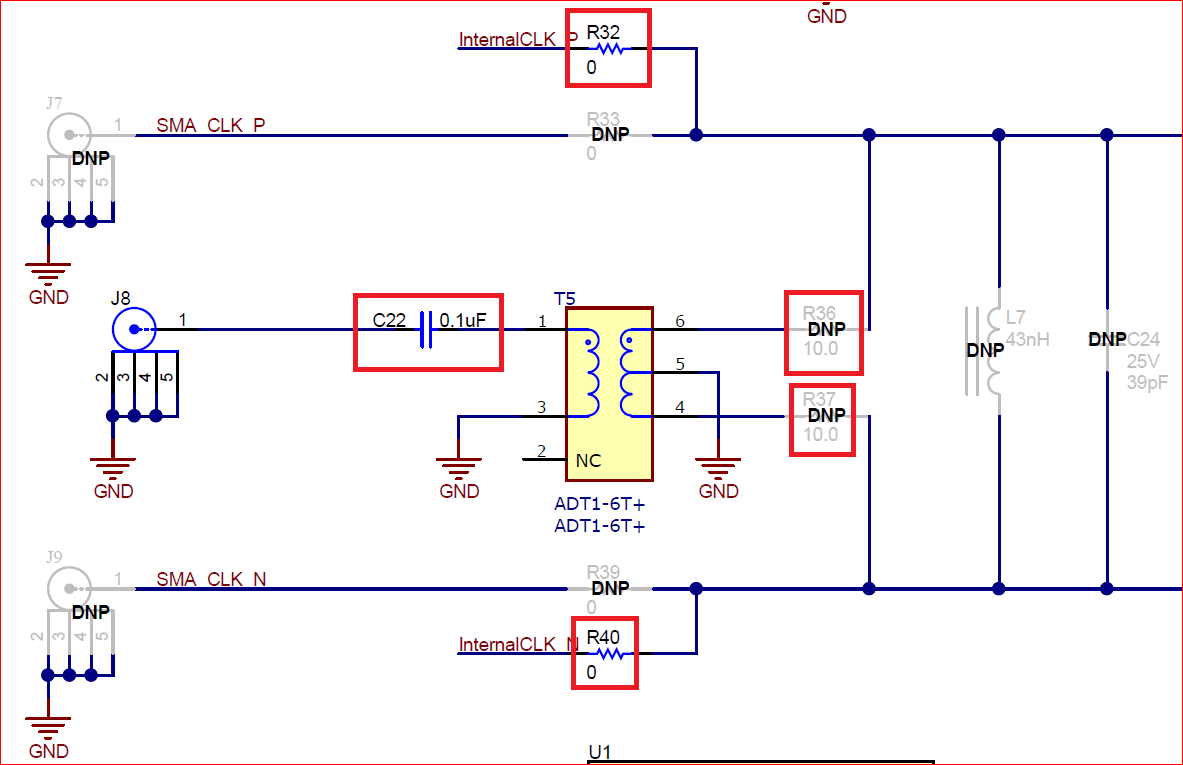

Figure 5-2 ADC3660EVM Schematic Snippet:
Sample Clock.
