DLPU097A November 2019 – October 2025 DLP5534-Q1 , DLPC230-Q1 , DLPC231-Q1 , TPS99000-Q1
1.1 What is in the DLP5534PROJQ1 EVM
The DLP5534PROJQ1 EVM integrates the contents of the DLP5534Q1 electronics EVM with 405 nm illumination and projection optics to produce a complete projector shown in Figure 1-1. The projector utilizes a Luminus CBM-25X-UV 405 nm LED to produce a very bright 405 nm projector. A heatsink and fans are provided for cooling of the LED and electronics.

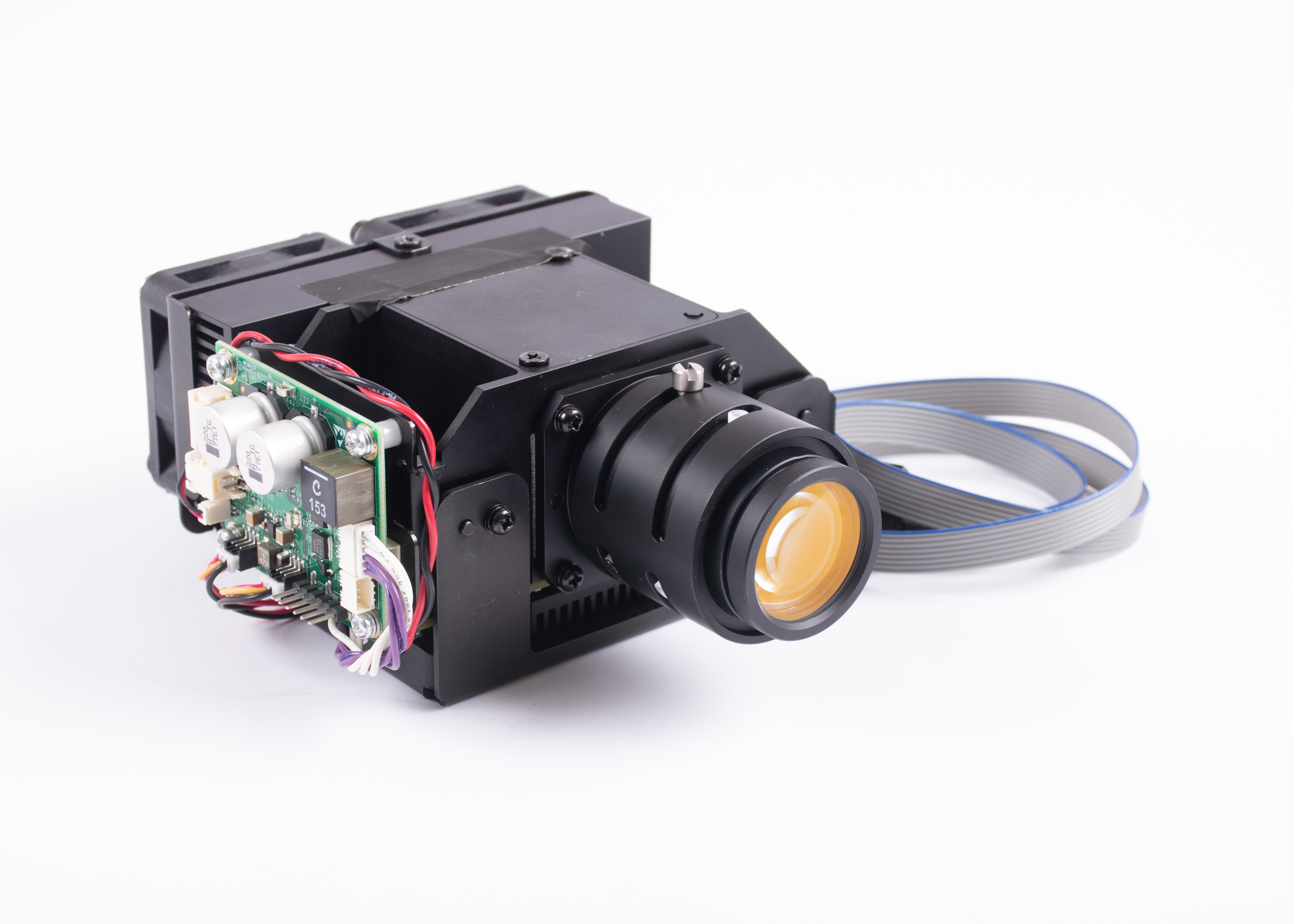

Figure 1-1 DLP5534PROJQ1EVM ProjectorThe DLP5534Q1 electronics EVM that is integrated into the projector consists of a Controller PCB, an Illumination Driver PCB, cables, and a USB to SPI adapter.
