5 Pin Configuration and Functions

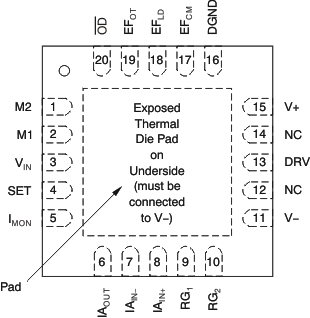

RGW Package
20-Pin VQFN With Thermal Pad
Top View
Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1 | M2 | I | Mode input |
| 2 | M1 | I | Mode input |
| 3 | VIN | I | Noninverting signal input |
| 4 | SET | I | Input for gain setting; inverting input |
| 5 | IMON | O | Current monitor output |
| 6 | IAOUT | O | Instrumentation amplifier signal output |
| 7 | IAIN– | I | Instrumentation amplifier inverting input |
| 8 | IAIN+ | I | Instrumentation amplifier noninverting input |
| 9 | RG1 | I | Instrumentation amplifier gain resistor |
| 10 | RG2 | I | Instrumentation amplifier gain resistor |
| 11 | V– | - | Negative power supply |
| 12 | NC | - | No internal connection |
| 13 | DRV | O | Operational amplifier output |
| 14 | NC | - | No internal connection |
| 15 | V+ | - | Positive power supply |
| 16 | DGND | - | Ground for digital I/O |
| 17 | EFCM | O | Error flag for common mode over range, active low |
| 18 | EFLD | O | Error flag for load error, active low |
| 19 | EFOT | O | Error flag for over temperature, active low |
| 20 | OD | I | Output disable, disabled low |
| Pad | Exposed Pad | - | Exposed thermal pad must be connected to V− |
