6 Parameter Measurement Information
Figure 6-1 ICEX Test Circuit
Figure 6-2 ICEX Test Circuit
Figure 6-3 II(off) Test Circuit
Figure 6-4 II Test Circuit
Figure 6-5 IR Test Circuit
Figure 6-6 VF Test Circuit
A. II is fixed for
measuring VCE(sat), variable for measuring hFE.

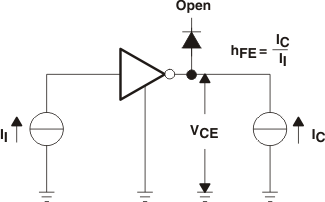

Figure 6-7 hFE, VCE(sat) Test Circuit
Figure 6-8 VI(on) Test Circuit

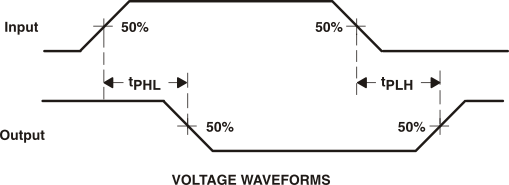

Figure 6-9 Propagation Delay-Time Waveforms
A. The pulse generator has the
following characteristics: PRR = 12.5 kHz, ZO = 50 ?.
B. CL includes probe and
jig capacitance.
C. For testing the ULQ2003A,
VIH = 3 V; for the ULQ2004A, VIH = 8 V.

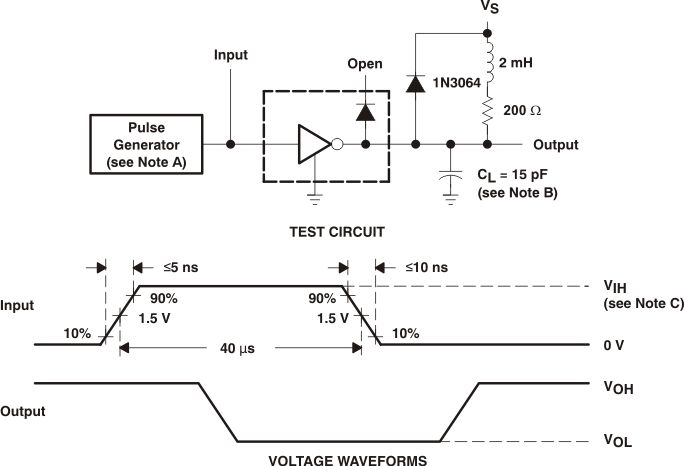

Figure 6-10 Latch-Up
Test Circuit and Voltage Waveforms
