5 Pin Configuration and Functions
Note:
The number of configurable rails is a maximum of ten. The maximum number of configurable GPIs is eight. The maximum number of configurable boolean logic GPOs is ten.

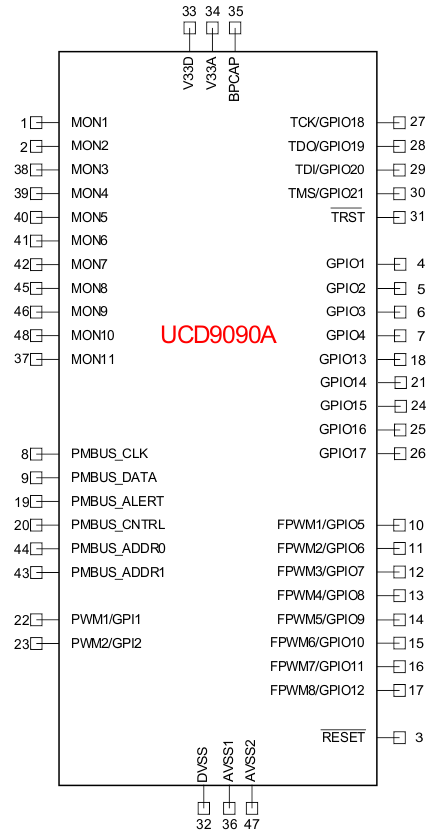

Figure 5-1 Pin Assignments for the VQFN PackageFigure 5-2 RGZ Package, 48-Pin VQFN With Exposed Thermal
Pad (Top View)
Table 5-1 Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| ANALOG MONITOR INPUTS | |||
| MON1 | 1 | I | Analog input (0 V–2.5 V) |
| MON2 | 2 | I | Analog input (0 V–2.5 V) |
| MON3 | 38 | I | Analog input (0 V–2.5 V) |
| MON4 | 39 | I | Analog input (0 V–2.5 V) |
| MON5 | 40 | I | Analog input (0 V–2.5 V) |
| MON6 | 41 | I | Analog input (0 V–2.5 V) |
| MON7 | 42 | I | Analog input (0 V–2.5 V) |
| MON8 | 45 | I | Analog input (0 V–2.5 V) |
| MON9 | 46 | I | Analog input (0 V–2.5 V) |
| MON10 | 48 | I | Analog input (0 V–2.5 V) |
| MON11 | 37 | I | Analog input (0.2 V–2.5 V) |
| GPIO | |||
| GPIO1 | 4 | I/O | General-purpose discrete I/O |
| GPIO2 | 5 | I/O | General-purpose discrete I/O |
| GPIO3 | 6 | I/O | General-purpose discrete I/O |
| GPIO4 | 7 | I/O | General-purpose discrete I/O |
| GPIO13 | 18 | I/O | General-purpose discrete I/O |
| GPIO14 | 21 | I/O | General-purpose discrete I/O |
| GPIO15 | 24 | I/O | General-purpose discrete I/O |
| GPIO16 | 25 | I/O | General-purpose discrete I/O |
| GPIO17 | 26 | I/O | General-purpose discrete I/O |
| PWM OUTPUTS | |||
| FPWM1/GPIO5 | 10 | I/O/PWM | PWM (15.259 kHz to 125 MHz) or GPIO |
| FPWM2/GPIO6 | 11 | I/O/PWM | PWM (15.259 kHz to 125 MHz) or GPIO |
| FPWM3/GPIO7 | 12 | I/O/PWM | PWM (15.259 kHz to 125 MHz) or GPIO |
| FPWM4/GPIO8 | 13 | I/O/PWM | PWM (15.259 kHz to 125 MHz) or GPIO |
| FPWM5/GPIO9 | 14 | I/O/PWM | PWM (15.259 kHz to 125 MHz) or GPIO |
| FPWM6/GPIO10 | 15 | I/O/PWM | PWM (15.259 kHz to 125 MHz) or GPIO |
| FPWM7/GPIO11 | 16 | I/O/PWM | PWM (15.259 kHz to 125 MHz) or GPIO |
| FPWM8/GPIO12 | 17 | I/O/PWM | PWM (15.259 kHz to 125 MHz) or GPIO |
| PWM1/GPI1 | 22 | I/PWM | PWM (0.93 Hz to 7.8125 MHz) or GPI |
| PWM2/GPI2 | 23 | I/PWM | PWM (0.93 Hz to 7.8125 MHz) or GPI |
| PMBus COMM INTERFACE | |||
| PMBus_CLK | 8 | I/O | PMBus clock (must have pullup to 3.3 V) |
| PMBus_DATA | 9 | I/O | PMBus data (must have pullup to 3.3 V) |
| PMBus_ALERT | 19 | O | PMBus alert, active-low, open-drain output (must have pullup to 3.3 V) |
| PMBus_CNTRL | 20 | I | PMBus control |
| PMBus_ADDR0 | 44 | I | PMBus analog address input. Least-significant address bit |
| PMBus_ADDR1 | 43 | I | PMBus analog address input. Most-significant address bit |
| JTAG | |||
| TCK/GPIO18 | 27 | I/O | Test clock or GPIO |
| TDO/GPIO19 | 28 | I/O | Test data out or GPIO |
| TDI/GPIO20 | 29 | I/O | Test data in (tie to Vdd with 10-kΩ resistor) or GPIO |
| TMS/GPIO21 | 30 | I/O | Test mode select (tie to Vdd with 10-kΩ resistor) or GPIO |
| TRST | 31 | I | Test reset – tie to ground with 10-kΩ resistor |
| INPUT POWER AND GROUNDS | |||
| RESET | 3 | — | Active-low device reset input. Hold low for at least 2 μs to reset the device. |
| V33A | 34 | — | Analog 3.3-V supply. Refer to the Section 10.1 section. |
| V33D | 33 | — | Digital core 3.3-V supply. Refer to the Section 10.1 section. |
| BPCap | 35 | — | 1.8-V bypass capacitor. Refer to the Section 10.1 section. |
| AVSS1 | 36 | — | Analog ground |
| AVSS2 | 47 | — | Analog ground |
| DVSS | 32 | — | Digital ground |
| Thermal pad | — | QFN ground pad. Tie to ground plane. | |
