6.6 Timing Requirements: I2C/SMBus/PMBus
TA = –40°C to 85°C, 3 V < VDD < 3.6 V; typical values at TA = 25°C and VCC = 2.5 V (unless otherwise noted)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| FSMB | SMBus/PMBus operating frequency | Slave mode, SMBC 50% duty cycle | 10 | 400 | kHz | |
| FI2C | I2C operating frequency | Slave mode, SCL 50% duty cycle | 10 | 400 | kHz | |
| t(BUF) | Bus free time between start and stop | 1.3 | μs | |||
| t(HD:STA) | Hold time after (repeated) start | 0.6 | μs | |||
| t(SU:STA) | Repeated-start setup time | 0.6 | μs | |||
| t(SU:STO) | Stop setup time | 0.6 | μs | |||
| t(HD:DAT) | Data hold time | Receive mode | 0 | ns | ||
| t(SU:DAT) | Data setup time | 100 | ns | |||
| t(TIMEOUT) | Error signal/detect | See(1) | 35 | ms | ||
| t(LOW) | Clock low period | 1.3 | μs | |||
| t(HIGH) | Clock high period | See (2) | 0.6 | μs | ||
| t(LOW:SEXT) | Cumulative clock low slave extend time | See (3) | 25 | ms | ||
| tf | Clock/data fall time | See (4) | 300 | ns | ||
| tr | Clock/data rise time | See (5) | 300 | ns | ||
| Cb | Total capacitance of one bus line | 400 | pF | |||
(1) The device times out when any clock low exceeds t(TIMEOUT).
(2) t(HIGH), Max, is the minimum bus idle time. SMBC = SMBD = 1 for t > 50 ms causes reset of any transaction that is in progress. This specification is valid when the NC_SMB control bit remains in the default cleared state (CLK[0] = 0).
(3) t(LOW:SEXT) is the cumulative time a slave device is allowed to extend the clock cycles in one message from initial start to the stop.
(4) Fall time tf = 0.9 VDD to (VILMAX – 0.15)
(5) Rise time tr = (VILMAX – 0.15) to (VIHMIN + 0.15)

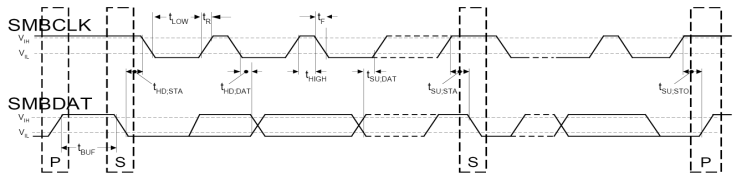

Figure 1. I2C/SMBus Timing Diagram

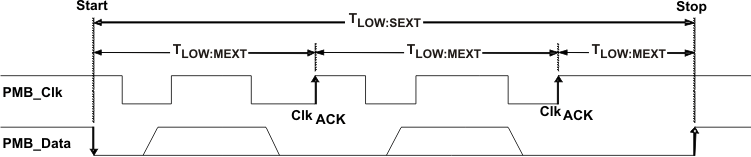

Figure 2. Bus Timing in Extended Mode
