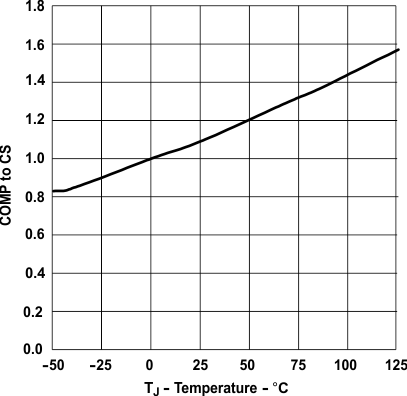

7.6 Typical Characteristics

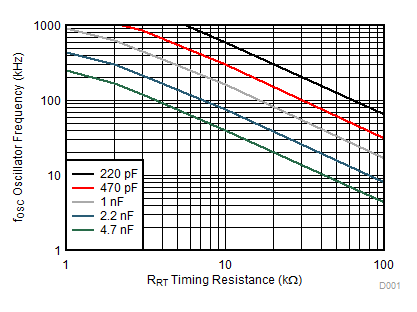

Figure 7-1 Oscillator Frequency vs Timing Resistance and Capacitance

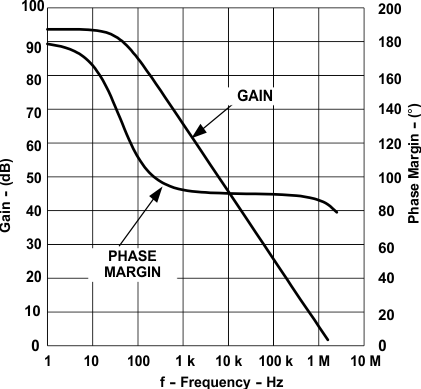

Figure 7-3 Error Amplifier Frequency Response

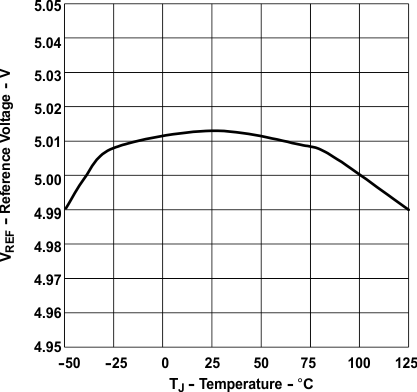

Figure 7-5 Reference Voltage vs Temperature

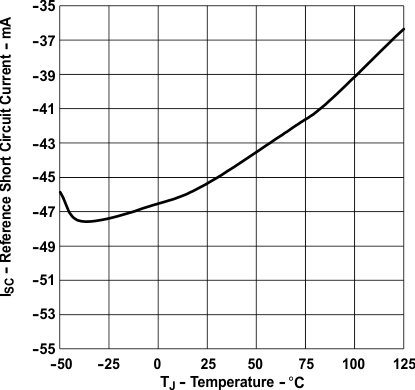

Figure 7-7 Reference Short-Circuit Current vs Temperature

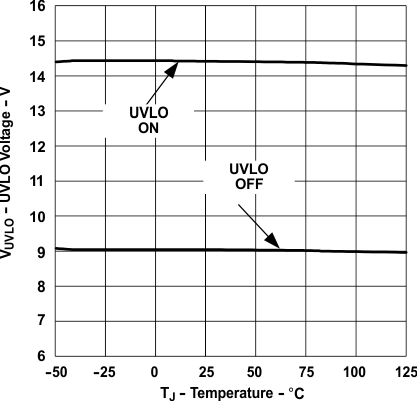

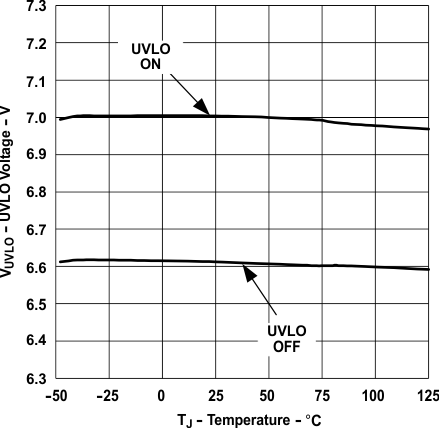

| UCC28C42-Q1 and UCC28C44-Q1 |
| UCC28C40-Q1 and UCC28C41-Q1 |

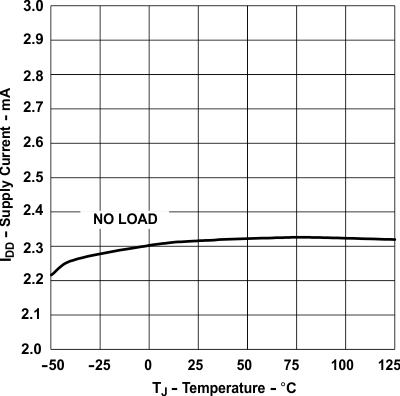

Figure 7-13 Supply Current vs Temperature

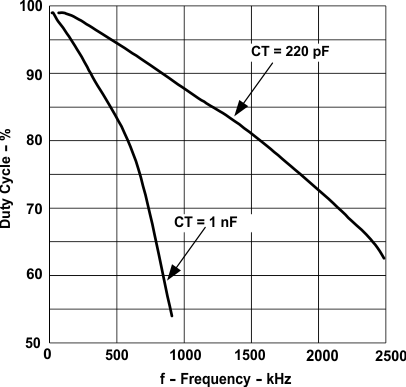

Figure 7-15 Maximum Duty Cycle vs Oscillator Frequency

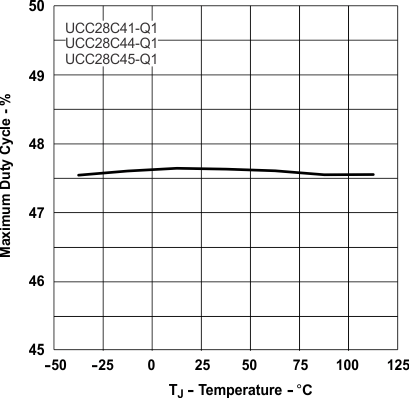

Figure 7-17 Maximum Duty Cycle vs Temperature
Figure 7-19 Current Sense to Output Delay Time vs Temperature

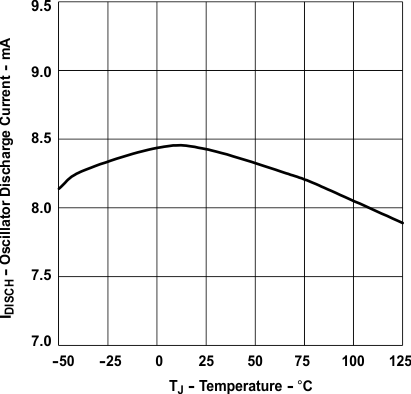

Figure 7-2 Oscillator Discharge Current vs Temperature
| VCS = 0 V |

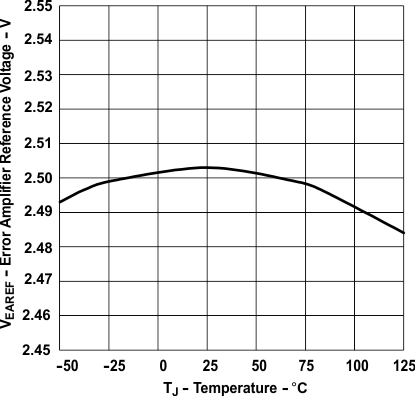

Figure 7-6 Error Amplifier Reference Voltage vs Temperature

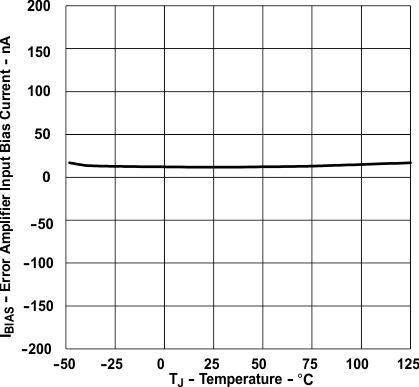

Figure 7-8 Error Amplifier Input Bias Current vs Temperature

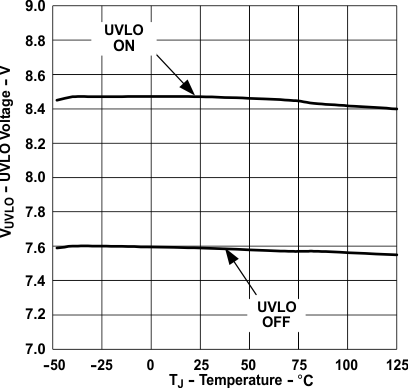

| UCC28C43-Q1 and UCC28C45-Q1 |

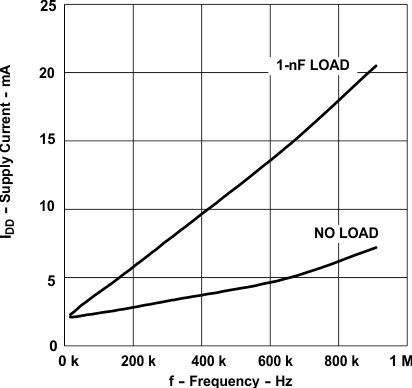

Figure 7-12 Supply Current vs Oscillator Frequency

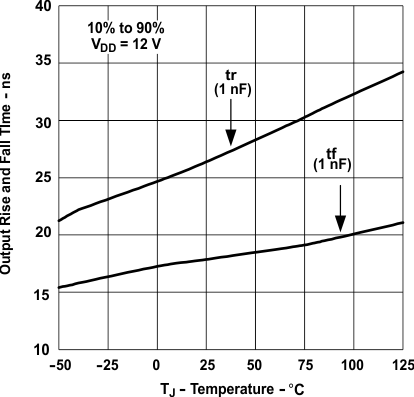

Figure 7-14 Output Rise Time and Fall Time vs Temperature

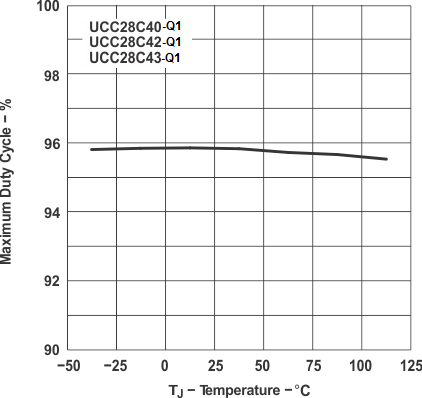

Figure 7-16 Maximum Duty Cycle vs Temperature

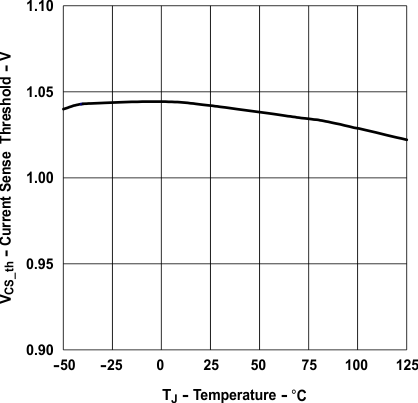

Figure 7-18 Current Sense Threshold Voltage vs Temperature
