8.3.4 Line Overvoltage Protection
When the line-overvoltage protection is triggered in the UCC2897A controller, the gate-drive signals are immediately disabled. At the same time, the slow discharge of CSS initiates. While the soft-start capacitor discharges the gate-drive signals remain disabled. Once VSS = 0.5 V and the overvoltage disappears from the input of the power supply, operation resumes through a regular soft start of the converter as it is demonstrated in Figure 21. The pulses of OUT and AUX stop if one of three conditions is met:
- VDD reaches UVLO off
- VSS reaches below 2.5 V
- FB voltage is below 2.5 V

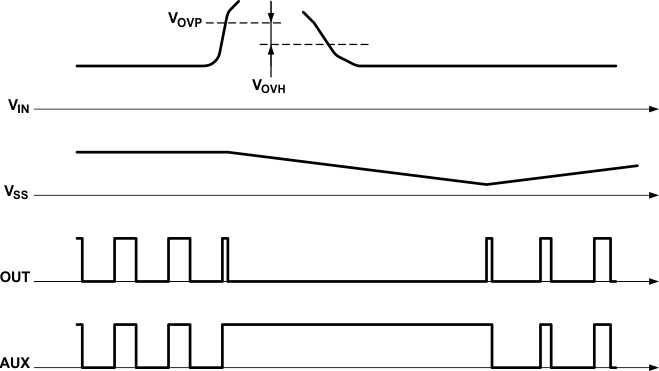

Figure 21. Line Overvoltage Sequence, P-Channel
