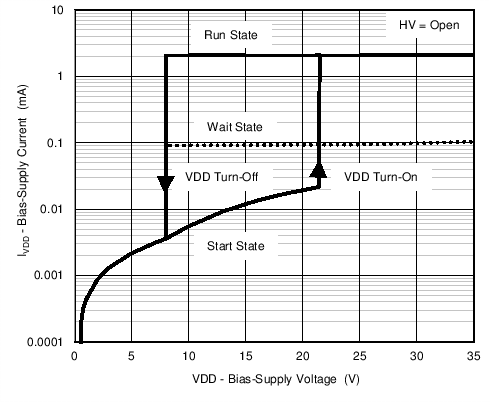

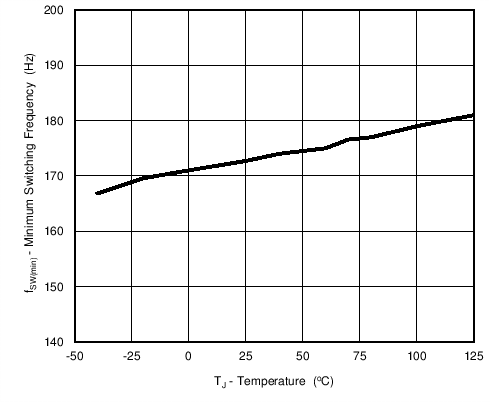

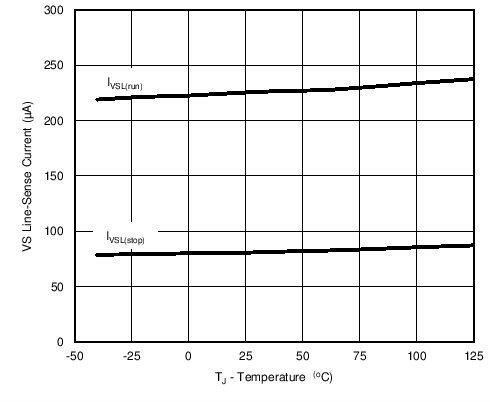

8.7 Typical Characteristics
VVDD = 25 V, TJ = 25°C, unless otherwise noted.

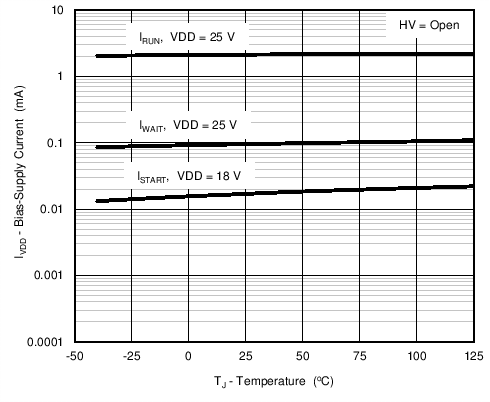

| HV = Open |

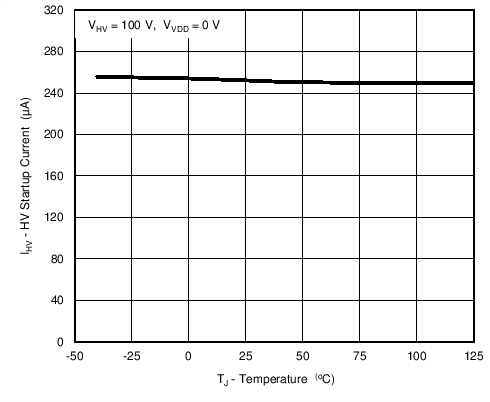

| VHV = 100 V, VVDD = 0 V | ||

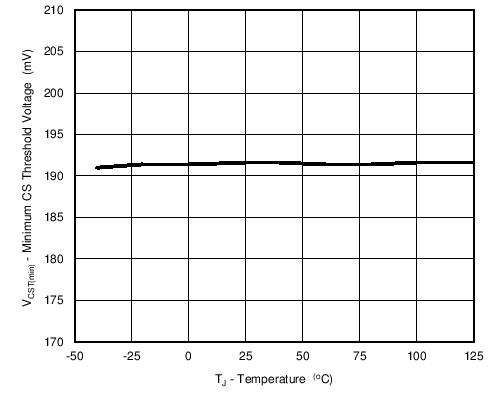

Figure 8-5 Minimum CS Threshold vs. Temperature

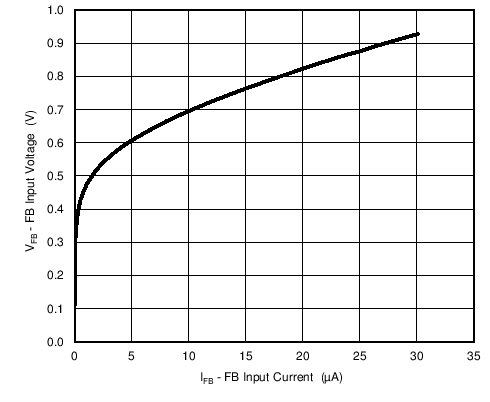

Figure 8-9 FB
Input Voltage vs. FB Input Current
| HV = Open |

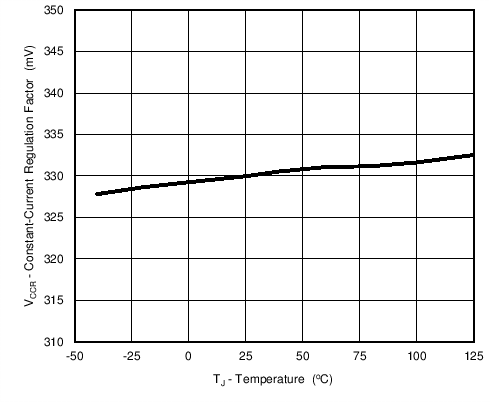

Figure 8-6 Constant-Current Regulation Factor vs. Temperature

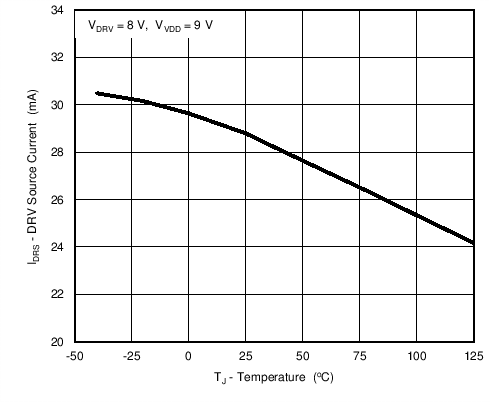

| VDRV = 8 V, VVDD = 9 V | ||

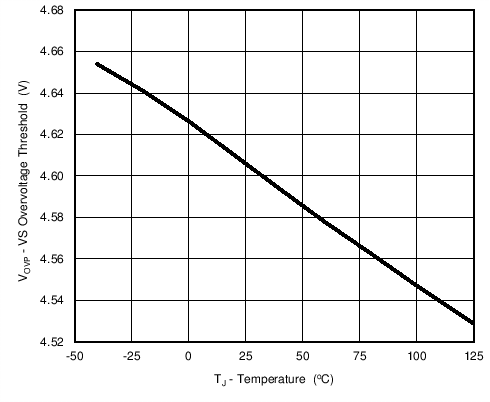

Figure 8-10 VS
Overvoltage Threshold vs. Temperature
