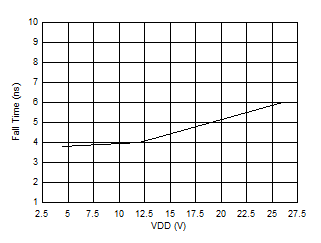

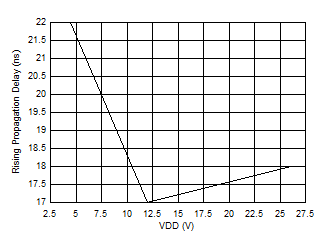

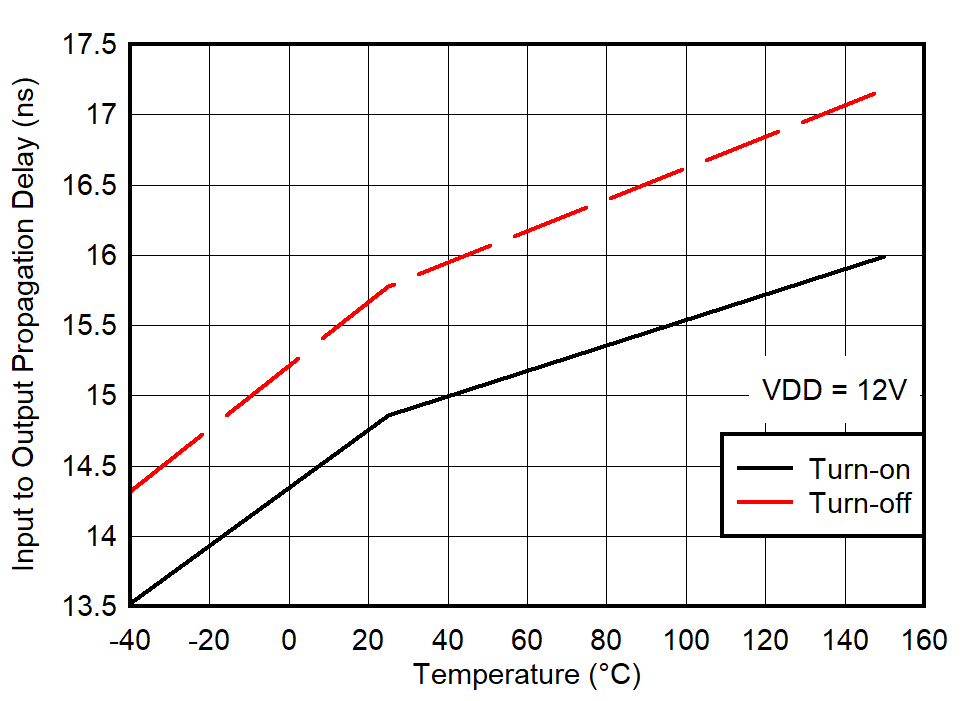

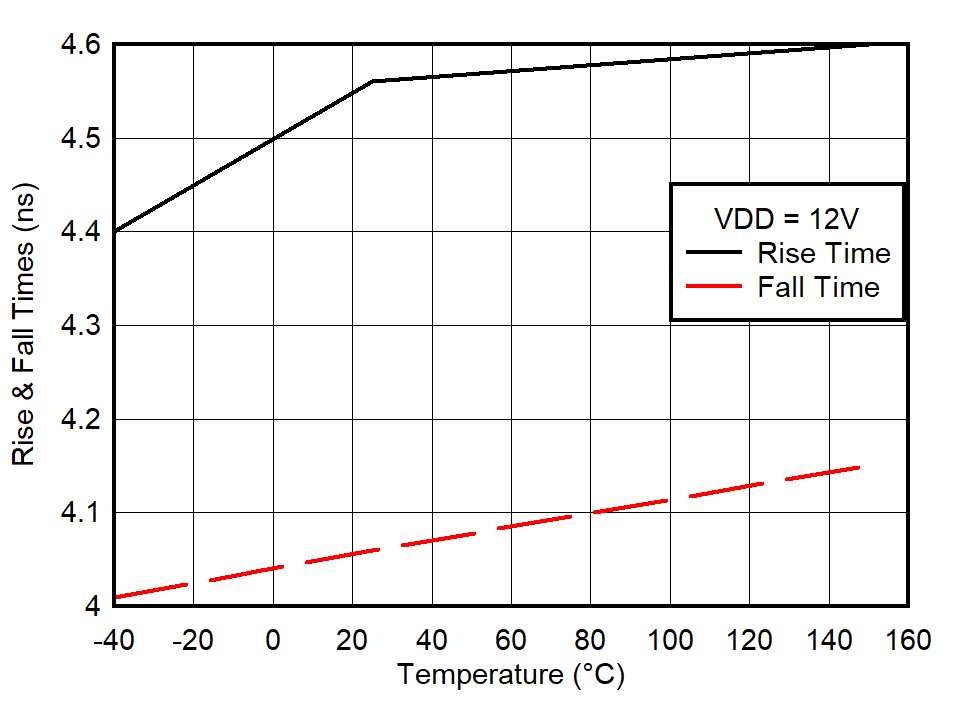

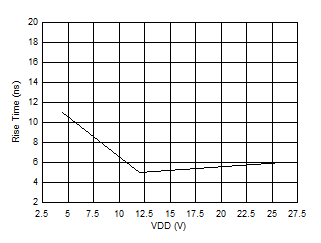

6.8 Typical Characteristics
Unless otherwise specified, VDD = 12 V, IN+ = 3.3 V, IN- = GND, TJ = 25 °C, No load
Figure 6-4 Peak

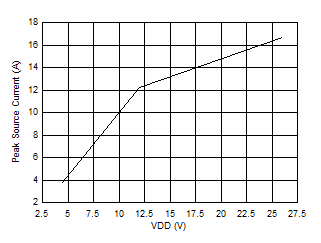

Source Current vs VDD
| CLOAD = 1.8 nF |
| CLOAD = 1.8 nF |
| CLOAD = 1.8 nF |

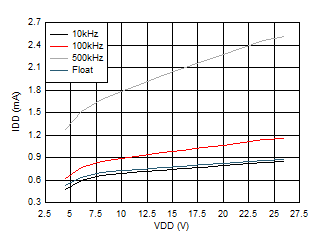

Figure 6-12 Operating Supply Current vs VDD
Figure 6-14 Input

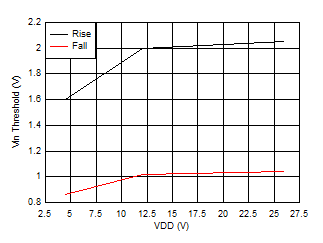

Threshold vs VDD
Figure 6-16 Input
Threshold

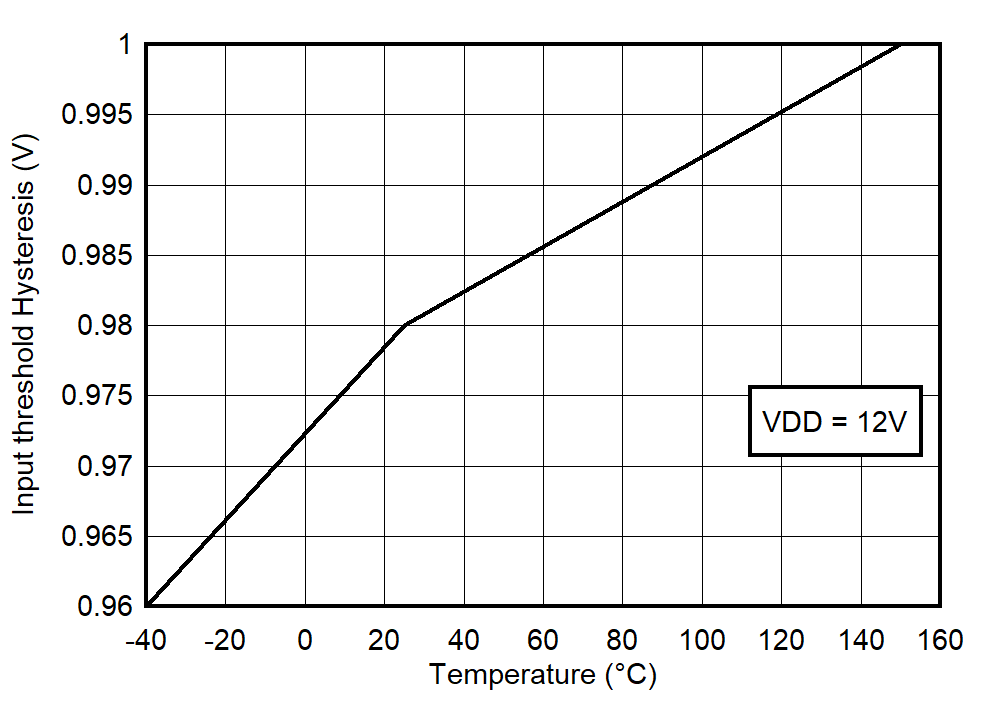

Hysteresis vs Temperature
Figure 6-18 Output Pullup Resistance vs
Temperature

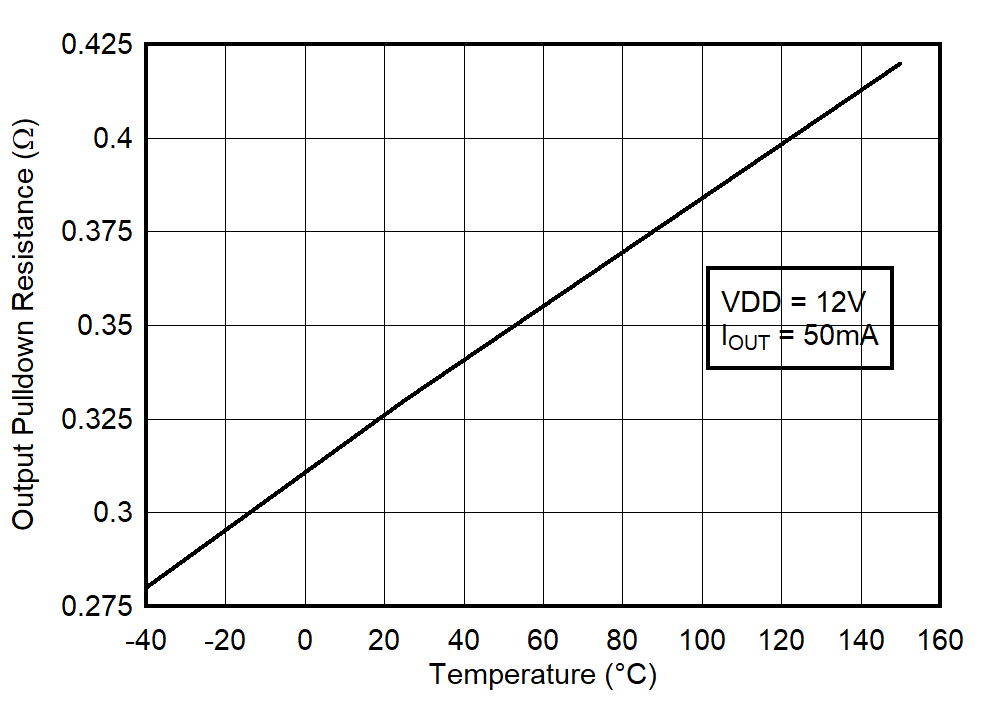

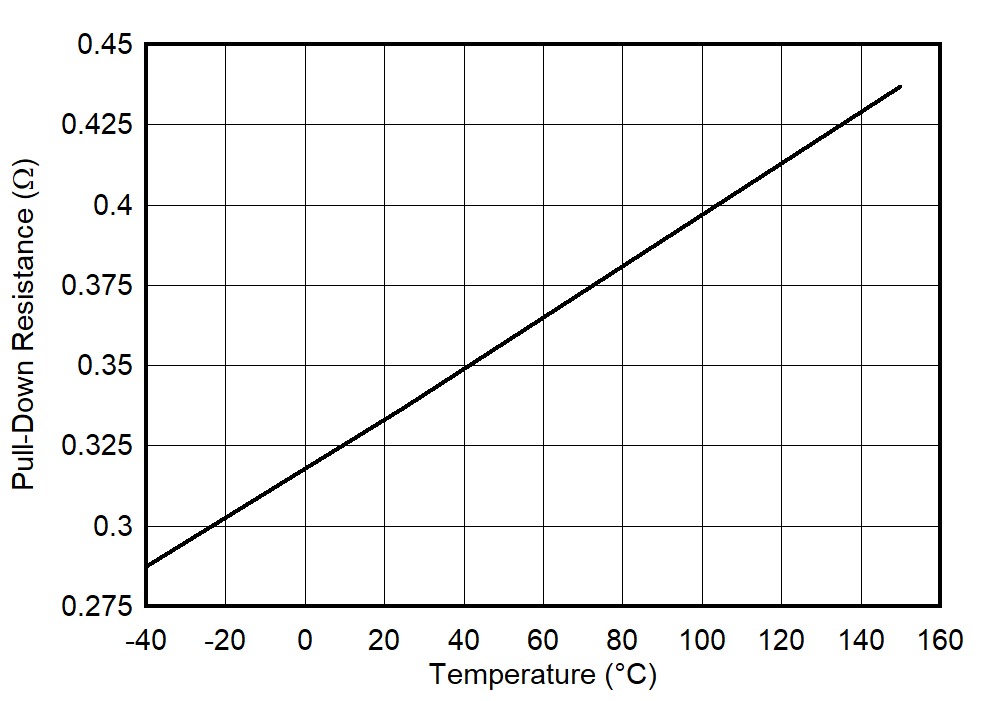

Figure 6-20 Output Pulldown Resistance vs
Temperature

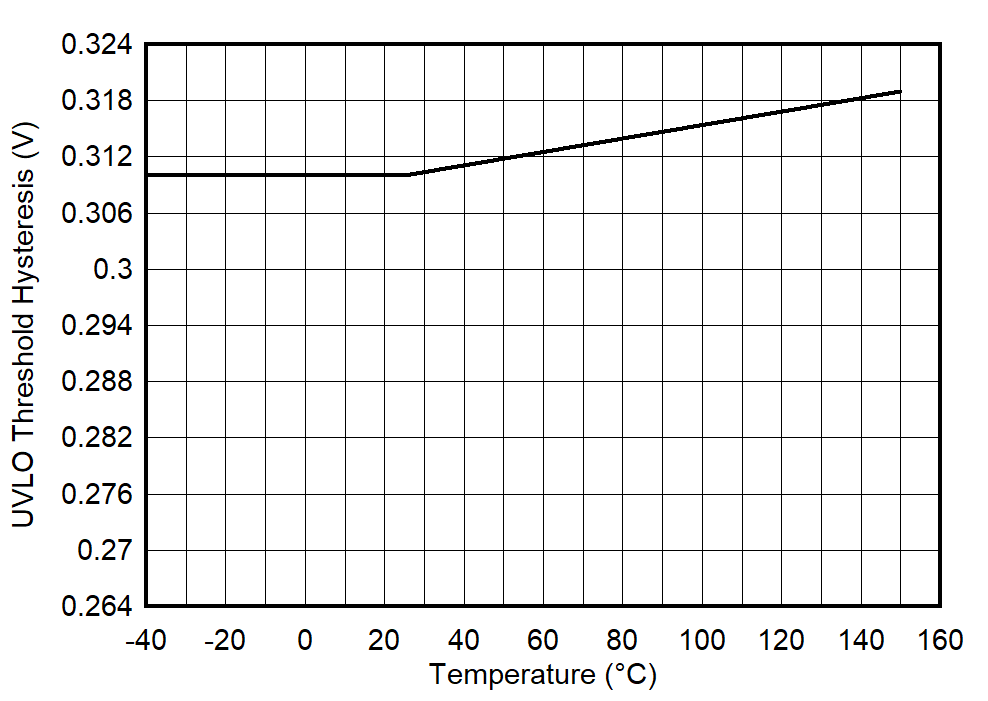

Figure 6-22 UVLO Hysteresis vs Temperature
Figure 6-5 Peak

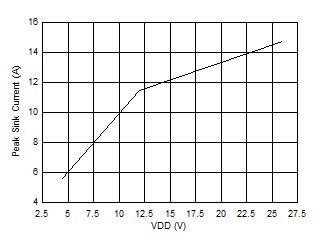

Sink Current vs VDD
| CLOAD = 1.8 nF |
| CLOAD = 1.8 nF |
| CLOAD = 1.8 nF |

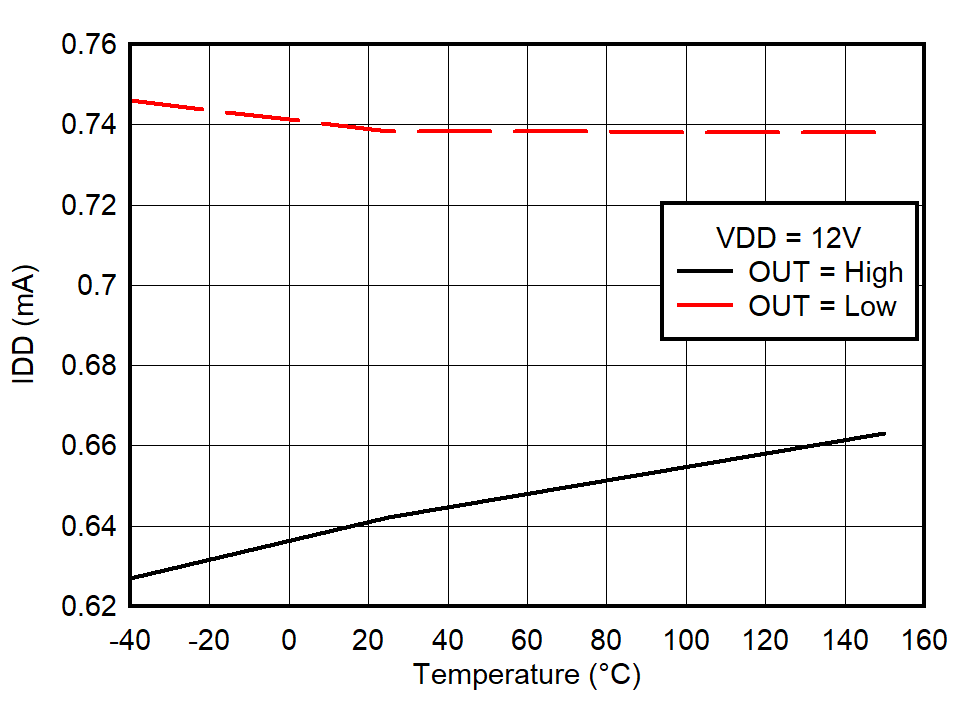

Figure 6-13 Operating Static Supply Current vs Temperature

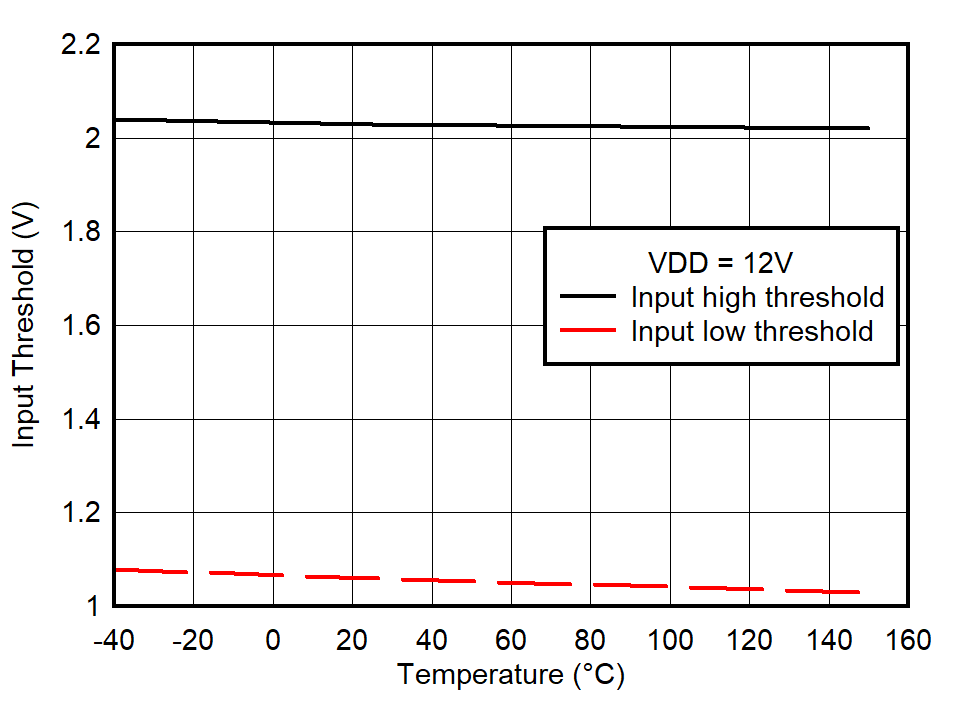

Figure 6-15 Input Threshold vs Temperature

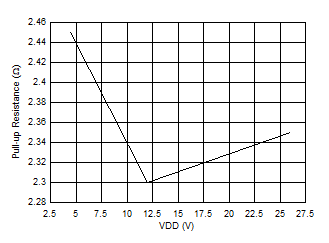

Figure 6-17 Output Pullup Resistance vs VDD
Figure 6-19 Output Pulldown Resistance vs VDD

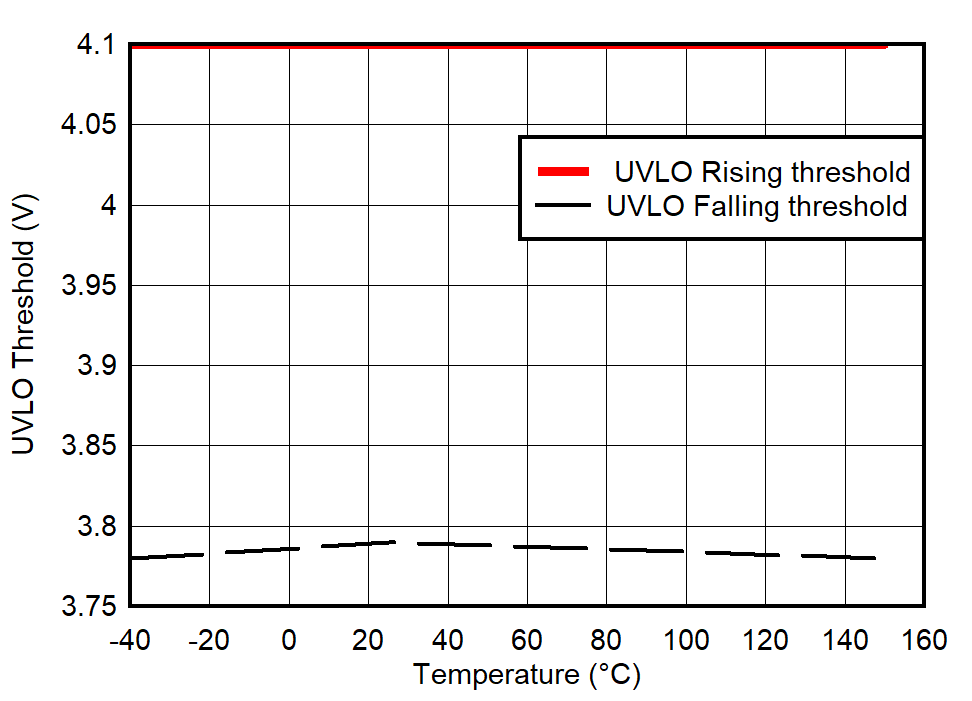

Figure 6-21 UVLO Threshold vs Temperature
