9.2.1.3 Application Curve
The following application curves were observed using the UCC27531 on the UCC27531EVM-184.
NOTE
Legend: Green: EVM PWM Input, Blue: UCC27531 IN, Red: EVM GATE Output
Figure 42. UCC27531DBV Input vs. Output PWM Propagation Delay (High)
Figure 44. UCC27531DBV Input vs. Output PWM Rise Time

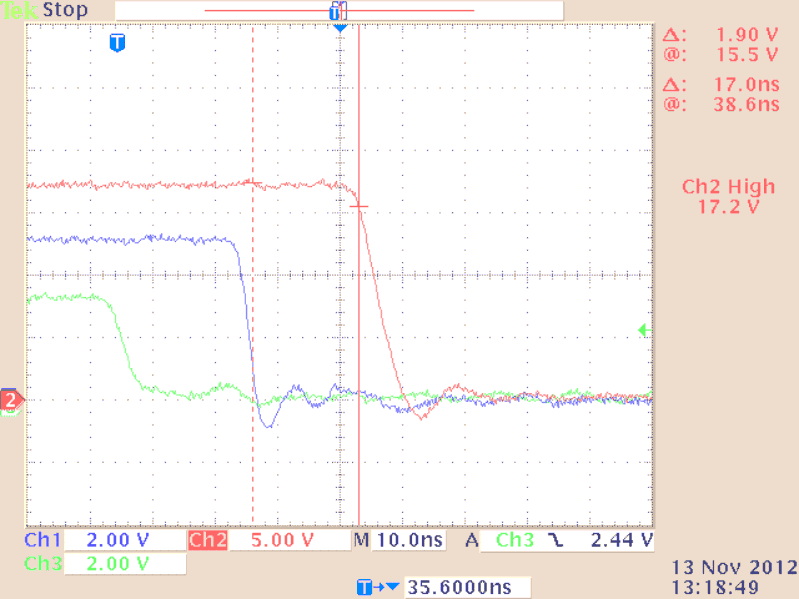

Figure 43. UCC27531DBV Input vs. Output PWM Propagation Delay (Low)
