5.12 Typical Characteristics
Figure 5-3 Output High Drive Current
vs Temperature
| IN+ = High | IN- = Low |
| IN+ = Low | IN- = Low |

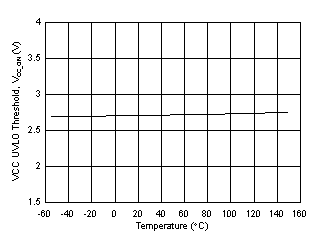

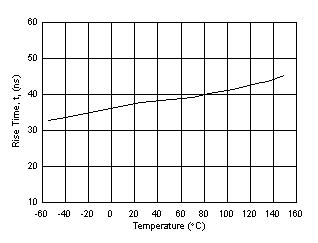

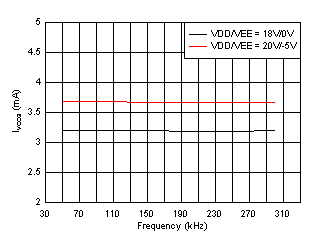

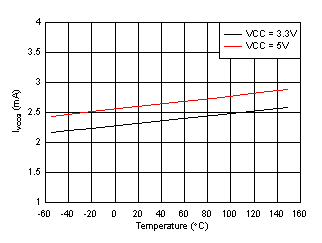

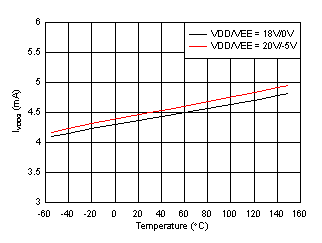

Figure 5-11 VCC
UVLO vs Temperature
| VCC = 3.3V | VDD=18V | CL = 100pF |
| RON = 0Ω | ROFF = 0Ω |
| VCC = 3.3V | VDD=18V | CL = 10nF |
| RON = 0Ω | ROFF = 0Ω |

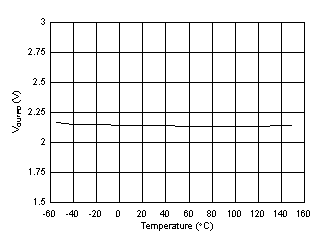

Figure 5-17 VOUTPD Output Active Pulldown Voltage vs Temperature

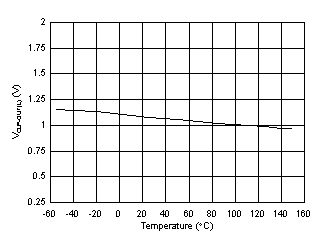

Figure 5-19 VCLP-OUT(L) Short Circuit Clamping Voltage vs
Temperature

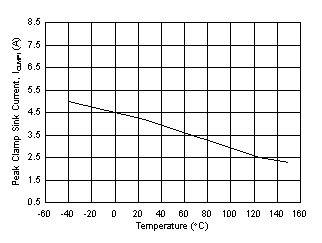

Figure 5-21 ICLMPI Miller Clamp Sink Current vs Temperature
Figure 5-23 VDESAT DESAT Threshold Voltage vs Temperature

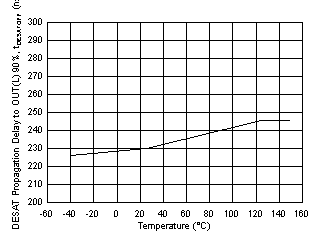

Figure 5-25 tDESATOFF DESAT Propagation Delay to OUT(L) 90% vs
Temperature

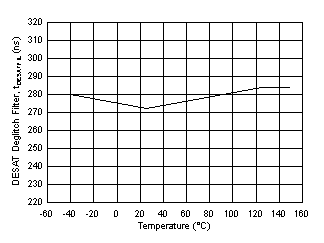

Figure 5-27 tDESATFIL DESAT Deglitch Filter vs Temperature

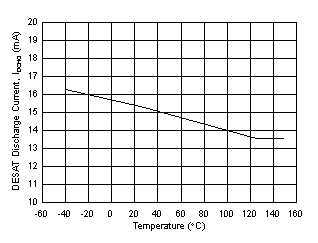

Figure 5-29 IDCHG DESAT Discharge Current vs Temperature
Figure 5-4 Output Low Driver Current
vs Temperature
| IN+ = Low | IN- = Low |
| IN+ = High | IN- = Low |

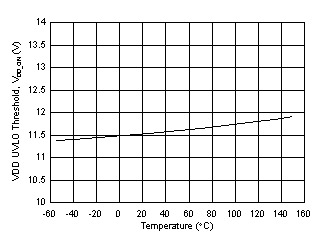

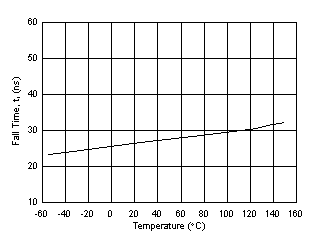

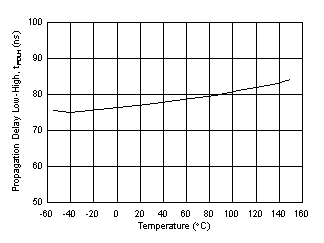

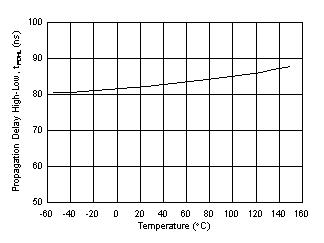

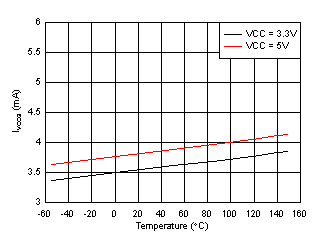

Figure 5-12 VDD
UVLO vs Temperature
| VCC = 3.3V | VDD=18V | CL = 100pF |
| RON = 0Ω | ROFF = 0Ω |
| VCC = 3.3V | VDD=18V | CL = 10nF |
| RON = 0Ω | ROFF = 0Ω |
Figure 5-18 VCLP-OUT(H) Short Circuit Clamping Voltage vs
Temperature

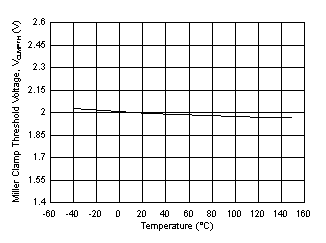

Figure 5-20 VCLMPTH Miller Clamp Threshold Voltage vs
Temperature

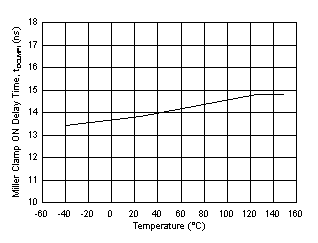

Figure 5-22 tDCLMPI Miller Clamp ON Delay Time vs Temperature

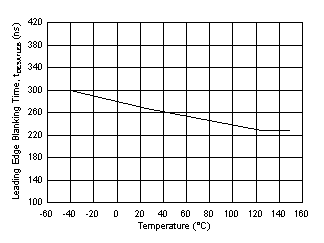

Figure 5-24 tDESATLEB DESAT Leading Edge Blanking Time vs
Temperature
Figure 5-26 tDESATFLT DESAT Sense to /FLT Low Delay Time vs
Temperature

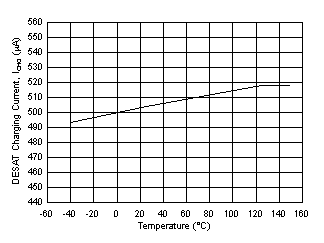

Figure 5-28 ICHG DESAT Charging Current vs Temperature
