6.1.1 Non-Inverting and Inverting Propagation Delay

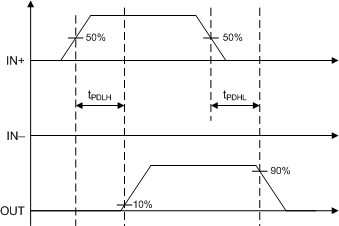

Figure 6-1 shows the propagation delay measurement for non-inverting configurations. Figure 6-2 shows the propagation delay measurement with the inverting configurations.
