3 說明
UCC21759-Q1 是一款電隔離單通道柵極驅動器，旨在用于 SiC MOSFET 和 IGBT，工作電壓高達 900V（直流），具有先進的保護特性、出色的動態性能和穩健性。UCC21759-Q1 具有高達 ±10A 的峰值拉電流和灌電流。
輸入側通過 SiO2 電容隔離技術與輸出側相隔離，支持高達 636VRMS 的工作電壓、超過 40 年的隔離柵壽命、6kVPK 的浪涌抗擾度，并提供較低的器件間偏斜和 >150V/ns 的共模噪聲抗擾度 (CMTI)。
UCC21759-Q1 包含先進的保護特性，如快速短路檢測、故障報告、有源米勒鉗位以及針對 SiC 和 IGBT 功率晶體管優化的輸入和輸出側電源 UVLO。可以利用隔離式模擬至 PWM 傳感器更輕松地進行溫度或電壓檢測，從而進一步提高驅動器的多功能性并較少系統設計工作量、尺寸和成本。
器件信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| UCC21759-Q1 | DW (SOIC-16) | 10.3mm × 7.5mm |
(1) 有關所有可選封裝，請參閱節 13。

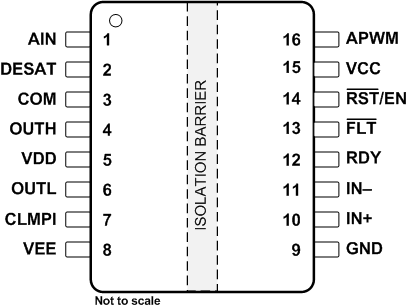

器件引腳配置
