6.1.1 Regular Turn-OFF
Figure 6-1 shows the propagation delay measurement for noninverting configurations. Figure 6-2 shows the propagation delay measurement with the inverting configurations.

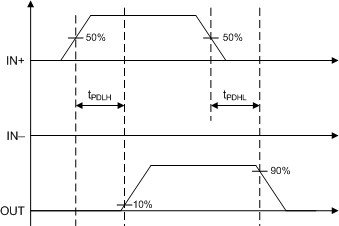

Figure 6-1 Noninverting Logic Propagation Delay Measurement

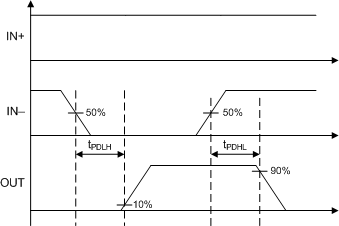

Figure 6-2 Inverting
Logic Propagation Delay Measurement
