7.2 Rising and Falling Time

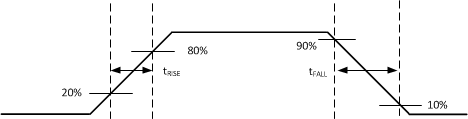

Figure 7-2 shows the criteria for measuring rising (tRISE) and falling (tFALL) times. For more information on how short rising and falling times are achieved see Output Stage.
Figure 7-2 Rising and Falling Time Criteria
