7.6 Timing Requirements
| MIN | NOM | MAX | UNIT | ||
|---|---|---|---|---|---|
| Power-on timings. Refer to Figure 1 | |||||
| td1 | VDD stable before VDD33 stable. (2) (3) | 0 | ms | ||
| td2 | VDD and VDD33 before de-assertion of GRSTz. | 3 | ms | ||
| tsu_io | Setup for MISC inputs. (1) | 0.1 | µs | ||
| thd_io | Hold for MISC inputs. (1) | 0.1 | µs | ||
| tVDD33_RAMP | VDD33 supply ramp requirement. | 0.2 | 100 | ms | |
| tVDD_RAMP | VDD supply ramp requirement. | 0.2 | 100 | ms | |
(1) MISC pins sampled at de-assertion of GRSTz: BATEN[4:1], AUTOENz, FULLPWRMGMTz, GANGED, SMBUSz, and PWRCTL_POL.
(2) As long as GRSTz is de-asserted after both supplies are stable, there is no power-on relationship between VDD33 and VDD. If GRSTz is only connected to a capacitor to GND, then VDD must be stable minimum of 10 µs before VDD33.
(3) An active reset is required if the VDD33 supply is stable before VDD supply. This active reset shall meet the 3 ms power-up delay counting from both power supplies stable to de-assertion of GRSTz.

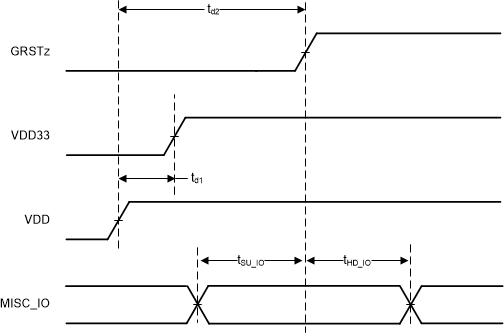

Figure 1. Power-Up Timing Requirements
