7.4.8 Operation Timing – Power Up

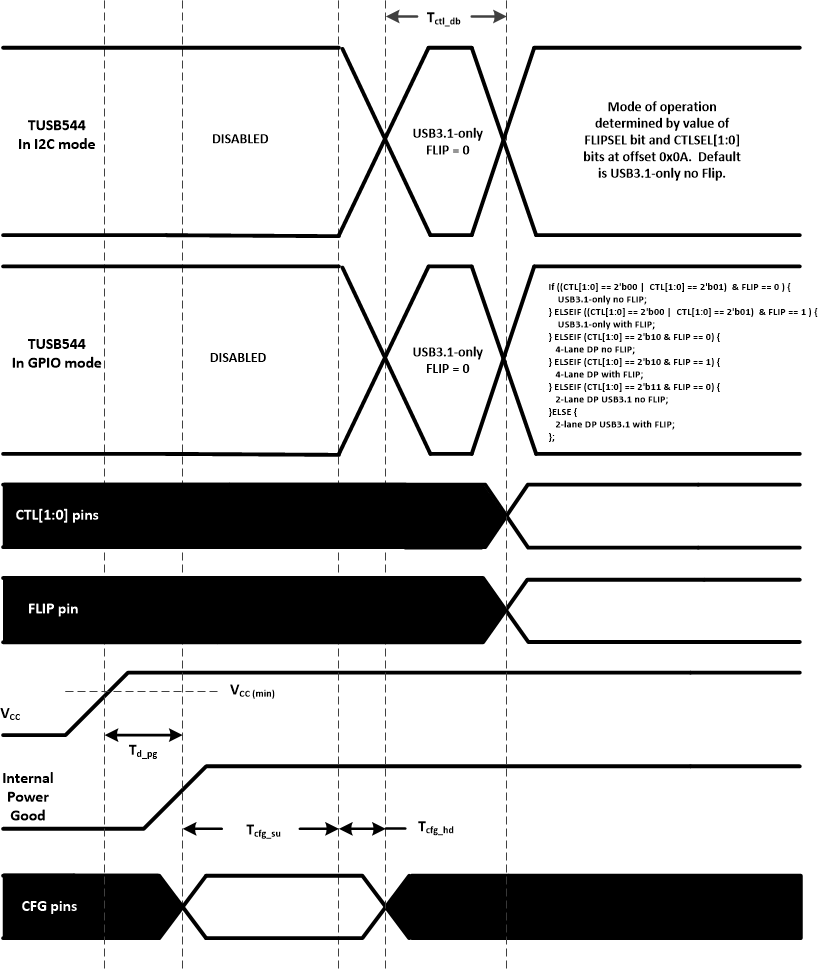

Figure 21. Power-Up Timing Table 9. Power-Up Timing
| PARAMETER | MIN | MAX | UNIT | |
|---|---|---|---|---|
| Td_pg | VCC (min) to Internal Power Good asserted high | 500 | µs | |
| Tcfg_su | CFG(1) pins setup (2) | 350 | µs | |
| Tcfg_hd | CFG(1) pins hold | 10 | µs | |
| TCTL_DB | CTL[1:0] and FLIP pin debounce | 16 | ms | |
| TVCC_RAMP | VCC supply ramp requirement | 100 | ms | |
(1) Following pins comprise CFG pins: I2C_EN, UEQ[1:0], DEQ[1:0], CFG[1:0], DIR[1:0],VIO_SEL, SLP_S0#, and SWAP.
(2) Recommend CFG pins are stable when VCC is at min.
