6.9 Switching Characteristics
over operating free-air temperature range (unless otherwise noted)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| AUXP/N and SBU1/2 | ||||||
| tAUX_PD | Switch propagation delay | 400 | ps | |||
| tAUX_SW_OFF | Switching time CTL1 to switch OFF | Not including tCTL1_DEBOUNCE | 500 | ns | ||
| tAUX_SW_ON | Switching time CTL1 to switch ON | 500 | ns | |||
| tAUX_INTRA | Intra-pair output skew | 100 | ps | |||
| USB3.1 and DisplayPort mode transition requirement GPIO mode | ||||||
| tGP_USB_4DP | Min overlap of CTL1 and CTL1 when transitioning from USB 3.1 only mode to 4-Lane DisplayPort mode or vice versa. | 4 | µs | |||
| CTL1 and HPDIN | ||||||
| tCTL1_DEBOUNCE | CTL1 and HPDIN debounce time when transitioning from H to L. | DP Lanes will be disabled if low for greater than min value. | 3 | ms | ||
| I2C (Refer to Figure 1) | ||||||
| fSCL | I2C clock frequency | 1 | MHz | |||
| tBUF | Bus free time between START and STOP conditions | 0.5 | µs | |||
| tHDSTA | Hold time after repeated START condition. | After this period, the first clock pulse is generated | 0.26 | µs | ||
| tLOW | Low period of the I2C clock | 0.5 | µs | |||
| tHIGH | High period of the I2C clock | 0.26 | µs | |||
| tSUSTA | Setup time for a repeated START condition | 0.26 | µs | |||
| tHDDAT | Data hold time | 0 | μs | |||
| tSUDAT | Data setup time | 50 | ns | |||
| tR | Rise time of both SDA and SCL signals | 120 | ns | |||
| tF | Fall time of both SDA and SCL signals | 20 × (VI2C/5.5 V) | 120 | ns | ||
| tSUSTO | Setup time for STOP condition | 0.26 | μs | |||
| Cb | Capacitive load for each bus line | 100 | pF | |||

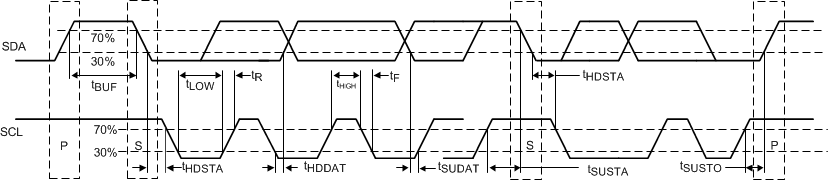

Figure 1. I2C Timing Diagram Definitions

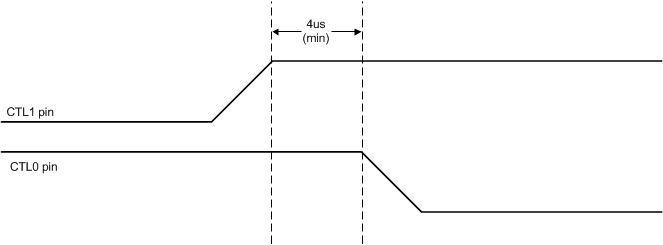

Figure 2. USB3.1 to 4-Lane DisplayPort in GPIO Mode

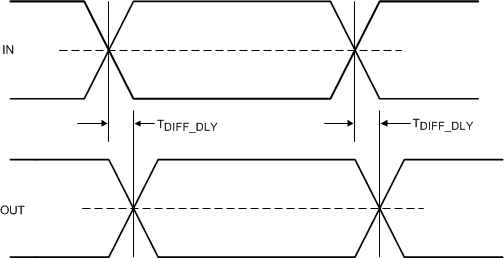

Figure 3. Propagation Delay

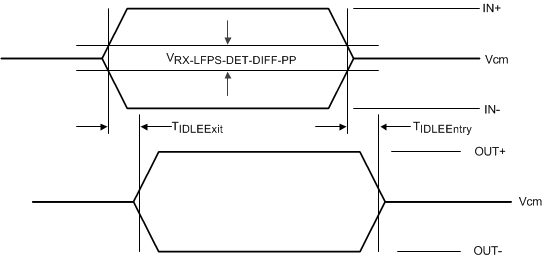

Figure 4. Electrical Idle Mode Exit and Entry Delay
Figure 5. Output Rise and Fall Times

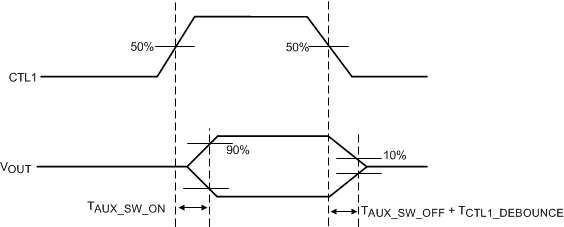

Figure 6. AUX and SBU Switch ON and OFF Timing Diagram
