8.3.2 Overvoltage Protection

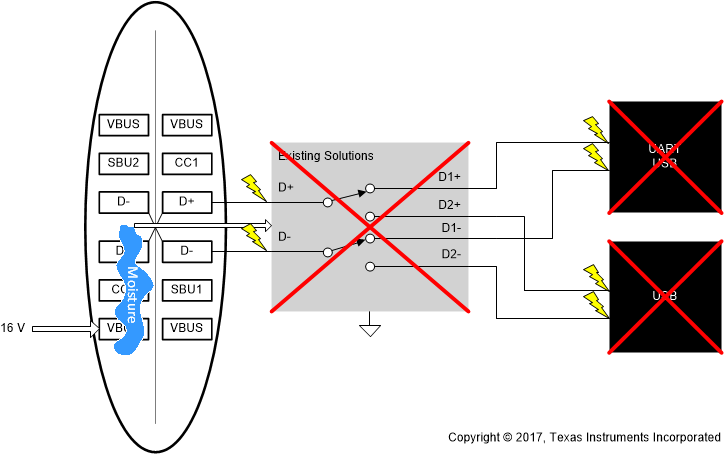

The OVP of the TS5USBC400 is designed to protect the system from D+/- shorts to VBUS at the USB and USB Type-C connector. Figure 14 depicts a moisture short that would cause 16 V to appear on an existing USB solution that could pass through the device and damage components behind the device.

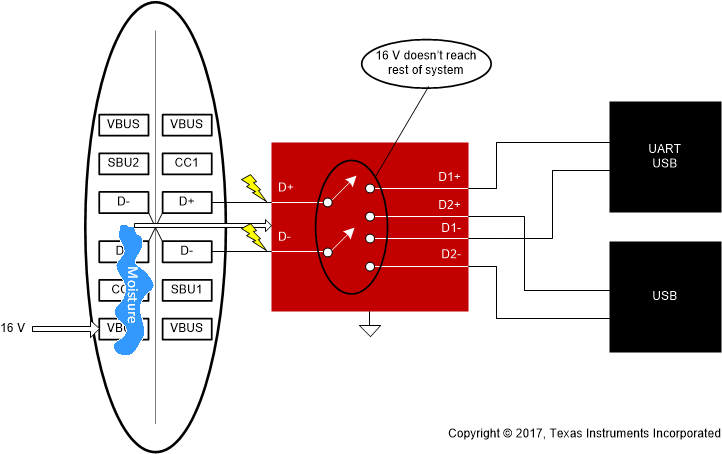

Figure 14. Existing Solution Being Damaged by a Short, 16 VThe TS5USBC400 will open the switches and protect the rest of the system by blocking the 16 V as depicted in .

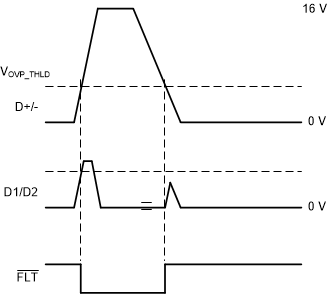

Figure 15. Protecting During a 16-V ShortFigure 16 is a waveform showing the voltage on the pins during an over-voltage scenario.
Figure 16. Overvoltage Protection Waveform, 16 V
