8 Parameter Measurement Information

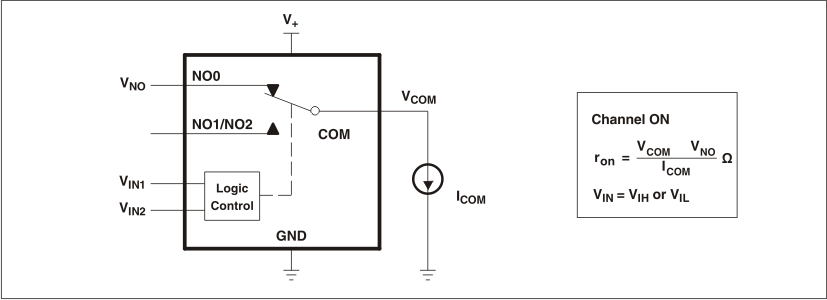

Figure 13. ON-State Resistance (ron)

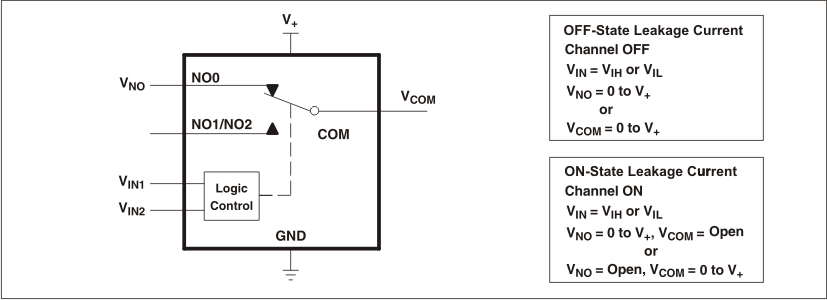

Figure 14. ON- and OFF-State Leakage Current (ICOM(ON), ICOM(OFF), INO(ON), INO(OFF))

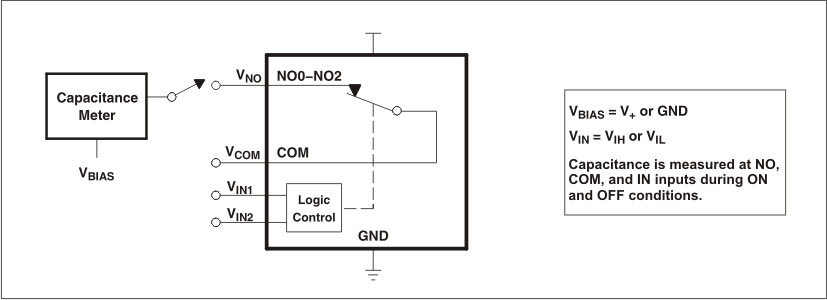

Figure 15. Capacitance (CI, CCOM(ON), CNO(OFF), CCOM(OFF), CNO(ON))
A. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns,
tf < 5 ns.
tf < 5 ns.
B. CL includes probe and jig capacitance.

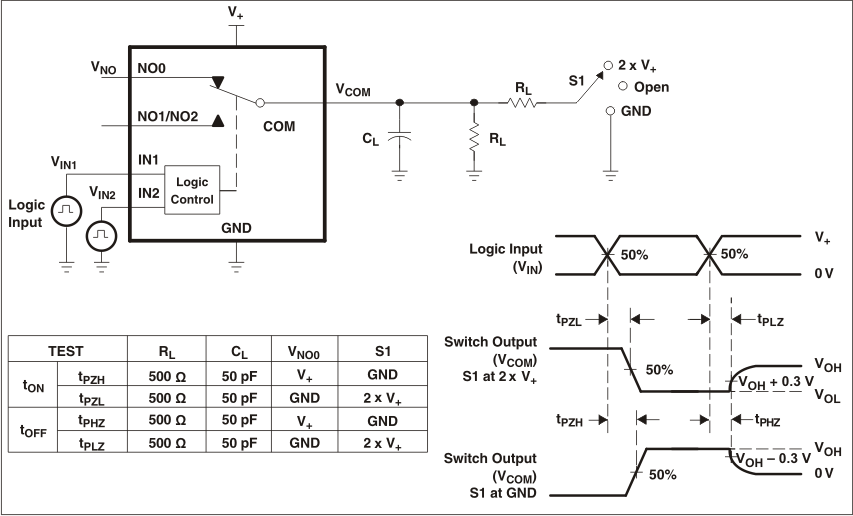

Figure 16. Turn-On (tON) and Turn-Off Time (tOFF)
A. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns,
tf < 5 ns.
tf < 5 ns.
B. CL includes probe and jig capacitance.

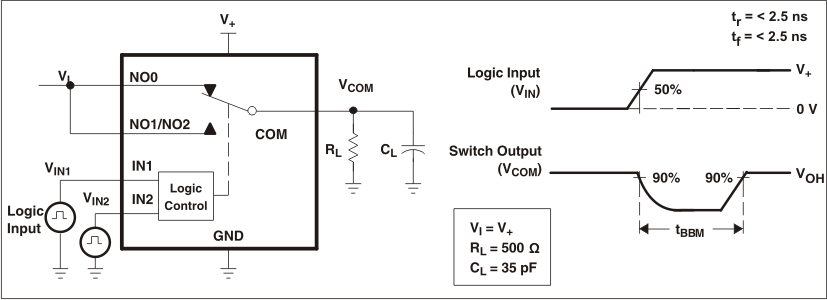

Figure 17. Break-Before-Make Time (tBBM)

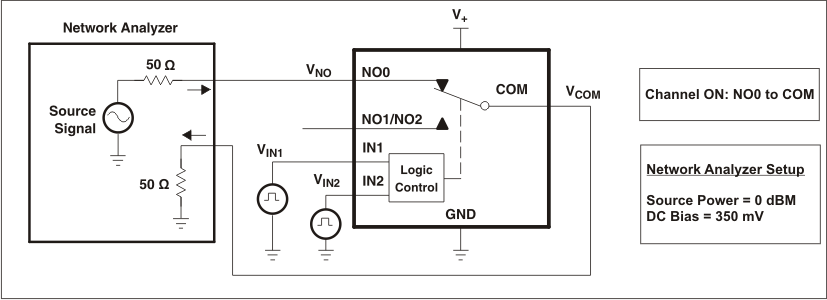

Figure 18. Bandwidth (BW)

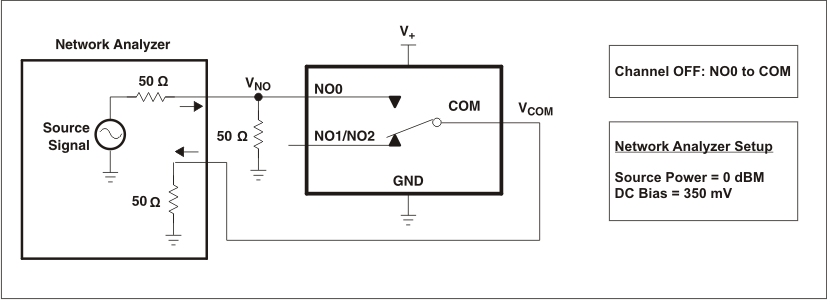

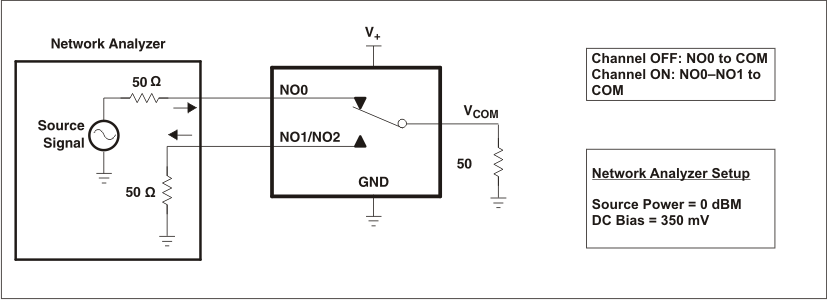

Figure 19. OFF Isolation (OISO)
Figure 20. Crosstalk (XTALK)
A. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns,
tf < 5 ns.
tf < 5 ns.
B. CL includes probe and jig capacitance.

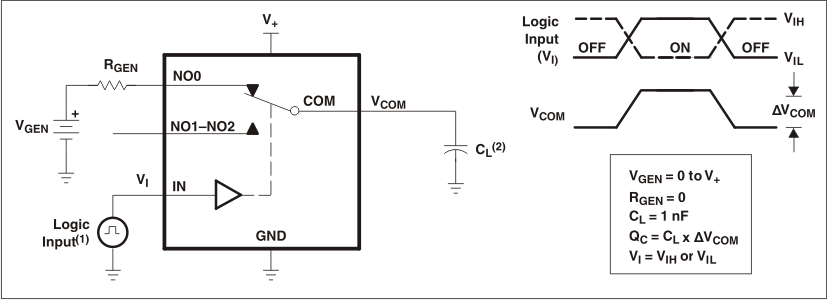

Figure 21. Charge Injection (QC)
