7 Parameter Measurement Information

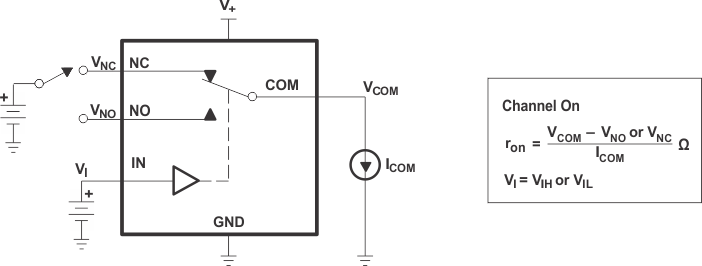

Figure 14. ON-State Resistance (ron)

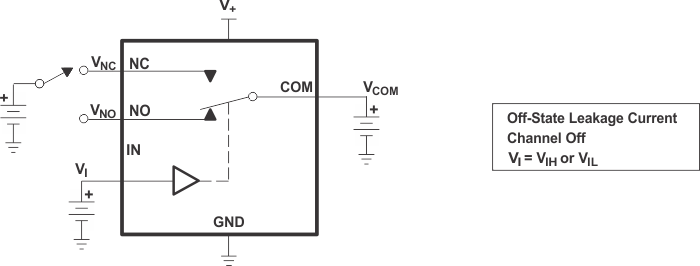

Figure 15. OFF-State Leakage Current (INC(OFF), INC(PWROFF), INO(OFF), INO(PWROFF), ICOM(OFF), ICOM(PWROFF))

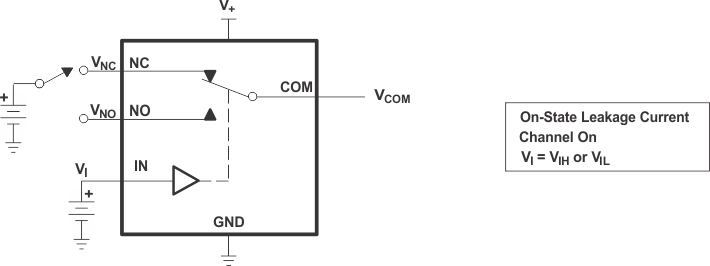

Figure 16. ON-State Leakage Current (ICOM(ON), INC(ON), INO(ON))

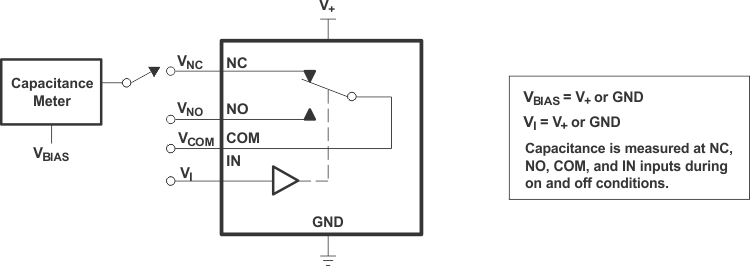

Figure 17. Capacitance (CI, CCOM(ON), CNC(OFF), CNO(OFF), CNC(ON), CNO(ON))
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr< 5 ns,
tf< 5 ns.
tf< 5 ns.
2. CL includes probe and jig capacitance.

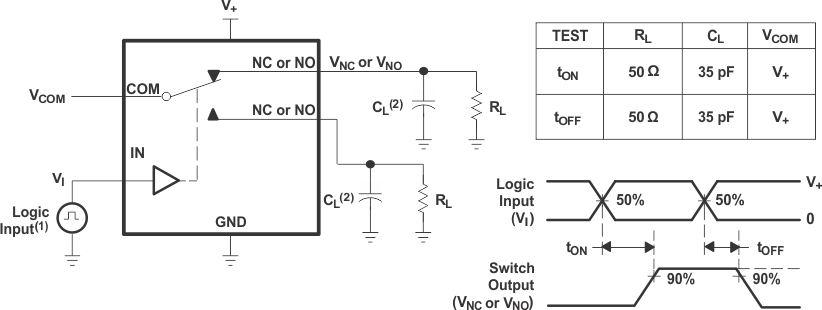

Figure 18. Turnon (tON) and Turnoff Time (tOFF)
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr< 5 ns,
tf< 5 ns.
tf< 5 ns.
2. CL includes probe and jig capacitance.

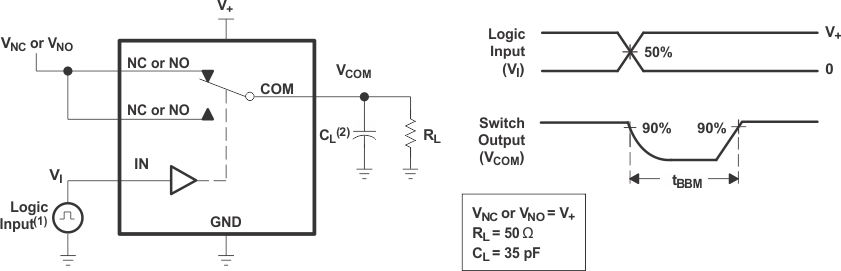

Figure 19. Break-Before-Make Time (tBBM)

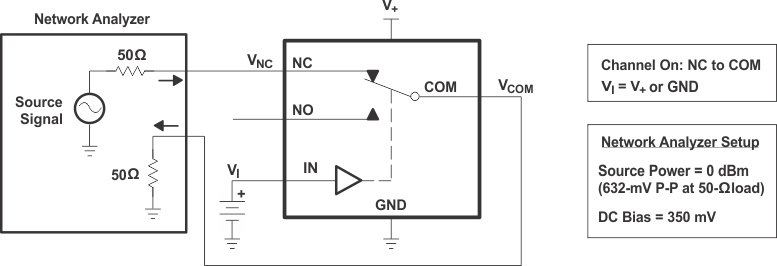

Figure 20. Bandwidth (BW)

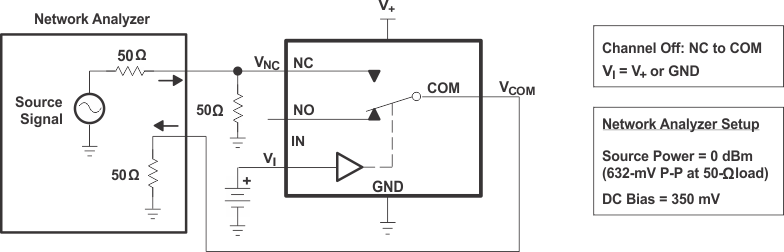

Figure 21. OFF Isolation (OISO)

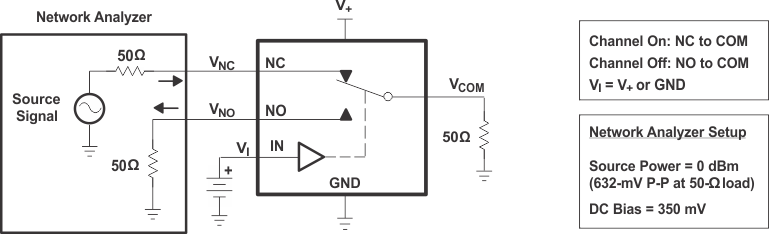

Figure 22. Crosstalk (XTALK)
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr< 5 ns,
tf< 5 ns.
tf< 5 ns.
2. CL includes probe and jig capacitance.

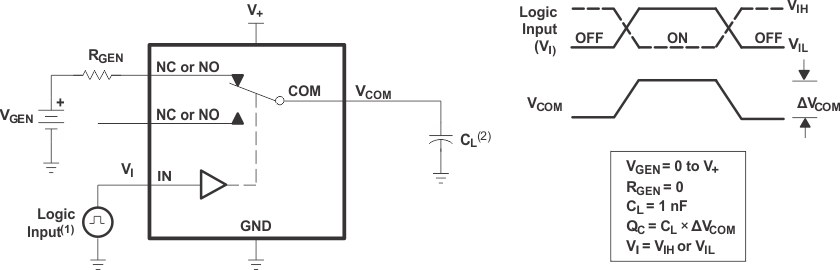

Figure 23. Charge Injection (QC)
1. CL includes probe and jig capacitance.

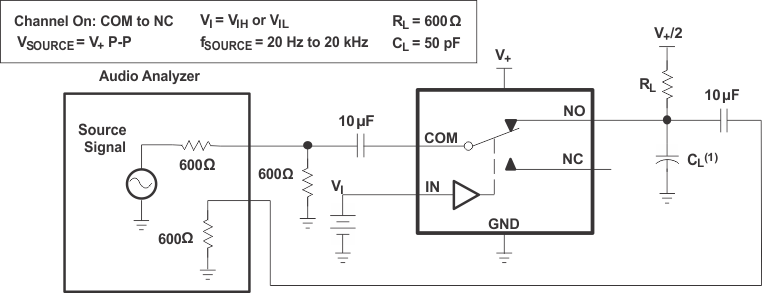

Figure 24. Total Harmonic Distortion (THD)
