8 Detailed Description
8.1 Overview
The TS5A3159-Q1 is a single-pole double-throw (SPDT) analog switch designed to operate from 1.65 V to 5.5 V. Either the NO or the NC pin is shorted to the COM pin, depending on the logic level input to the IN pin.

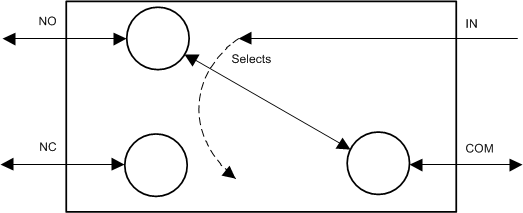

8.2 Functional Block Diagram
8.3 Feature Description
The main feature of this device is the excellent total harmonic distortion performance and low power consumption. Additionally, the NO, NC, and COM pins can be used as either inputs or outputs.
Table 2. Summary Of Characteristics(1)
(1) V+ = 5 V and TA = 25°C
8.4 Device Functional Modes
Table 3 lists the functions for the TS5A3159-Q1 device.
Table 3. Function Table
| IN | NC TO COM, COM TO NC |
NO TO COM, COM TO NO |
|---|---|---|
| L | ON | OFF |
| H | OFF | ON |
