11 Layout
11.1 Layout Guidelines
TI recommends to keep signal lines as short as possible. Incorporation of microstrip or stripline techniques is also recommended when signal lines are greater than 1 inch in length. These traces must be designed with a characteristic impedance of either 50 Ω or 75 Ω, as required by the application. Do not place this device too close to high voltage switching components, as they may cause interference.

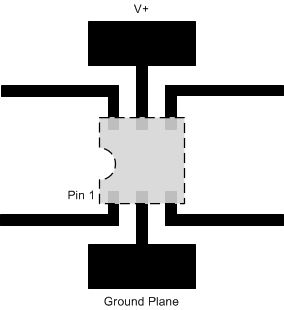

11.2 Layout Example
Figure 22. Layout Example
