7 Parameter Measurement Information

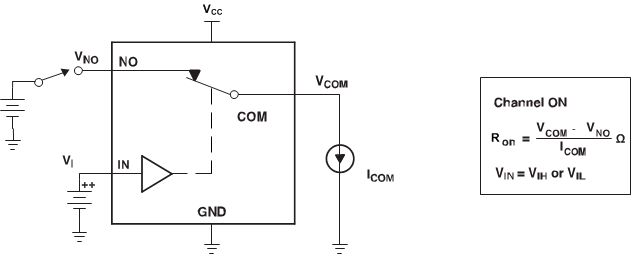

Figure 14. On-State Resistance (Ron)

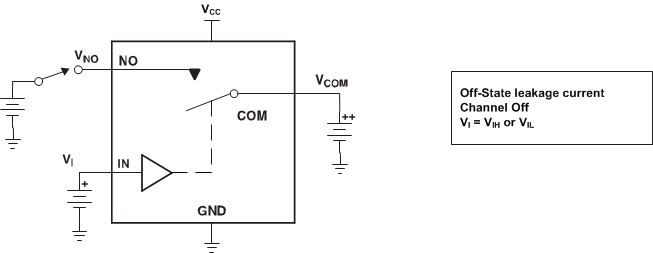

Figure 15. Off-State Leakage Current (ICOM(OFF), INO(OFF))

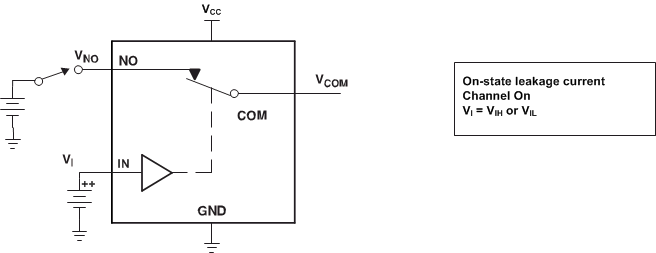

Figure 16. On-State Leakage Current(ICOM(ON), INO(ON))

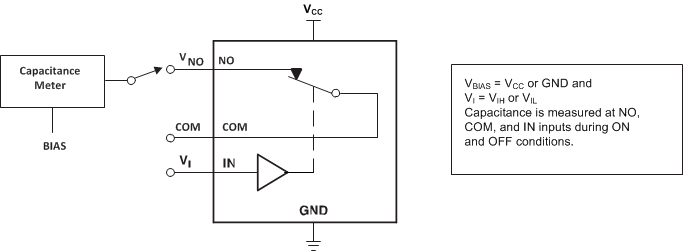

Figure 17. Capacitance(CI, CCOM(OFF), CCOM(ON), CNO(OFF), CNO(ON))
A. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns,
tf < 5 ns.
tf < 5 ns.
B. CL includes probe and jig capacitance.

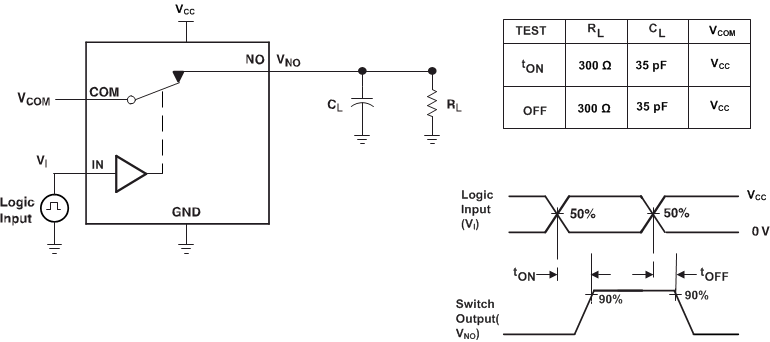

Figure 18. Turnon (tON) and Turnoff time (tOFF)
A. CL includes probe and jig capacitance.
B. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns,
tf < 5 ns.

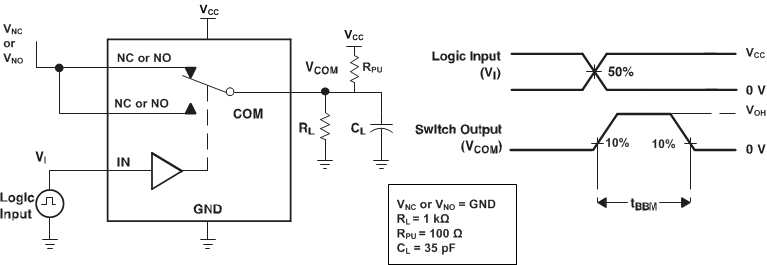

Figure 19. Break-Before-Make Time (tBBM)
tf < 5 ns.

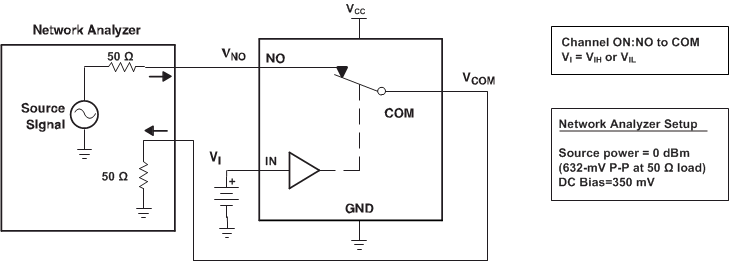

Figure 20. Bandwidth (BW)

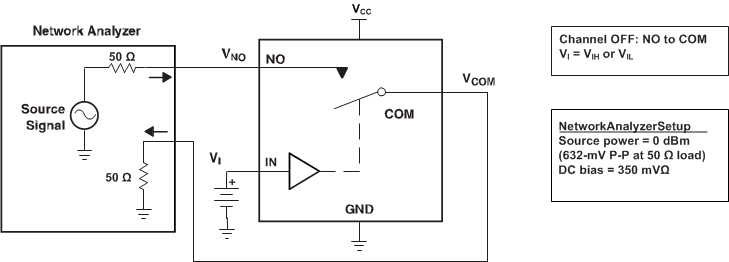

Figure 21. Off Isolation (OISO)

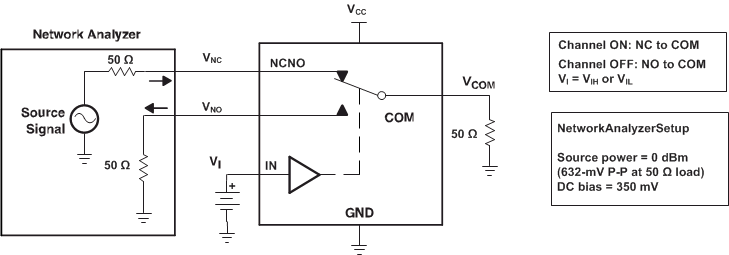

Figure 22. Crosstalk (XTALK)
A. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns,
tf < 5 ns.
tf < 5 ns.
B. CL includes probe and jig capacitance.

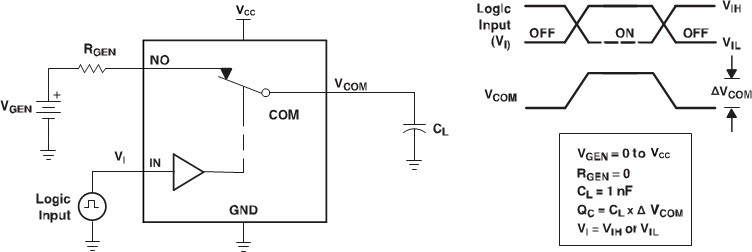

Figure 23. Charge Injection (QC)
A. CL includes probe and jig capacitance.

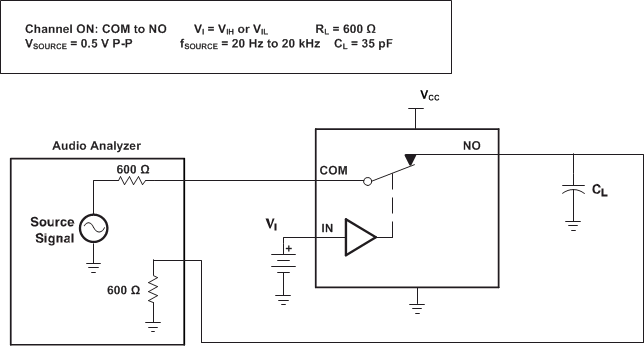

Figure 24. Total Harmonic Distortion (THD)
