11 Layout
11.1 Layout Guidelines
It is recommended to place a bypass capacitor as close to the supply pin VCC as possible to help smooth out lower frequency noise to provide better load regulation across the frequency spectrum.
Minimize trace lengths and vias on the signal paths in order to preserve signal integrity.
11.2 Layout Example

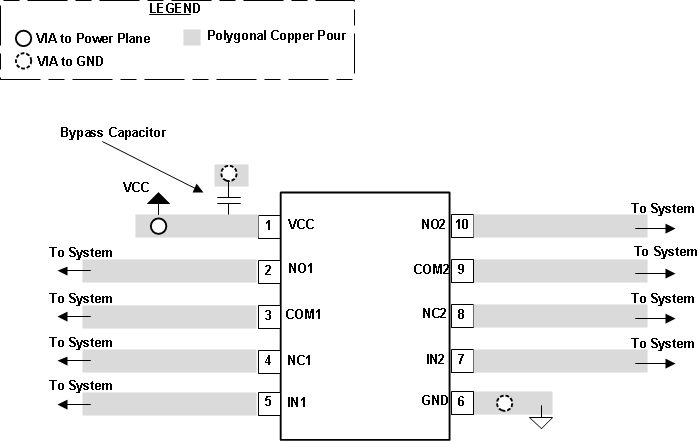

Figure 27. Layout Example of TS5A22364-Q1
