6 Parameter Measurement Information
A. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10MHz, ZO = 50?, tr < 5ns, tf < 5ns.
B. CL includes probe and jig capacitance.

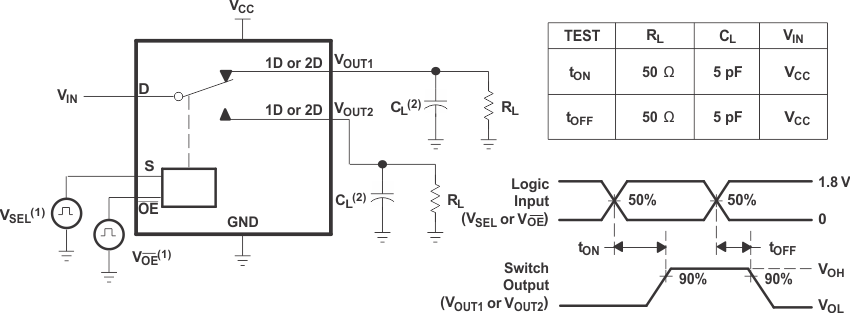

Figure 6-1 Turn-On (tON) and Turn-Off Time (tOFF)
Figure 6-2 OFF Isolation (OISO)
Figure 6-3 Crosstalk (XTALK)
Figure 6-4 Bandwidth (BW)

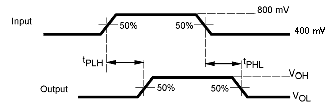

Figure 6-5 Propagation Delay
Figure 6-6 Skew Test
Figure 6-7 ON-State Resistance (RON)

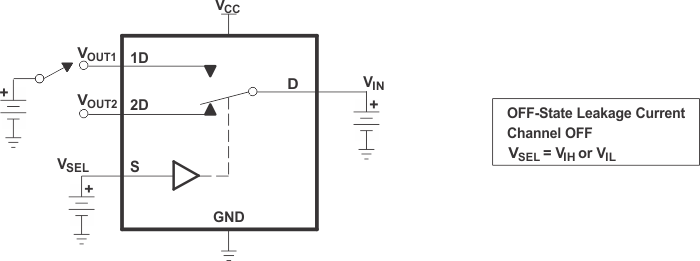

Figure 6-8 OFF-State Leakage Current

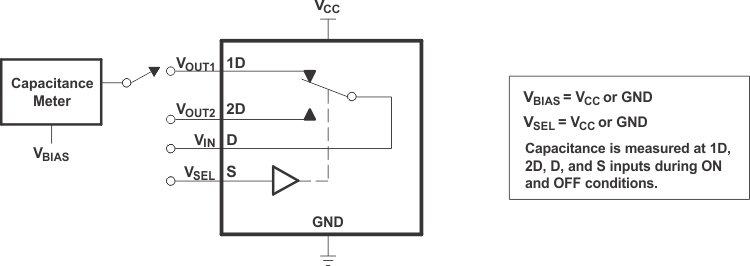

Figure 6-9 Capacitance
