ZHCSAJ9F December 2012 – June 2019 TS3USB3000
PRODUCTION DATA.
9.2.3 Application Curves

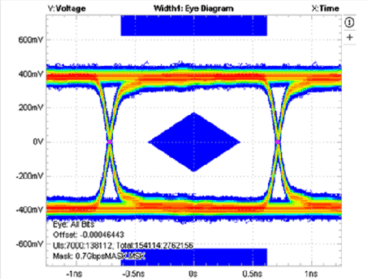

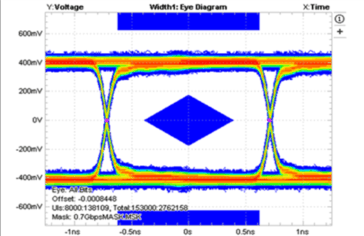

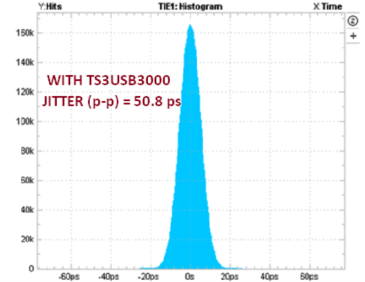

| The TS3USB3000 contributes only 8.4 ps of peak-to-peak jitter for 0.7-Gbps data rate | ||

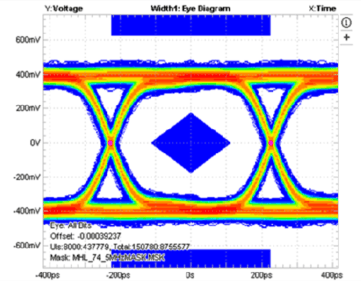

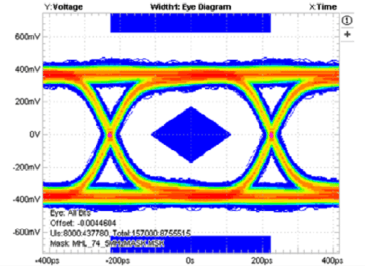

| The TS3USB3000 contributes only 3.8 ps of peak-to-peak jitter for 2.2-Gbps data rate |

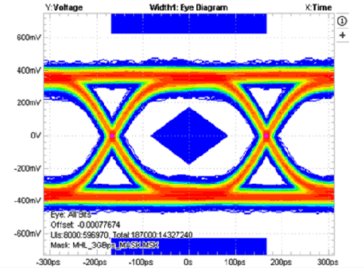

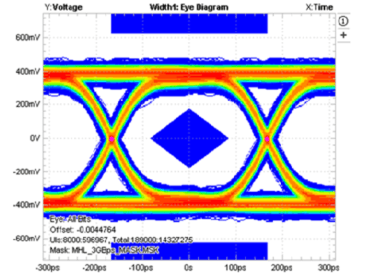

| The TS3USB3000 contributes only 5.8 ps of peak-to-peak jitter for 3-Gbps data rate | ||

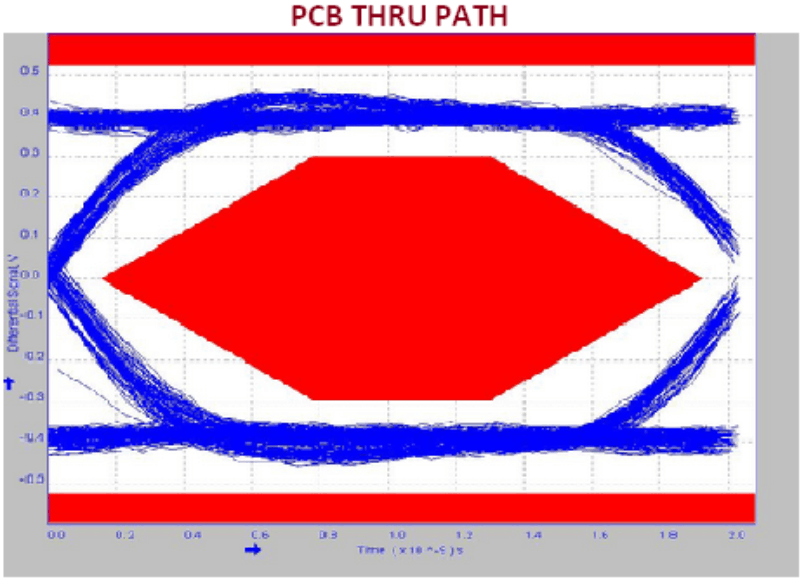

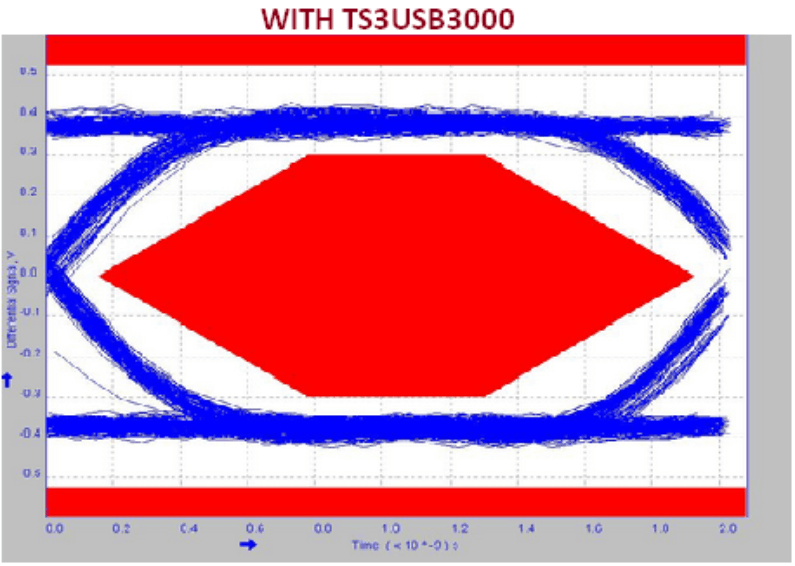

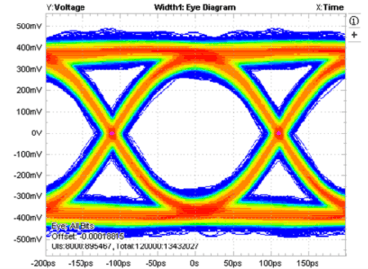

| The TS3USB3000 contributes only 7.6 ps of peak-to-peak jitter for 4.5-Gbps data rate | ||
Figure 17. Time Interval Error Histogram: 0.7 Gbps With No Device

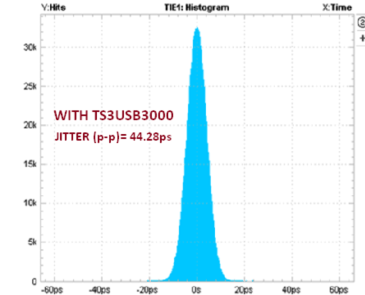

| The TS3USB3000 contributes only 8.4 ps of peak-to-peak jitter for 0.7-Gbps data rate |

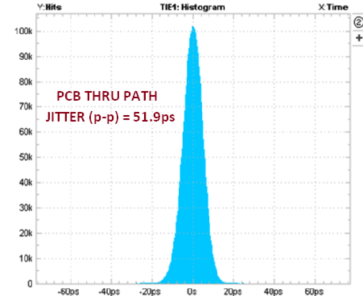

Figure 21. Time Interval Error Histogram: 2.2 Gbps With No Device
| The TS3USB3000 contributes only 3.8 ps of peak-to-peak jitter for 2.2-Gbps data rate |

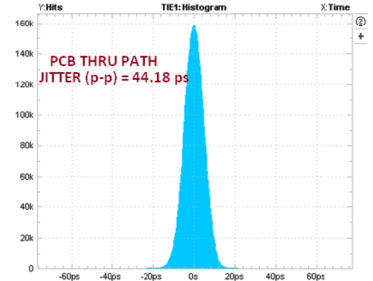

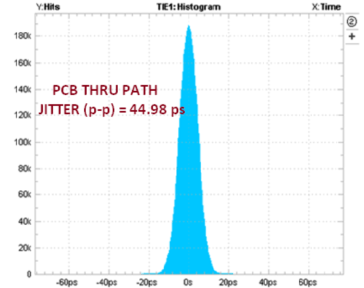

Figure 25. Time Interval Error Histogram: 3 Gbps With No Device

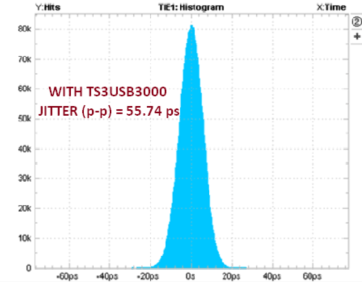

| The TS3USB3000 contributes only 5.8 ps of peak-to-peak jitter for 3-Gbps data rate |

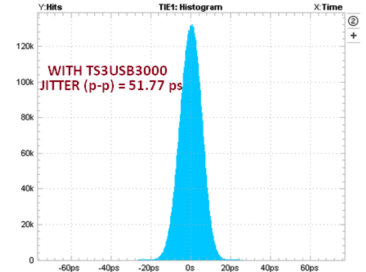

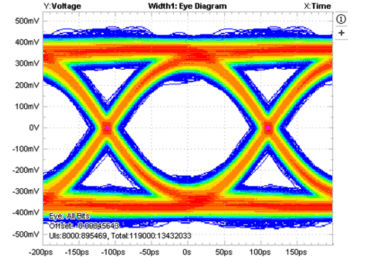

| The TS3USB3000 contributes only 7.6 ps of peak-to-peak jitter for 4.5-Gbps data rate |
