6 Parameter Measurement Information

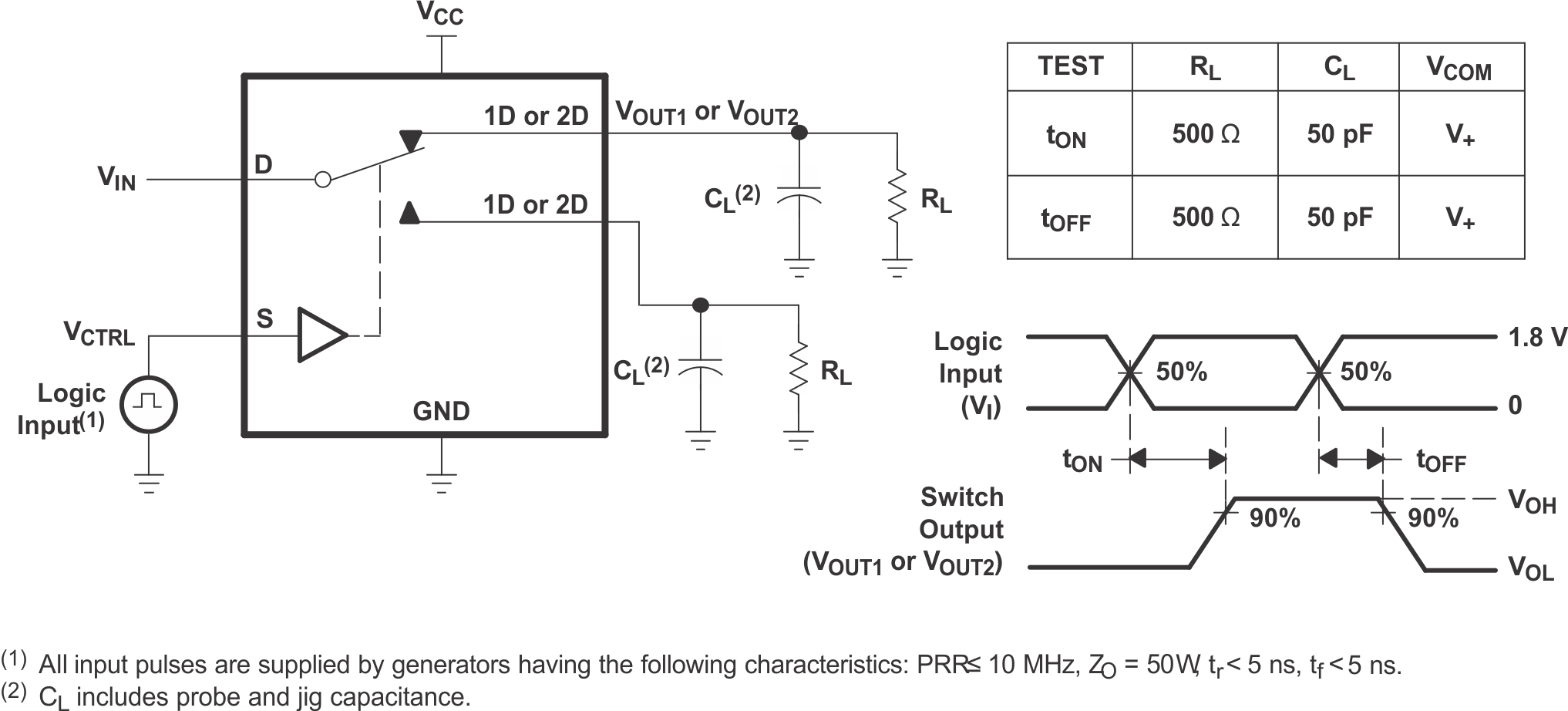

Figure 6-1 Turnon
(tON) and Turnoff Time (tOFF)

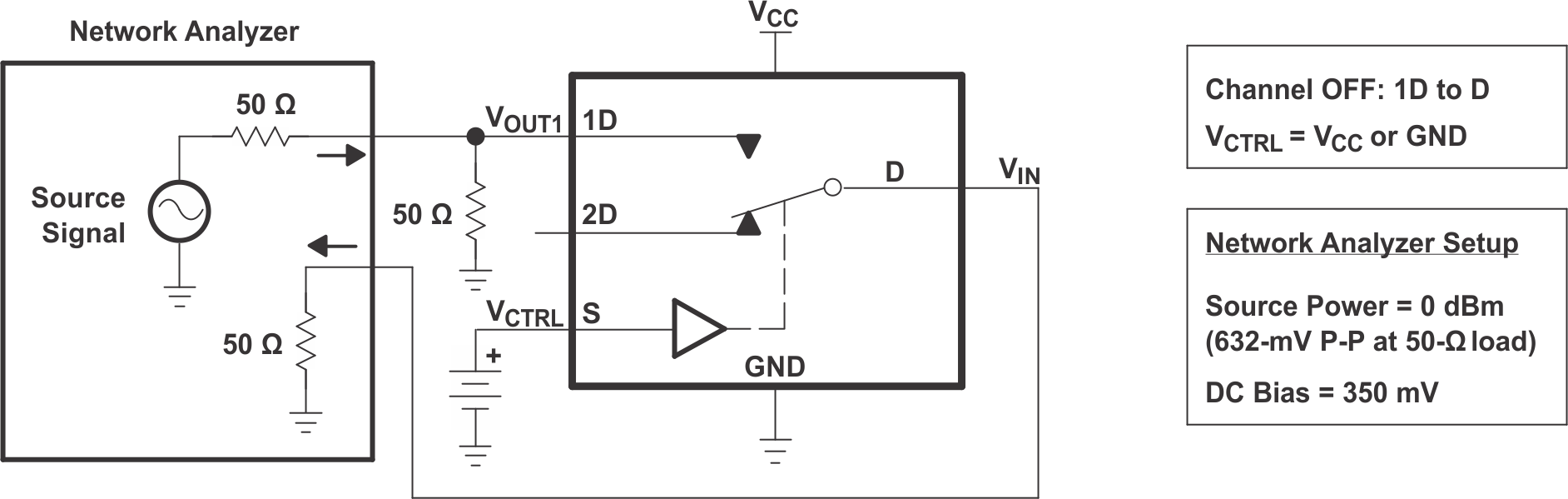

Figure 6-2 OFF
Isolation (OISO)

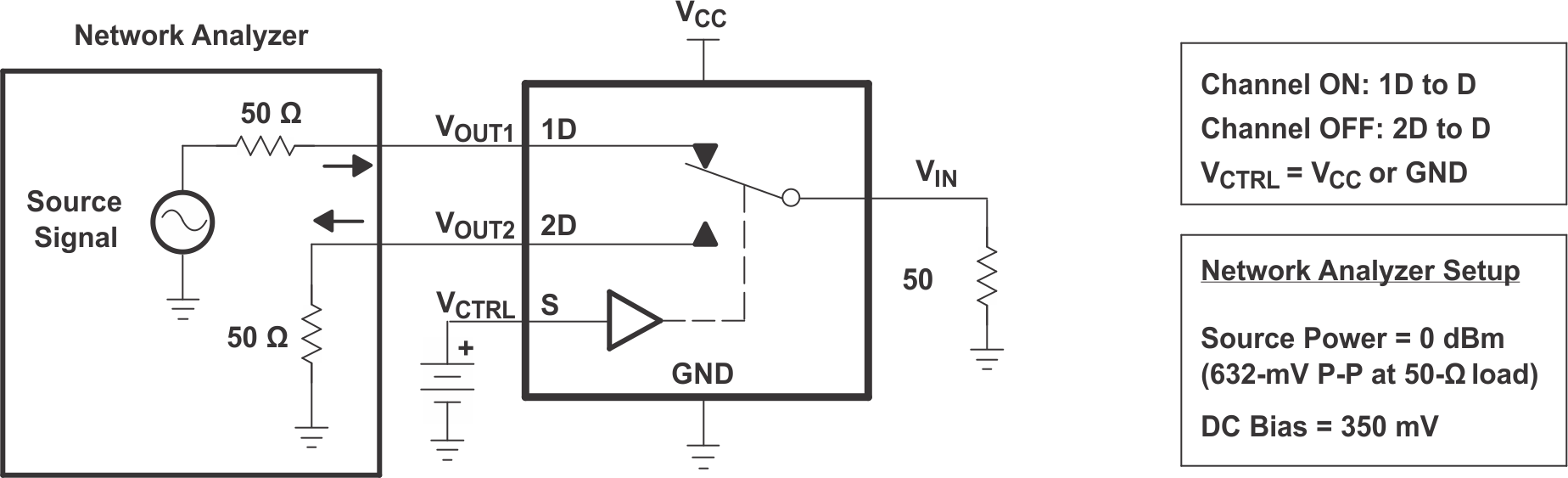

Figure 6-3 Crosstalk
(XTALK)

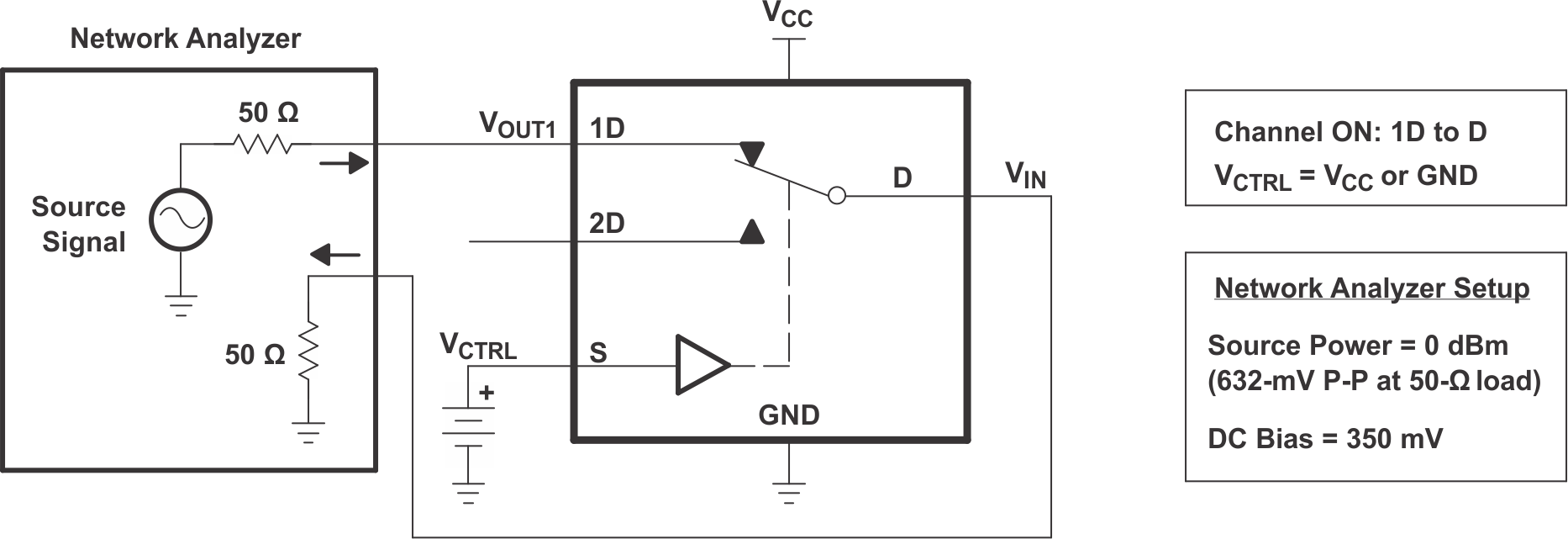

Figure 6-4 Bandwidth
(BW)

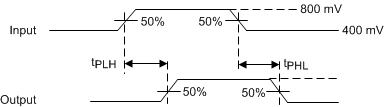

Figure 6-5 Propagation Delay

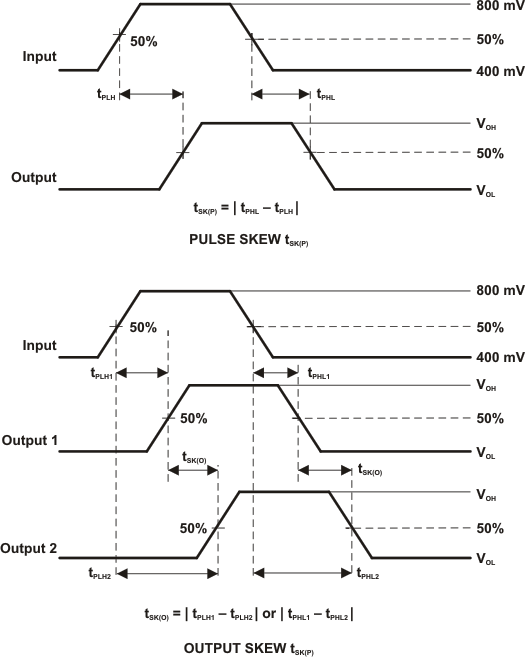

Figure 6-6 Skew
Test

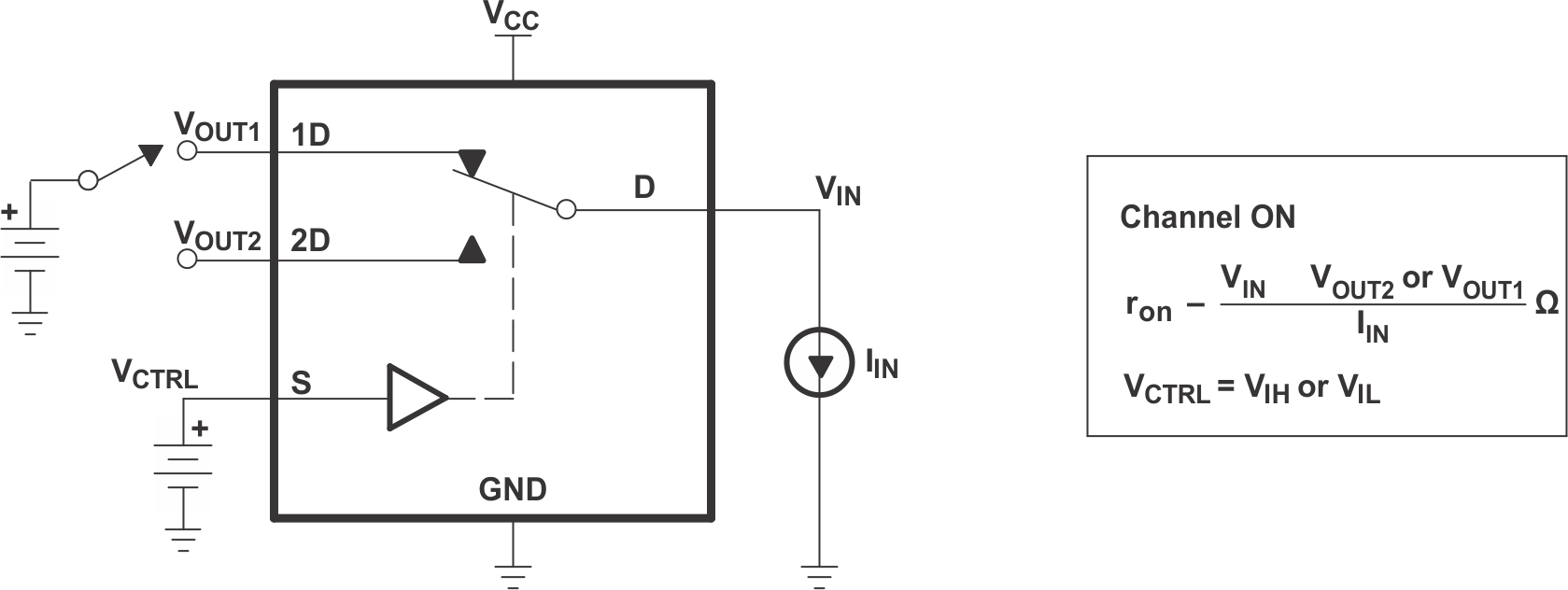

Figure 6-7 ON-State
Resistance (ron)

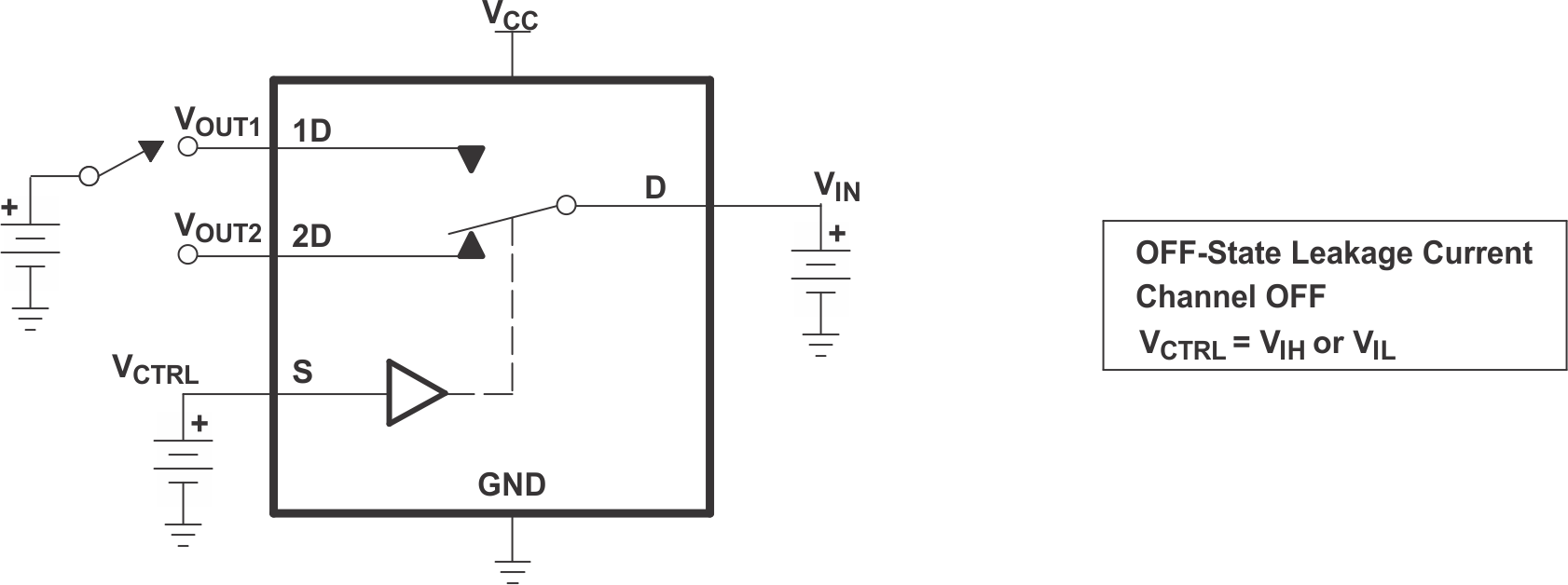

Figure 6-8 OFF-State
Leakage Current
Figure 6-9 Capacitance
