7 Parameter Measurement Information
Figure 7-1 ON-State
Resistance
Figure 7-2 OFF-State
Leakage Current (INC(OFF), INC(PWROFF),
INO(OFF), INO(PWROFF), ICOM(OFF),
ICOM(PWROFF))
Figure 7-3 ON-State
Leakage Current (ICOM(ON), INC(ON),
INO(ON))
Figure 7-4 Capacitance CI, CNC(OFF), CNO(OFF),
CNC(ON), CNO(ON))
A. All input pulses are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 ?, tr < 5 ns, tf < 5 ns.
B. CL includes probe and
jig capacitance.
Figure 7-5 Turn-On
(tON) and Turn-Off Time (tOFF)
A. All input pulses are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 ?, tr < 5 ns, tf < 5 ns.
B. CL includes probe and
jig capacitance.
Figure 7-6 Break-Before-Make Time (tBBM)
Figure 7-7 Bandwidth
(BW)

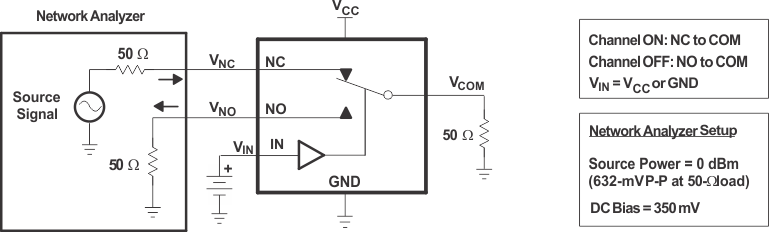

Figure 7-8 OFF
Isolation (OISO)
Figure 7-9 Crosstalk
(XTALK)
A. All input pulses are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 ?, tr < 5 ns, tf < 5 ns.
B. CL includes probe and
jig capacitance.
Figure 7-10 Charge
Injection (QC)
A. CL includes probe and
jig capacitance.

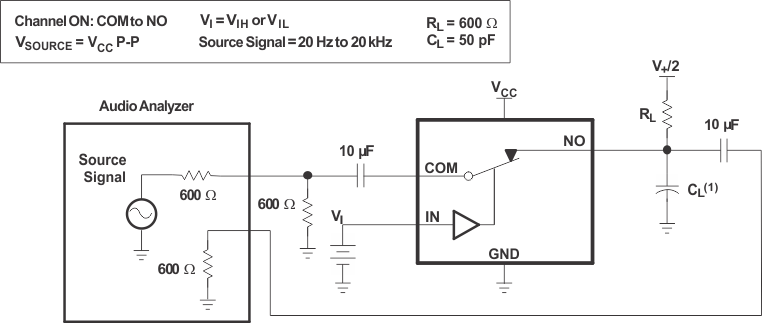

Figure 7-11 Total
Harmonic Distortion (THD)
