6.11 Typical Characteristics

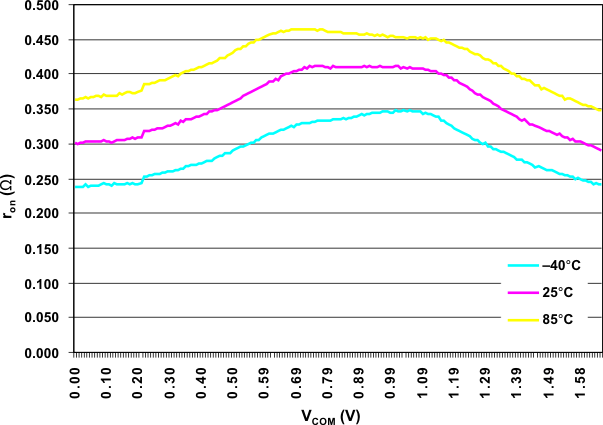

Figure 6-1 ron vs VCOM (VCC = 1.65 V)
Figure 6-3 ron vs VCOM (VCC = 2.7 V)

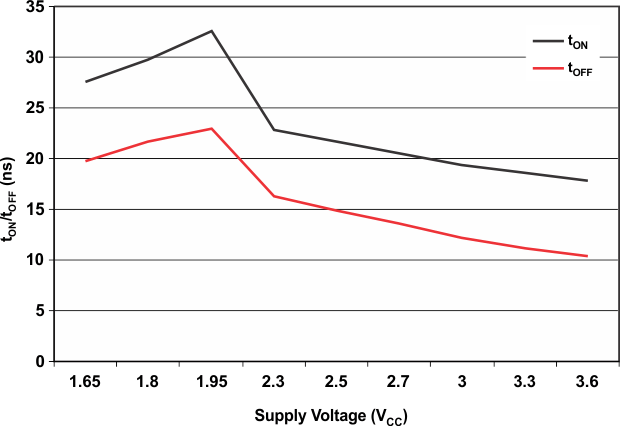

Figure 6-5 tON and tOFF vs Supply Voltage (TA =
25°C)

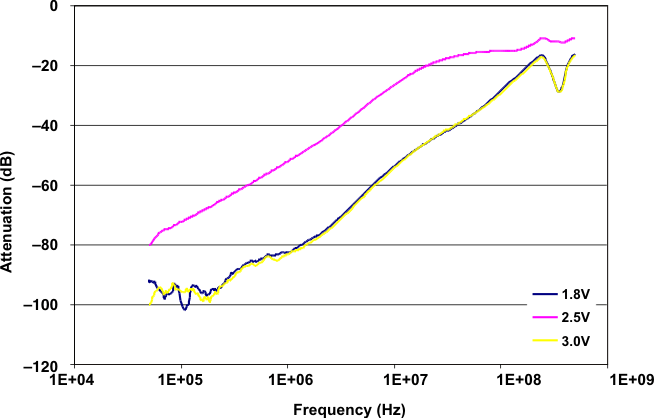

Figure 6-7 OFF
Isolation

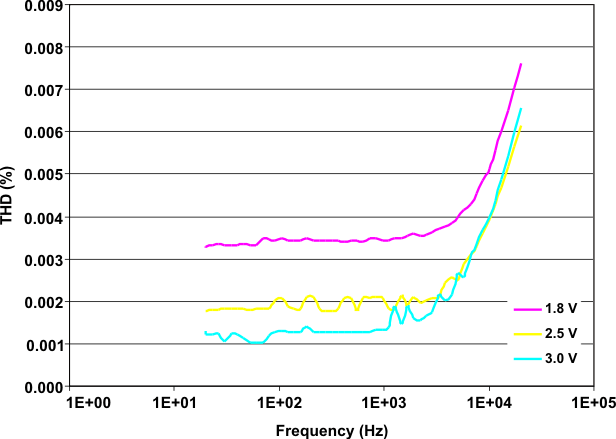

Figure 6-9 Total
Harmonic Distortion vs Frequency

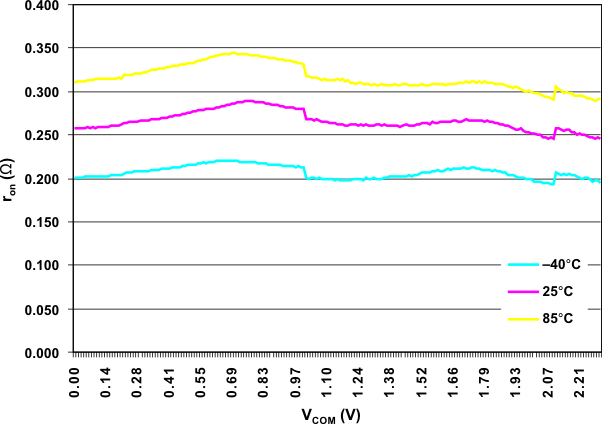

Figure 6-2 ron vs VCOM (VCC = 2.3 V)
Figure 6-4 Charge Injection (QC) vs VCOM (TA =
25°C)

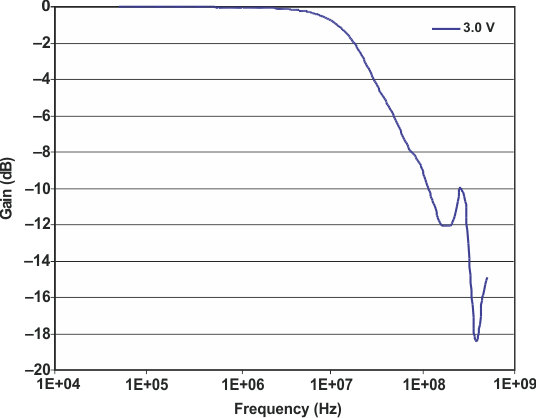

Figure 6-6 Bandwidth

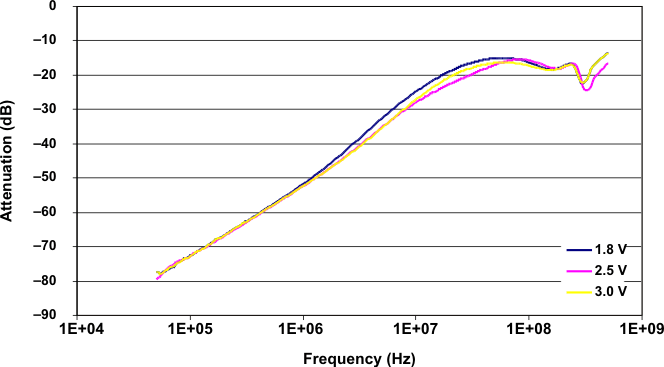

Figure 6-8 Crosstalk
