ZHCSIO9A August 2018 – June 2021 TPSM831D31
PRODUCTION DATA

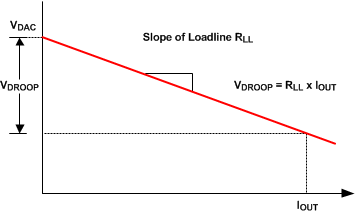

Figure 7-3 Load LineThe loadline can be set with VOUT_DROOP register via PMBus. The programmable range for channel A is between 0 m? and 3.125 m? with 64 options, and the range for channel B is between 0 m? and 0.875 m? with 16 options to fulfill the requirements for different applications. See Table 7-27 for the DC load line settings.
