10.3 Theta JA versus PCB Area
The amount of PCB copper affects the thermal performance of the device. Figure 10-4 shows the effects of copper area on the junction-to-ambient thermal resistance (RθJA) of the TPSM53603. The junction-to-ambient thermal resistance is plotted for a 4-layer PCB with PCB area from 30 cm2 to 80 cm2.
To determine the required copper area for an application:
- Determine the maximum power dissipation of the device in the application by referencing the power dissipation graphs in Section 6.6 through Section 6.9.
- Calculate the maximum RθJA using Equation 3 and the maximum ambient temperature of the application.
Equation 3.
- Reference Figure 10-4 to determine the minimum required PCB area for the application conditions.

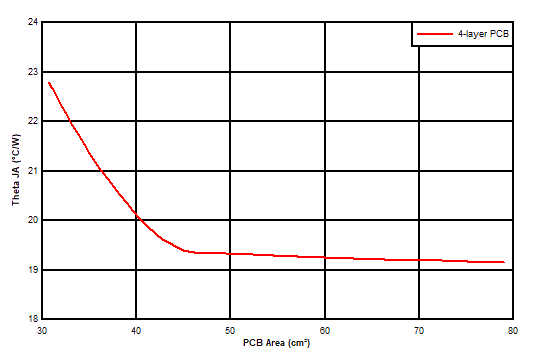

Figure 10-4 RθJA versus PCB Area (per Layer)
