7.3.6.1.3 Configuration 1: Dual Phase, Primary Sync-Out Clock to Secondary
- Direct SYNC, VSHARE, and ISHARE connections between primary and secondary
- Switching frequency is set by RT pin of primary, and pass to secondary through SYNC pin. SYNC pin of primary will be configured as sync out by its MODE pin.
- Secondary receives clock from SYNC pin. Its RT pin determines the sync point for clock phase shift.

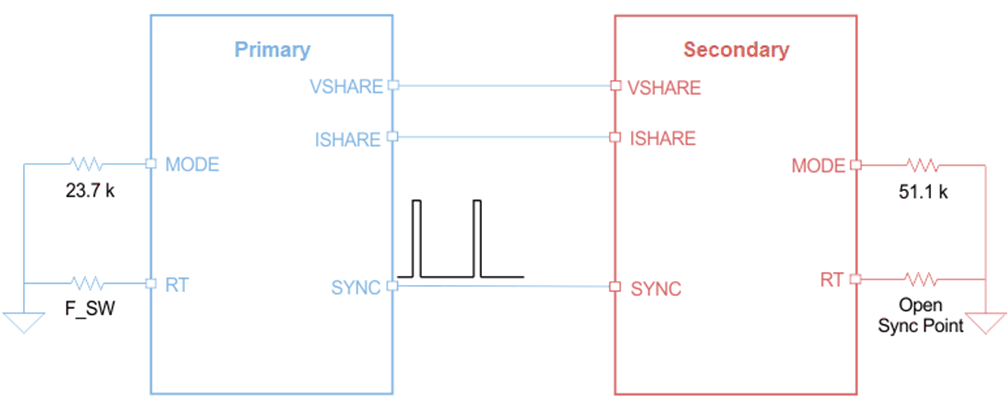

Figure 7-4 2-Phase Stackable, 180° Phase Shift: Primary
Sync-Out Clock to Secondary
