ZHCSDR0 April 2015 TPS92513 , TPS92513HV

PRODUCTION DATA.

封裝選項

7 Specifications

7.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted) ⁽¹⁾

			MIN	MAX	UNIT
	Input voltage	VIN (TPS92513HV)	–0.3	65	V
		VIN (TPS92513)	–0.3	45
		PDIM, UVLO	–0.3	5
		BOOT		(PH + 8)
		ISENSE, IADJ, COMP	–0.3	3
		RT/CLK	–0.3	3.6
	Output voltage	PH (TPS92513HV)	–0.6	65	V
		PH (TPS92513)	–0.6	45
		PH, 10-ns Transient	–2
	Voltage Difference	PAD to GND		±200	mV
	Source Current	PH		Current Limit	A
	Sink current	VIN		Current Limit	A
	Sink current	BOOT		1	mA
T_J	Operating junction temperature		–40	150	°C
T_stg	Storage temperature		–65	150	°C

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

7.2 ESD Ratings

			VALUE	UNIT
V_(ESD)	Electrostatic discharge	Human-body model (HBM),ESD stress voltage⁽¹⁾	±2000	V
V_(ESD)	Electrostatic discharge	Charged-device model (CDM), ESD stress voltage⁽²⁾	±500	V

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. Manufacturing with less than 500-V HBM is possible with the necessary precautions. Pins listed as ±2 kV may actually have higher performance.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Manufacturing with less than 250-V CDM is possible with the necessary precautions. Pins listed as ±500 V may actually have higher performance.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)

		MIN	MAX	UNIT
VIN	Input voltage (TPS92513HV)	4.5	60	V
VIN	Input voltage (TPS92513)	4.5	42	V
f_SW	Switching frequency range using RT mode	100	2000	kHz
f_SW	Switching frequency range using CLK mode	300	2000	kHz
t_MIN(RT/CLK)	Minimum RT/CLK input pulse width for switching frequency synchronization	51		ns
T_J	Operating junction temperature	–40	125	°C

7.4 Thermal Information

THERMAL METRIC⁽¹⁾		TPS92513 TPS92513HV	UNIT
THERMAL METRIC⁽¹⁾		DGQ (10 PINS)	UNIT
R_θJA	Junction-to-ambient thermal resistance	66.7	°C/W
R_θJC(top)	Junction-to-case (top) thermal resistance	45.8
R_θJB	Junction-to-board thermal resistance	37.5
ψ_JT	Junction-to-top characterization parameter	1.8
ψ_JB	Junction-to-board characterization parameter	37.1
R_θJC(bot)	Junction-to-case (bottom) thermal resistance	15.4

(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

7.5 Electrical Characteristics

–40°C ≤ T_J ≤ 125°C, V_VIN = 12V (unless otherwise noted)

PARAMETER		TEST CONDITIONS	MIN	TYP	MAX	UNIT
SUPPLY VOLTAGE (VIN)
VIN_UVLO	VIN undervoltage lockout threshold	No voltage hysteresis, rising and falling		2.94		V
I_VINSD	Shutdown supply current	V_UVLO = 0 V, 4.5 V ≤ V_VIN ≤ 42 V (60 V for HV)			11.5	µA
I_VIN	Non-switching supply current	V_ISENSE = 220 mV, 4.5V ≤ V_VIN ≤ 42 V (60 V for HV)		337	407	µA
UNDER VOLTAGE LOCKOUT (UVLO)
V_UVLO	UVLO threshold voltage	Rising threshold	1.12	1.22	1.30	V
	UVLO pin source current	V_UVLO = 1.5 V (device enabled)		3.97		µA
	UVLO pin source current	V_UVLO = 1 V (device disabled)		1.05		µA
ANALOG CURRENT ADJUST (V_IADJ, V_ISENSE)
V_IADJ	IADJ clamp voltage	I_IADJ = 1 µA		1.8		V
V_IADJ	IADJ clamp voltage	I_IADJ = 100 µA		2.77		V
V_ISENSE	Current sense voltage	V_IADJ = 1.2 V, T_J = 25°C to 125°C	191	200	210	mV
		V_IADJ = 0.18 V, T_J= 25°C to 125°C	21.4	30.0	40.0
		I_IADJ = 1 µA, T_J= 25°C to 125°C	285	300	309
		I_IADJ = 100 µA, T_J = 25°C to 125°C	286	300	309
	Current sense voltage level	180 mV ≤ V_IADJ ≤ 1.8V		V_IADJ/6
HIGH-SIDE MOSFET (BOOT, PH)
R_DS(on)	On-resistance	V_VIN = 4.5 V, (V_BOOT – V_PH) = 3.5 V		255		mΩ
R_DS(on)	On-resistance	(V_BOOT – V_PH) = 6 V		220	375	mΩ
V_BOOT	BOOT-PH voltage	VPDIM = 3V		6		V
I_BOOT	BOOT-PH current	VPDIM = 0V, (V_BOOT – V_PH) = 5V		93.9		µA
V_BOOTUV	BOOT-PH under voltage lockout	Rising threshold		2.25	2.81	V
V_BOOTUV	BOOT-PH under voltage lockout	Falling threshold	1.42	1.99		V
t_ON(min)	Minimum on time	V_COMP = 0		140		ns
ERROR AMPLIFIER (ISENSE, COMP)
	Input bias current	V_ISENSE = 200 mV		20		nA
g_M(ea)	Transconductance gain	V_IADJ = 1.2 V, 180 mV < V_ISENSE < 220 mV, V_COMP = 1 V		331		µA/V
	DC gain	V_IADJ = 1.2 V , V_ISENSE = 0.2 V		10		kV/V
	Bandwidth			2.7		MHz
	Source/sink current	V_IADJ = 1.2 V , V_COMP = 1 V, V_ISENSE = 200 mV ± 100 mV		±28		µA
CURRENT LIMIT
	Current limit threshold			6		A
THERMAL SHUTDOWN
T_SD	Thermal shutdown			165		°C
	Thermal shutdown hysteresis			20		°C
TIMING RESISTOR AND EXTERNAL CLOCK (RT/CLK)
V_RT	RT/CLK regulated voltage	R_RT = 200 kΩ	474	500	513	mV
f_SW	Switching frequency	V_VIN = 6 V, R_RT = 200 kΩ	447	557	648	kHz
	RT/CLK high threshold	V_VIN = 6 V		1.49	1.81	V
	RT/CLK low threshold	V_VIN = 6 V	0.63	1.02		V
PWM DIMMING (PDIM)
I_PDIM	PDIM source current	V_PDIM = 0		1.04		µA
V_IH	High-level input voltage			1.34	1.45	V
V_IL	Low-level input voltage		0.79	0.88		V

7.6 Timing Requirements

			NOM	UNIT
TIMING RESISTOR AND EXTERNAL CLOCK (RT/CLK)
	RT/CLK falling edge to PH rising edge delay	Measured at 500 kHz with RT resistor in series, V_VIN = 6 V	92.1	ns
	Phase loop (PLL) lock-in time	f_SW = 500 kHz	100	µs
PWM DIMMING (PDIM)
t_RISE	Rising propagation delay		305	ns
t_FALL	Falling propagation delay		535	ns

7.7 Typical Characteristics

VIN = 24V, Unless otherwise specified

1.5 A LED Current	4 LEDs in Series	V_IADJ = 1.8 V
f_SW = 570 kHz	V_OUT = 13.1 V

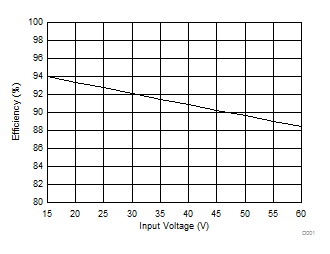

Figure 1. Efficiency vs Input Voltage

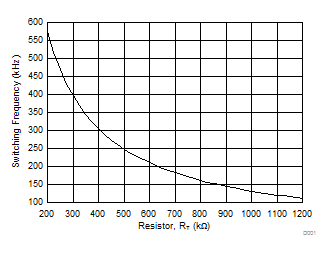

Figure 3. Switching Frequency vs RT Resistor

1.5 A LED Current	3 LEDs in Series
	V_OUT = 9.9 V

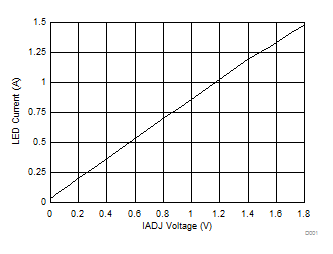

Figure 5. LED Current vs IADJ Voltage

V_IN = 12 V

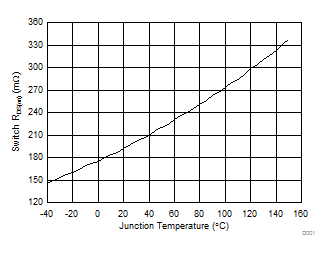

Figure 7. PH Switch R_DS(on) vs Junction Temperature

V_VIN = 12 V

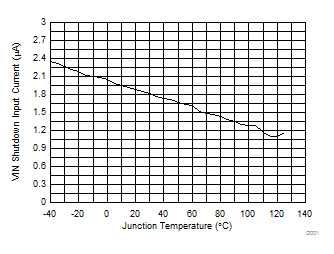

Figure 9. Shutdown Input Current vs Junction Temperature

1.5 A LED Current	3 LEDs in Series	V_IADJ = 1.8 V
	V_OUT = 9.9 V

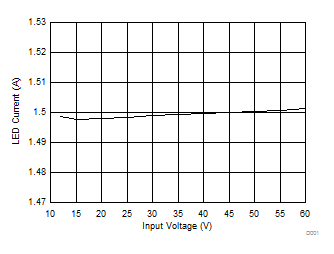

Figure 2. Line Regulation

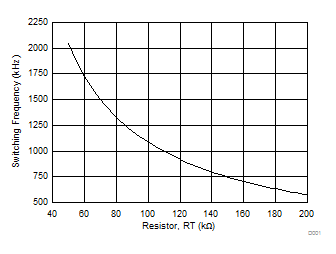

Figure 4. Switching Frequency vs RT Resistor

1.5 A LED Current	3 LEDs in Series	V_IADJ = 1.8 V
250 Hz PWM Frequency	V_OUT = 9.9 V

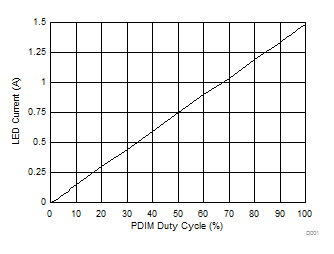

Figure 6. LED Current vs PDIM Duty Cycle

V_IADJ = 1.8 V

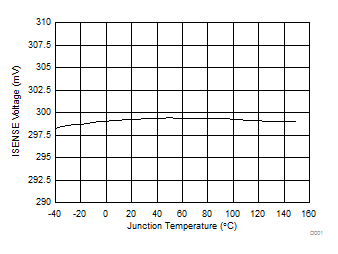

Figure 8. V_ISENSE vs Junction Temperature

T_J = 25°C

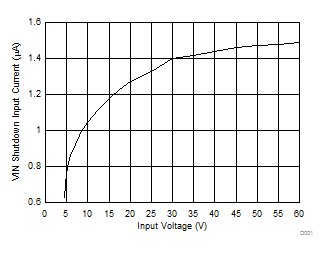

Figure 10. Shutdown Input Current vs Input Voltage
