6 Pin Configuration and Functions

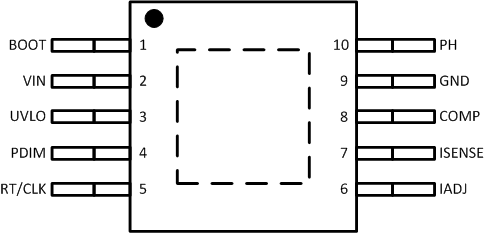

DGQ (HVSSOP) Package
Top View
Pin Functions
| PIN | TYPE(1) | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| BOOT | 1 | O | A bootstrap capacitor is required between BOOT and PH. If the voltage on this capacitor is below the minimum required by the output device, the output is forced to switch off until the capacitor is recharged. |
| COMP | 8 | O | Error amplifier output, and input to the output switch current comparator. Connect frequency compensation components to this pin. |
| GND | 9 | G | Ground. |
| IADJ | 6 | I | Analog current adjust pin. The voltage applied to this pin will set the current sense (ISENSE pin) voltage. The range of the ADJ pin is 180 mV to 1.8 V and the corresponding ISENSE pin voltage is the IADJ pin voltage divided by 6. |
| ISENSE | 7 | I | Inverting node of the transconductance (gM) error amplifier. |
| PDIM | 4 | I | PWM dimming input pin. The duty cycle of the PWM signal linearly controls the average output current of the converter. |
| PH | 10 | O | The source of the internal high-side MOSFET. |
| PowerPAD | PAD | G | GND pin must be electrically connected to the exposed pad directly beneath the device on the printed circuit board for proper operation. |
| RT/CLK | 5 | I | Resistor timing and external clock. An internal amplifier holds this pin at a fixed voltage when using an external resistor to ground to program the switching frequency. If the pin is pulled above the PLL upper threshold, a mode change occurs and the pin becomes a synchronization input. The internal amplifier is disabled and the pin becomes a high impedance clock input to the internal PLL. If the clocking edges stop, the internal amplifier is re-enabled and the mode returns to the resistor-programmed function. |
| UVLO | 3 | I | Adjustable undervoltage lockout. Set with resistor divider from VIN. |
| VIN | 2 | P | Input supply voltage, 4.5V to 42V or 4.5V to 60V for the HV version. |
(1) I = Input, O = Output, P = Supply, G = Ground
