6.6 Typical Characteristics (VIN = 5 V)
The electrical characteristic data has been developed from actual products tested at 25°C. This data is considered typical for the converter. Applies to Figure 1, Figure 2, and . The temperature derating curves represent the conditions at which internal components are at or below the manufacturer's maximum operating temperatures. Derating limits apply to devices soldered directly to a 100 mm × 100 mm double-sided PCB with 1 oz. copper. Applies to Figure 4.

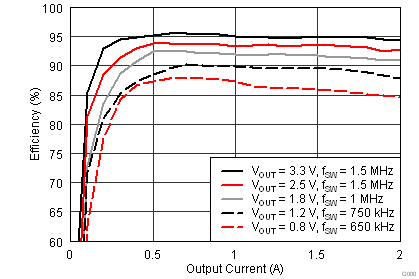

Figure 1. Efficiency vs. Output Current

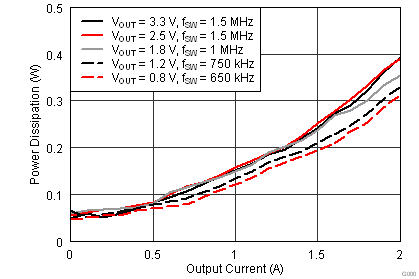

Figure 3. Power Dissipation vs. Output Current

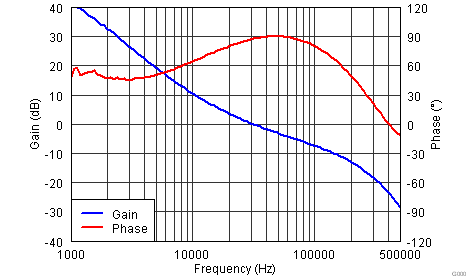

Figure 5. VOUT= 1.8 V, IOUT= 2 A, COUT1= 47 µF ceramic, COUT2= 100 µF POSCAP, fSW= 1 MHz

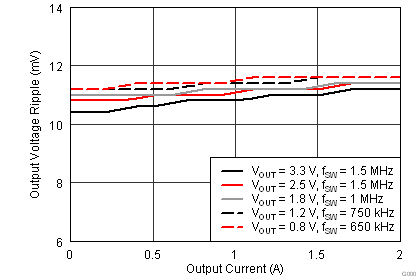

Figure 2. Voltage Ripple vs. Output Current

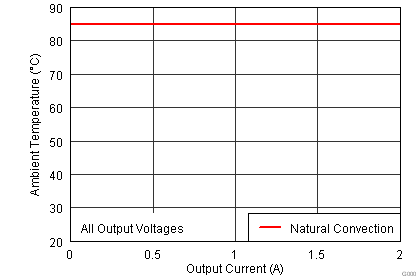

Figure 4. Safe Operating Area
