10.2.1.3 Application Curve
Figure 10-3 shows the first eFuse being enabled. Figure 10-4 shows the first eFuse being powered down and the second device being powered up (switch from primary to secondary power). The less time both switches are turned-off, the less droop on VOUT.

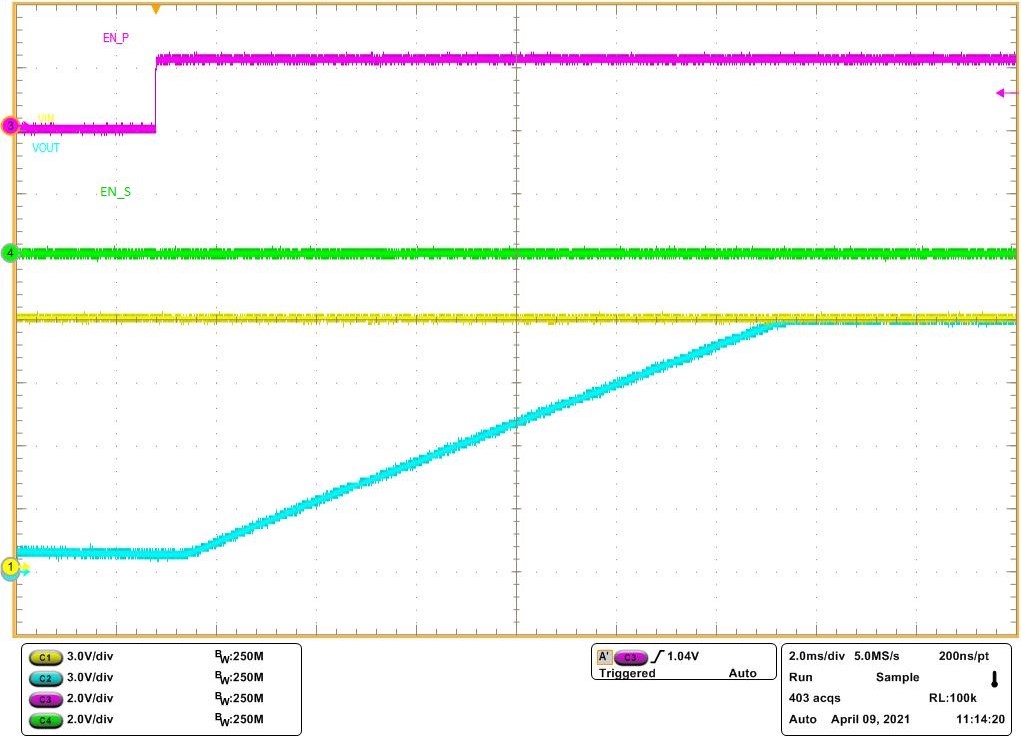

Figure 10-3 Power-Up
Behavior of Primary TPS7H2211 in a Cold Sparing Application

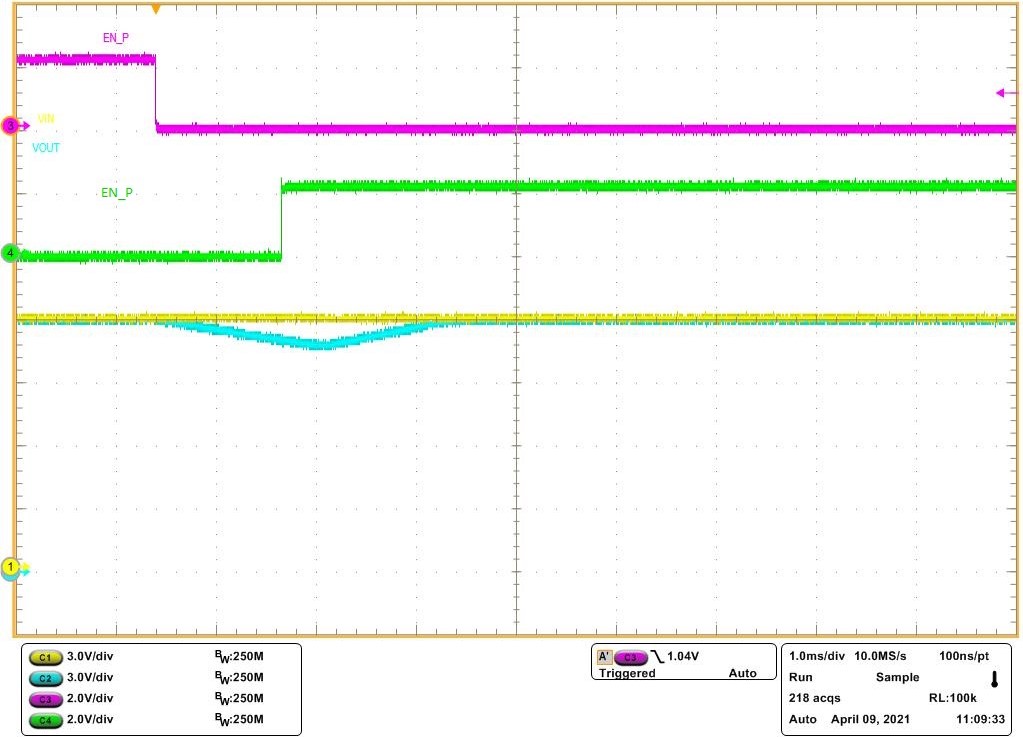

Figure 10-4 Switch
From
Primary to Secondary TPS7H2211 in a Cold Sparing
Application
