8.2.1 Low-Input, Low-Output (LILO) Voltage Conditions
This section discusses the implementation of the TPS7A84 using the ANY-OUT configuration to regulate a 3.0-A load requiring good PSRR at high frequency with low-noise at 0.9 V using a 1.3-V input voltage and a 5.0-V bias supply. The schematic for this typical application circuit is provided in Figure 8-20.

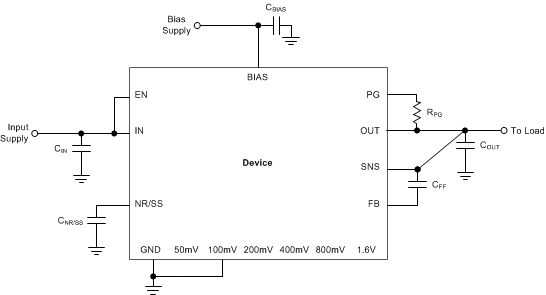

Figure 8-20 Typical Application
